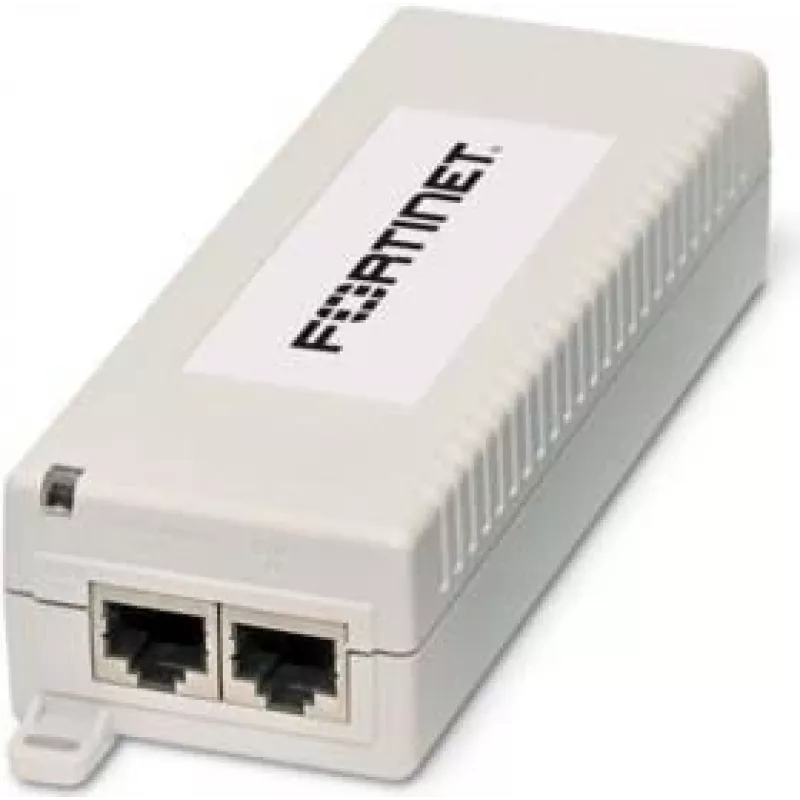

Fortinet GPI-115 Power over Ethernet -injektori, AC 100-240 V, 15,4 W, FortiAP 210B/220B -laitteille

Deploying FortiAP 210B or 220B access points in locations without PoE switches often means running separate power lines or installing new infrastructure. The Fortinet GPI-115 Power over Ethernet Injector eliminates that hassle by delivering both data and power over a single Ethernet cable, using the IEEE 802.3af standard.

Who is it for

Network administrators and IT installers who need to power FortiAP 210B or 220B access points from a standard AC outlet, especially where PoE switches are not available.

Main features

• IEEE 802.3af PoE output (15.4 W, 48V DC) for compatible FortiAP models
• Supports Gigabit Ethernet data rates (10/100/1000 Mbps) for high-speed connectivity
• Universal AC input: 100-240 V, 50/60 Hz
• Compact desktop or wall-mountable design
• LED indicators for power and PoE status
• Built-in overload and short-circuit protection

Specifications

• Input voltage: AC 100-240 V, 50/60 Hz
• Output power: 15.4 W
• Output voltage: 48V DC
• PoE standard: IEEE 802.3af
• Data rate: Gigabit Ethernet (10/100/1000 Mbps)
• Ports: 1x RJ-45 data in, 1x RJ-45 data & power out
• Power pins used: 4/5 (+), 7/8 (-)
• Operating temperature: 0°C to 40°C
• Operating humidity: 10% to 90% non-condensing
• Compatibility: FortiAP 210B, FortiAP 220B

Tips

Place the injector near the access point to minimize cable length and ensure stable power delivery. Use Cat5e or better cabling for Gigabit speeds.
