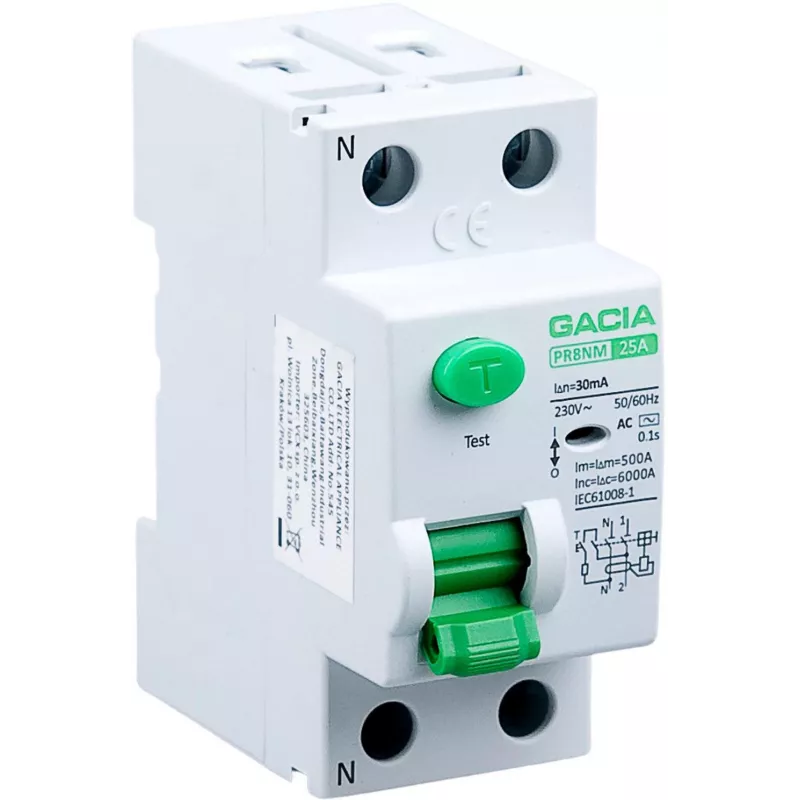

GACIA PR8NM 2P 25A 30mA A vikavirtasuojakytkin (RCD) 25A 30mA 2P tyyppi A

The GACIA PR8NM 2P 25A 30mA A is a high-quality Residual Current Device (RCD) designed to provide protection against indirect contact and additional protection in case of direct contact. With a rated current of 25A and a rated residual operating current of 30mA, this 2-pole Type A RCD ensures reliable safety in electrical installations. It is suitable for DIN rail mounting and complies with IEC/EN 61008-1 standards.

Advantages

This RCD offers enhanced safety with its Type A sensitivity, detecting both sinusoidal and pulsating DC fault currents. Its compact 2-pole design saves space in distribution boards, while the 6kA rated conditional short-circuit current ensures robust performance. The device is built for durability with an electrical life of 2000 cycles and mechanical life of 10000 cycles.

Suitable for

• Residential and commercial electrical panels
• Protection of circuits against earth faults
• Additional protection in case of direct contact

Key specifications

• Rated Current (In): 25 A
• Rated Residual Operating Current (IΔn): 30 mA
• Number of Poles: 2P
• RCD Type: Type A
• Rated Voltage (Ue): 230V AC
• Frequency: 50/60 Hz
• Mounting Type: DIN Rail
• Rated Conditional Short-Circuit Current (Inc): 6 kA
• Rated Impulse Withstand Voltage (Uimp): 4 kV
• Terminal Capacity: 16 mm²
• Operating Temperature Range: -25°C to +40°C
• Standards: IEC/EN 61008-1
• Electrical Life: 2000 cycles
• Mechanical Life: 10000 cycles
• Degree of Protection (IP): IP20

Recommendations

For optimal safety, ensure that the RCD is installed by a qualified electrician and tested regularly. Always verify compatibility with your existing electrical system.
