Gedore VDE 6036350 eristetty rengasavain 13 mm

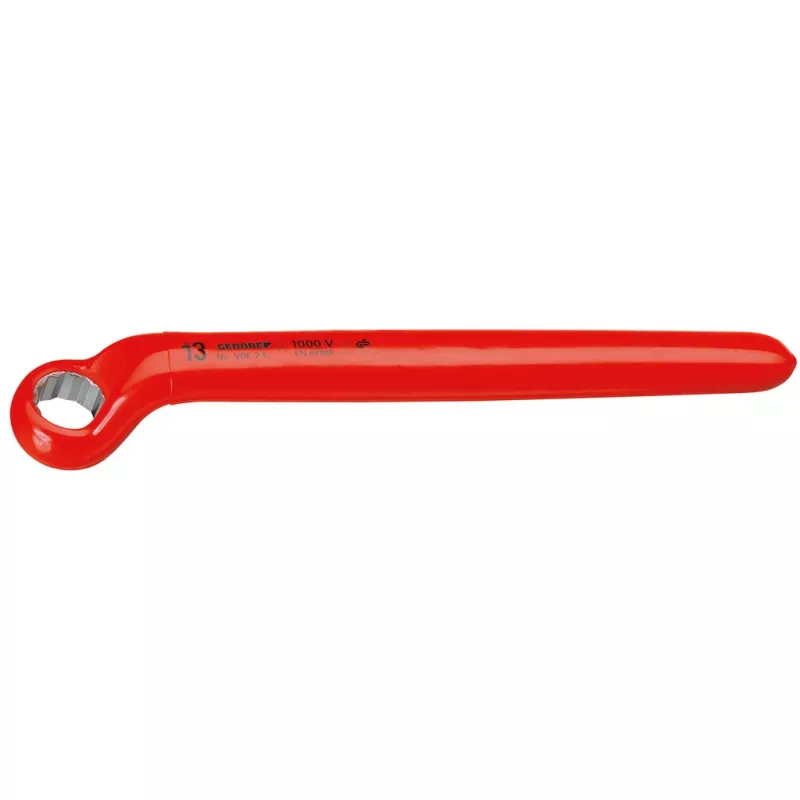

The Gedore VDE 6036350 ring spanner stands out through its dual-layer insulation, which is individually tested at 10,000 V to permit safe working on live components up to 1,000 V AC / 1,500 V DC. The 13 mm 12-point ring with 15° offset provides a secure grip in tight spaces, while the chrome-plated vanadium steel body ensures long-term durability.

Highlights

• VDE-insulated for live working up to 1,000 V AC / 1,500 V DC
• Individually tested at 10,000 V for added safety
• 12-point ring profile with 15° offset for better access
• Made from Gedore vanadium steel 31CrV3, chrome-plated
• Ergonomic two-layer insulation in red and yellow

In daily use

Electricians and maintenance technicians rely on this spanner when working on energized circuits. The 190 mm length provides good leverage, and the insulated handle prevents accidental contact. The 12-point design allows fine repositioning in confined areas, reducing the risk of rounding fasteners.

Full specifications

• Wrench type: Ring spanner (box-end)
• Nominal size: 13 mm
• Insulation standard: VDE (DIN EN 60900, IEC 60900)
• Max. AC operating voltage: 1000 V
• Max. DC operating voltage: 1500 V
• Material: Gedore Vanadium Steel 31CrV3
• Finish: Chrome-plated, insulated
• Ring profile: 12-point (UD profile)
• Ring offset angle: 15°
• Overall length: 190 mm
• Individual testing: Yes, each tool tested to 10,000V
• Insulation type: Two-layer, multi-component
• Insulation colour: Red / Yellow
• Application: Safe working on live electrical components
• Handle design: Ergonomic, insulated

Final note

With its individually tested insulation and precision 12-point ring, this Gedore spanner is a dependable choice for professional electrical work.
