GEDORE yhdistelmä-räikkäavain, vaihdettava, UD-profiili, 15 mm 2297329

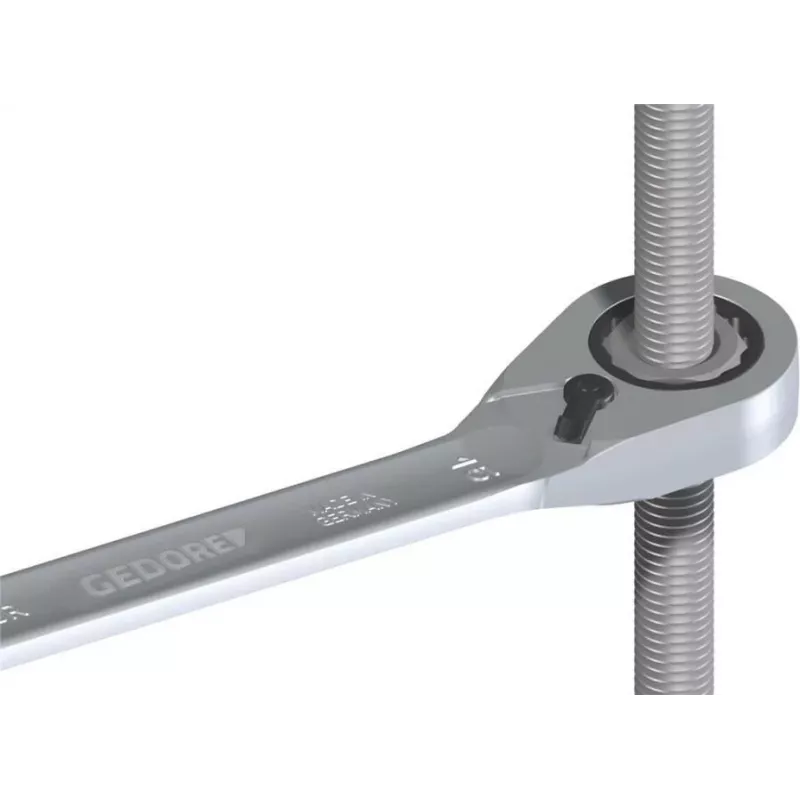

Professional mechanics and automotive technicians rely on the GEDORE combination ratchet spanner for precise fastening in tight engine bays and undercarriage work. The 15 mm open end and reversible ring ratchet deliver efficient torque transfer on hex fasteners, while the slim UD profile allows access in confined spaces.

Key specifications

• Size: 15 mm
• Wrench type: Combination ratchet spanner
• Ratchet type: Ring ratchet, reversible via lever
• Profile: UD (Unit Drive) for gentle force transmission
• Material: GEDORE vanadium steel 31CrV3
• Finish: Chrome-plated, polished head
• Ratchet teeth: 72
• Return angle: 5 degrees
• Overall length: 200 mm
• Open end head width: 32 mm
• Open end head thickness: 7.5 mm
• Ring end head width: 29 mm
• Ring end head thickness: 10 mm
• Standards: DIN 3113, ISO 3318

Why choose it

The 72-tooth ratchet mechanism allows a 5-degree return angle, making it possible to work in very tight spaces without removing the spanner from the fastener. The UD profile distributes force over a larger contact area, reducing the risk of rounding off nuts and bolts. Chrome plating provides corrosion resistance and easy cleaning.

Ideal use cases

• Automotive repair and maintenance
• Industrial machinery assembly
• Professional workshop use
• Applications requiring high torque and precise control

Good to know

The spanner is forged from GEDORE vanadium steel 31CrV3, heat-treated for durability and long service life. The reversible lever allows quick direction changes without repositioning the tool.
