Gembird A-HDMI-VGA-02 kaapeliadapteri VGA D-Sub musta

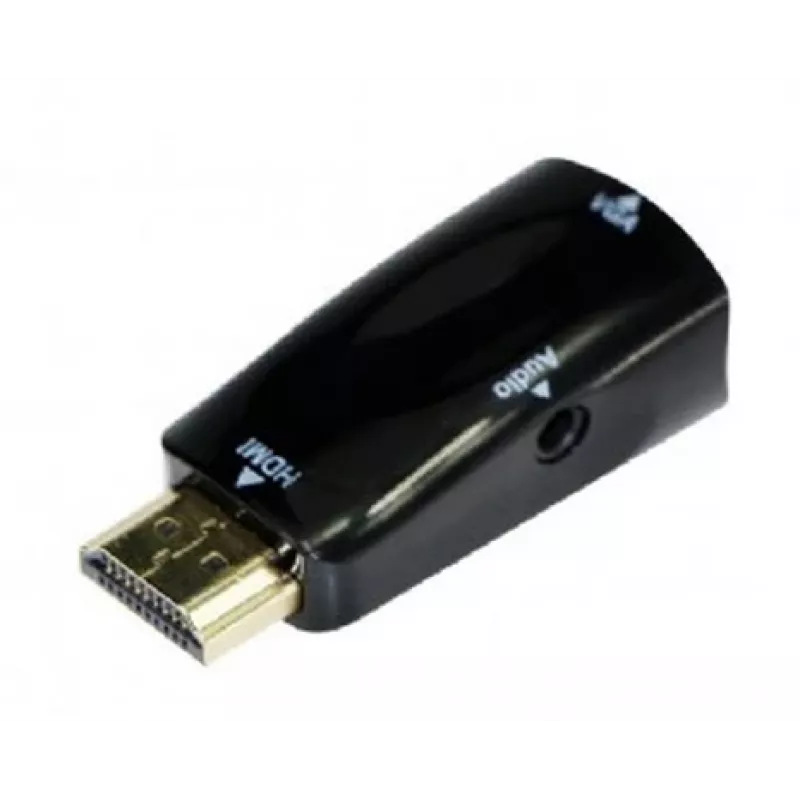

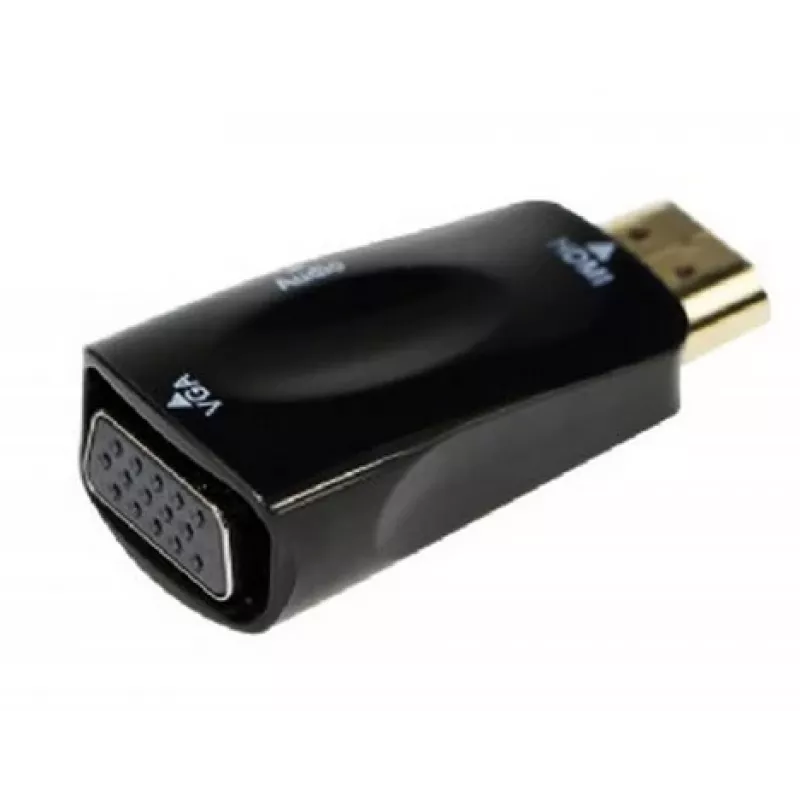

The Gembird A-HDMI-VGA-02 is a compact HDMI to VGA adapter in black that converts a digital HDMI signal to an analog VGA (D-Sub) output and provides a 3.5 mm audio output. It is intended for connecting HDMI sources such as laptops, media players or set-top boxes to VGA displays or projectors without requiring external power.

Advantages

This single‑port adapter supports up to 1920x1080@60Hz and is HDMI v1.4 compliant. Its small, lightweight housing makes it portable and easy to carry. No external power is required, and the integrated 3.5 mm audio output enables connection of speakers or headphones when the VGA display lacks audio input.

Suitable for

• Connecting laptops with HDMI output to VGA monitors or projectors
• Using media players or set-top boxes with VGA displays
• Temporary meeting-room and classroom A/V setups

Key specifications

• Brand: GEMBIRD
• Model: A-HDMI-VGA-02 (MPN: 3604822)
• Input connector: HDMI
• Output connector: VGA (D-Sub) + 3.5 mm audio
• Maximum supported resolution: 1920x1080 @ 60Hz
• HDMI version: 1.4 compliant
• Colour: Black
• Weight: 0.011 kg
• EAN: 8716309085915

How to use

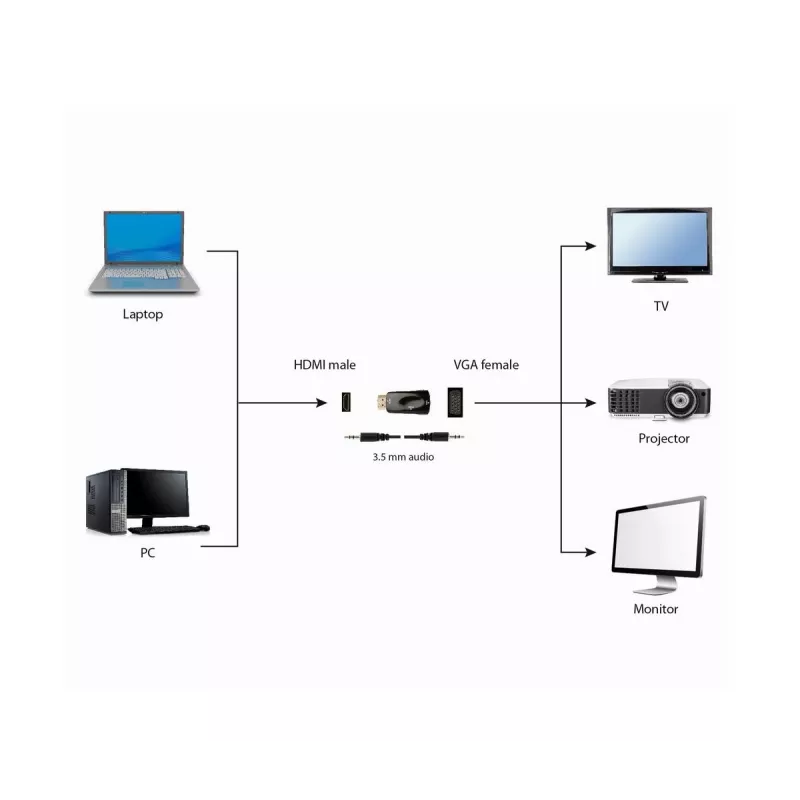

Plug the HDMI end into the HDMI output of your source device and connect the VGA cable from the adapter to the VGA input of the monitor or projector. If audio output is required, connect a 3.5 mm audio cable from the adapter to external speakers or headphones. Power on the source and the display; the adapter converts the digital HDMI signal to analog VGA automatically. Ensure the display input is set to the correct VGA source.

Recommendations

For best results, use a high‑quality VGA cable and set your source device to an output resolution supported by the display (up to 1920x1080@60Hz). The adapter does not upscale or downscale beyond the supported range; match output resolution to the monitor when possible.
