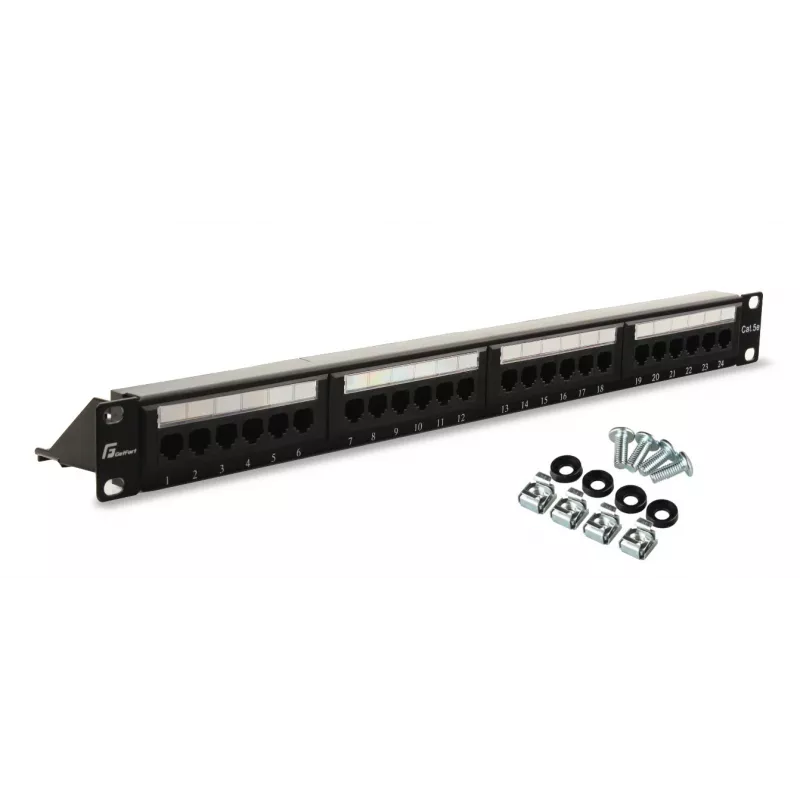

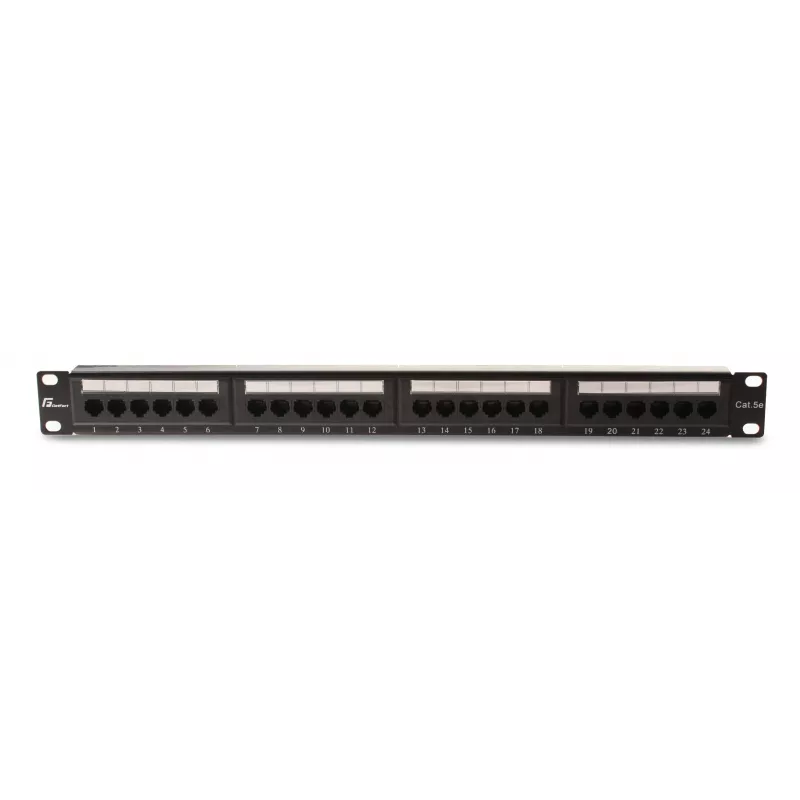

GETFORT PGF-5EUTP24-B4 Cat.5e UTP 24-porttinen patch-paneeli 1U 19 tuuman rack-asennus musta

The GETFORT PGF-5EUTP24-B4 is a high-performance Cat.5e unshielded patch panel designed for structured cabling in local area networks, data centers, and server rooms. With 24 RJ-45 ports in a compact 1U 19-inch rackmount form factor, this panel provides reliable connectivity for your network infrastructure. It supports TIA/EIA 568A and 568B wiring standards and features dual-standard IDC termination (110-type / Krone compatible) for easy installation. The robust SPCC steel housing and gold-plated contacts ensure long-term durability and signal integrity.

Advantages

This patch panel offers excellent value for 24-port Cat.5e UTP applications. Its dual-color wiring labels simplify termination, and the nickel-plated phosphor bronze connectors with 3-50 micron gold plating provide reliable, corrosion-resistant connections. The panel is backward compatible with Cat.5 and Cat.3 cabling, making it a versatile choice for network upgrades.

Suitable for

• Local Area Networks (LAN) requiring Cat.5e performance
• Data centers and server rooms with 19-inch racks
• Structured cabling installations in offices, schools, and commercial buildings
• Network upgrades from Cat.5 or Cat.3 to Cat.5e

Key specifications

• Product Type: Network Patch Panel
• Category Rating: Cat.5e
• Number of Ports: 24
• Shielding Type: UTP (Unshielded Twisted Pair)
• Mounting Type: 19-inch Rackmount, 1U
• Front Connector: RJ-45 (8P8C)

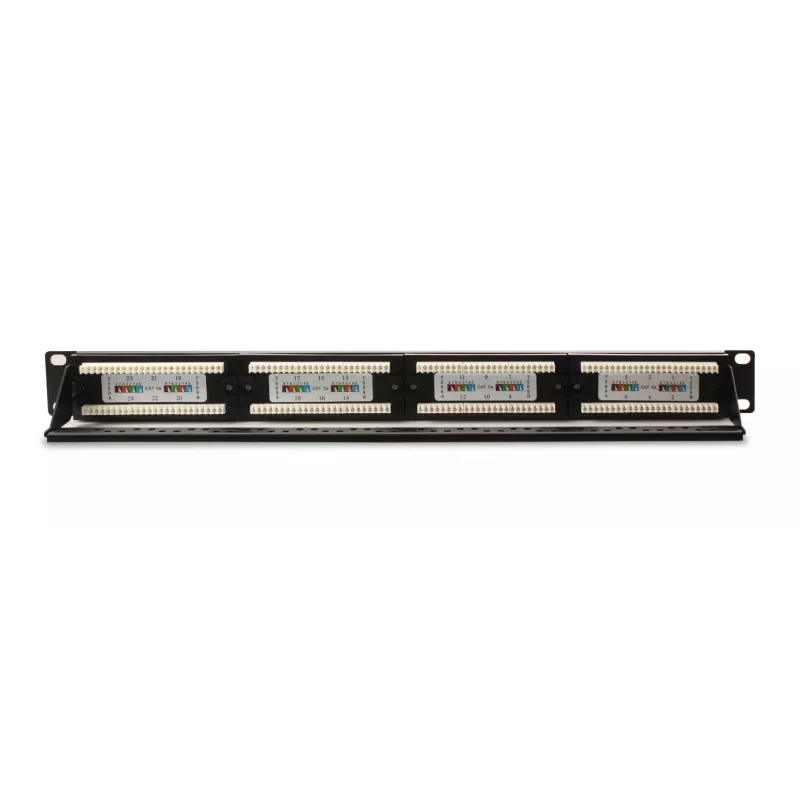

• Rear Termination: IDC (110-type / Krone compatible)
• Wiring Standard: TIA/EIA 568A & 568B
• Housing Material: SPCC Steel
• Connector Material: Phosphor Bronze with Nickel Plating
• RJ-45 Contact Plating: 3-50 micron Gold Plating
• Color: Black
• Operating Temperature: -10°C to 60°C
• Storage Temperature: -40°C to 70°C
• Operating Humidity: 10% to 90% RH (non-condensing)
• Certifications: RoHS, CE, ISO/IEC 11801, EN 50173

Recommendations

For optimal performance, use with Cat.5e or higher rated patch cables and ensure proper cable management. This panel is ideal for high-density patching in network closets and data centers.
