Gira 003302 TAE-liitäntärasia TAE 3x6 NFN, valkoinen

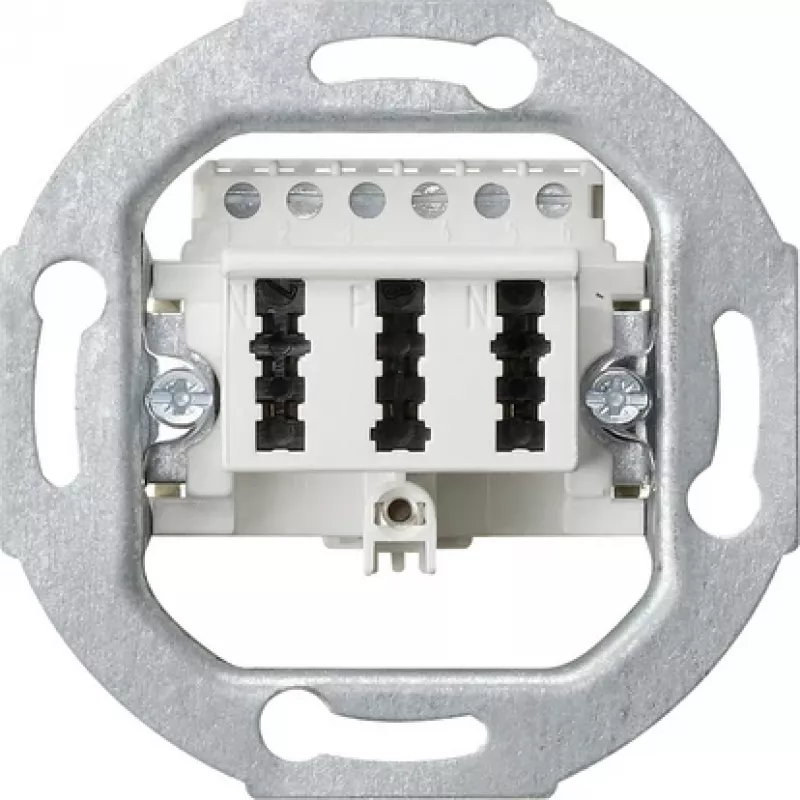

The Gira 003302 TAE insert offers a three-port connection solution for analog telephony, featuring one F-coded and two N-coded sockets in a single flush-mounted module. Unlike basic TAE sockets, this insert is designed to integrate seamlessly with Gira System 55 switch ranges, allowing a consistent look across your installation.

Highlights

• Three TAE ports: 1x F-coded, 2x N-coded
• 3x6 contact configuration (3 pairs, 6 contacts)
• Screw terminal connection
• Flush-mounted design for Gira System 55 frames
• Pure white (RAL 9010) thermoplastic construction

In daily use

This insert provides reliable connections for telephones, fax machines, and modems. The F-coded socket is intended for the primary device, while the two N-coded sockets allow additional devices without adapters. The shatterproof, UV-resistant material ensures durability in residential and commercial environments.

Full specifications

• Socket type: TAE (Telekommunikations-Anschluss-Einheit)
• Socket configuration: 1x F-coded, 2x N-coded
• Number of ports: 3
• Contact configuration: 3x6 (3 pairs, 6 contacts)
• Connection method: Screw terminals
• Mounting type: Flush-mounted
• Colour: Pure White (RAL 9010)
• Material: Thermoplastic (shatterproof, UV-resistant)
• Compatibility: Gira System 55 switch ranges (Standard 55, E2, Event, Esprit, ClassiX)
• Application: Analog telephony
• Protection rating: IP20
• Operating temperature range: -5°C to +45°C
• Relative humidity range: 5% to 93% (non-condensing)
• Standard: DIN 41715
• Design: Insert (Einsatz) for central plate
• Number of modules: 1

Final note

A versatile TAE insert for structured cabling in Gira System 55 installations, offering three sockets in one compact module.
