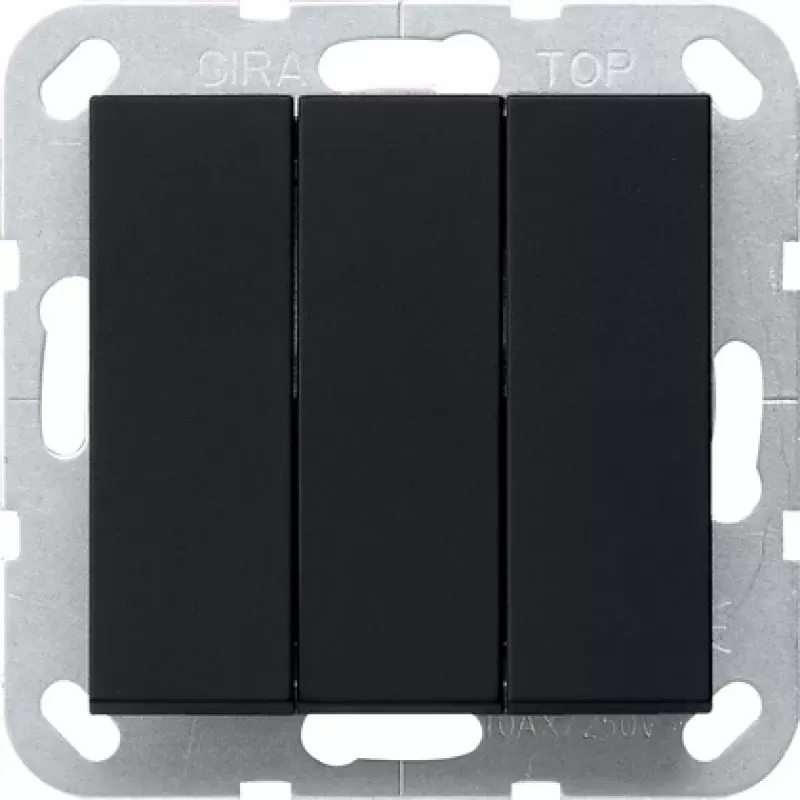

Gira keinukytkinosa, musta, vaihtokytkin, 10 A, uppoasennus 2832005

The Gira 2832005 is a rocker switch insert with a changeover contact, allowing it to be used in two-way switching circuits. Its black thermoplastic body is halogen-free and compatible with the Gira System 55 range, including the Standard 55, E2, Event, Esprit, and ClassiX lines. The insert mounts flush in a standard wall box and connects via screw terminals for conductors from 1.5 to 2.5 mm².

Highlights

• Changeover contact for two-way switching
• Rated for 10 A at 250 V AC
• Halogen-free thermoplastic construction
• Illuminable with separate lamp (e.g., Gira 089600)
• Compatible with Gira System 55 cover plates and frames

In daily use

The insert is installed behind a compatible Gira cover plate and rocker. Its screw terminals accept solid or stranded conductors up to 2.5 mm². The switch is designed for frequent operation, with a mechanical endurance exceeding 40,000 switching cycles. The black colour matches Gira's black cover plates and frames for a uniform appearance.

Full specifications

• Product type: Rocker switch insert
• Switch function: Changeover (2-way)
• Number of rockers: 1
• Rated current: 10 A
• Rated voltage: 250 V AC
• Connection type: Screw terminals
• Mounting type: Flush-mounted
• Colour: Black
• Material: Thermoplastic
• Halogen-free: Yes
• Illuminable: Yes (with separate lamp)
• Compatibility: Gira System 55, E2, Event, Esprit, Standard 55, ClassiX
• Terminal capacity: 1.5 - 2.5 mm²
• Operating temperature: -20 to +40 °C
• Switching cycles: > 40,000

Final note

The Gira 2832005 is a reliable choice for two-way lighting control in residential and commercial installations, offering compatibility with a wide range of Gira design lines.
