Gira System 3000 liiketunnistin-osa 2,20 m, System 55, puhtaanvalkoinen matta 537527

With a 180° detection angle and a range of up to 12 m in diameter at the recommended mounting height of 2.20 m, this motion detector attachment from the Gira System 3000 line brings reliable presence detection to your System 55 installation. The passive infrared sensor reacts to thermal movement, switching lights automatically when someone enters the room.

Overview

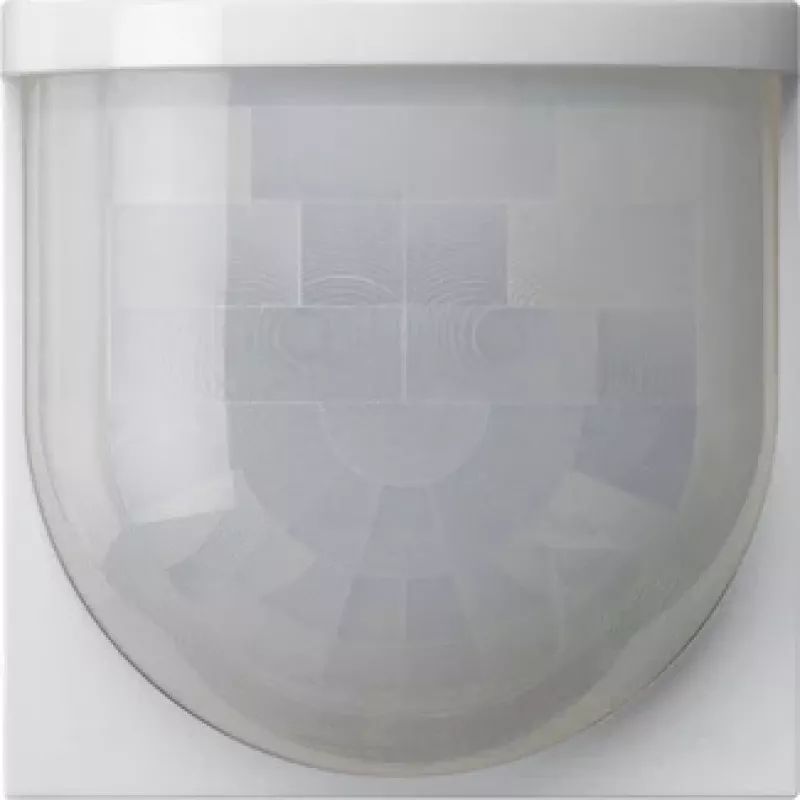

The Gira 537527 is a motion detector attachment designed for flush-mounted inserts of the Gira System 3000 series. It fits seamlessly into the Gira System 55 design line and comes in a pure white matt finish. The housing is made of UV-stable thermoplastic, ensuring durability even in sun-exposed areas.

What stands out

• Wide 180° detection angle for comprehensive coverage
• Adjustable brightness threshold from 0 to 1000 lux
• Run-on time configurable from 10 seconds to 30 minutes
• Manual override possible via extension input
• Compatible with switching, dimming, and blind control inserts

Technical details

• Sensor type: Passive infrared (PIR)
• Detection range: approx. 12 m diameter at 2.20 m mounting height
• Recommended mounting height: 2.20 m
• Brightness threshold: 0–1000 lx
• Time delay: 10 s – 30 min
• Operating temperature: -15 °C to +45 °C
• Protection class: IP20 (when installed with suitable base unit)
• Material: Thermoplastic (PC), UV-stable

Our verdict

A versatile motion detector that integrates perfectly with the Gira System 3000 platform, offering flexible settings for automatic lighting control in residential and commercial spaces.
