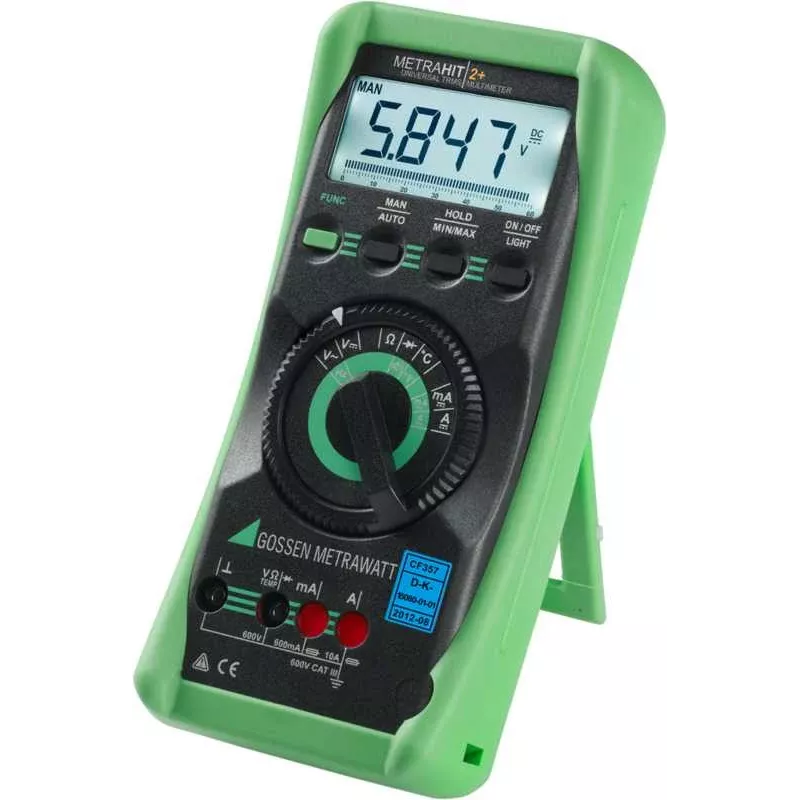

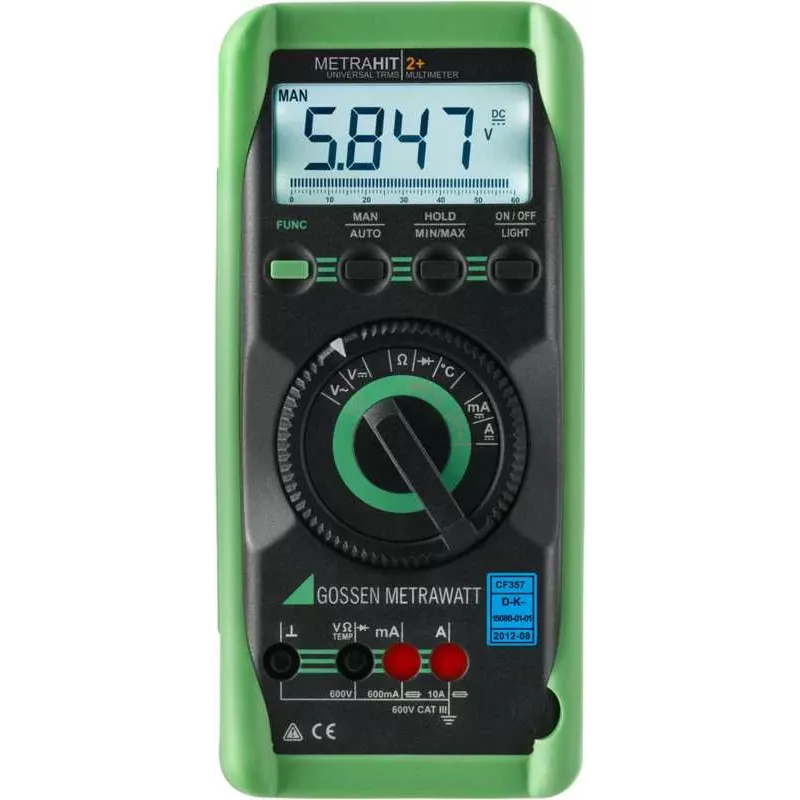

GMC Instruments METRAHIT 2+ digitaalinen yleismittari 6000 Digits True RMS CAT III 600V / CAT II 1000V

The GMC Instruments METRAHIT 2+ is a high-precision digital multimeter designed for professional electrical measurements. With a 6000-digit display and True RMS measurement capability, it delivers accurate readings for AC and DC voltage, current, resistance, capacitance, frequency, and temperature. Its robust safety rating of CAT III 600V / CAT II 1000V ensures reliable use in demanding environments.

Advantages

This multimeter offers exceptional accuracy and versatility, featuring auto-ranging, data hold, MIN/MAX recording, and a continuity test with acoustic signal. The included infrared interface allows convenient data transfer to a PC for analysis. Powered by two AA batteries, it provides up to 200 hours of operation, making it ideal for field and lab use.

Suitable for

• Electricians and maintenance technicians
• Laboratory and educational settings
• Industrial troubleshooting and diagnostics
• HVAC and automotive electrical systems

Key specifications

• Display: 6000 digits
• True RMS measurement
• DC voltage: 100 µV to 1000 V
• AC voltage: 100 µV to 1000 V
• DC current: 10 µA to 10 A
• AC current: 10 µA to 10 A
• Resistance: 100 mΩ to 40 MΩ
• Capacitance: 1 nF to 400 µF
• Frequency: 1 Hz to 1 MHz
• Temperature: -20°C to +1000°C (with optional K-type sensor)
• Safety: CAT III 600V / CAT II 1000V
• Power: 2 x 1.5V AA batteries
• Battery life: approx. 200 hours
• Interface: Infrared (IR)
• Protection class: IP50

Recommendations

For comprehensive electrical testing, pair the METRAHIT 2+ with a set of high-quality test leads and a K-type temperature probe. Its rugged design and extensive measurement functions make it a reliable companion for professionals.
