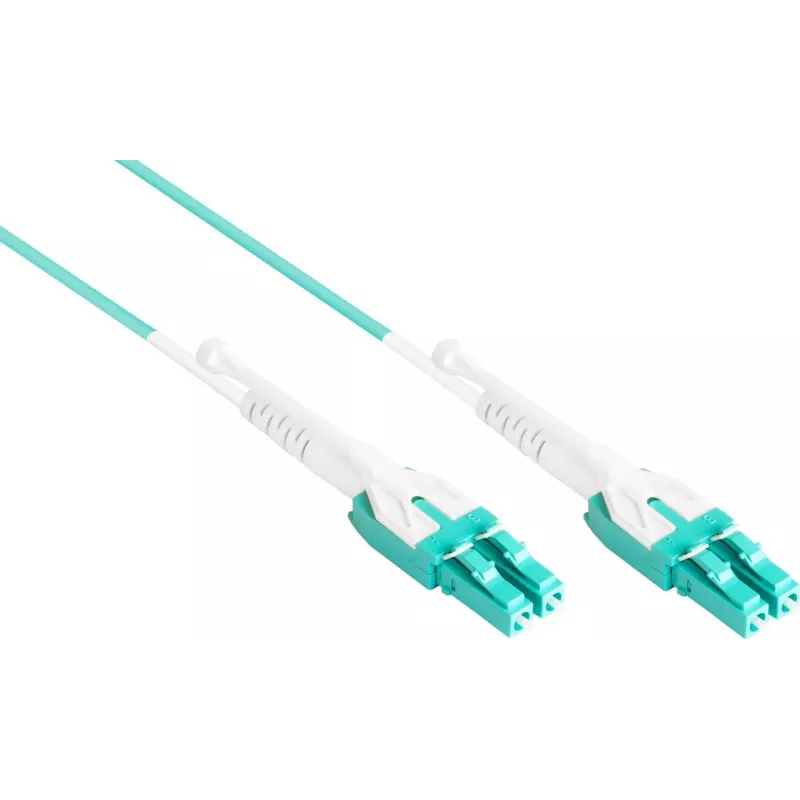

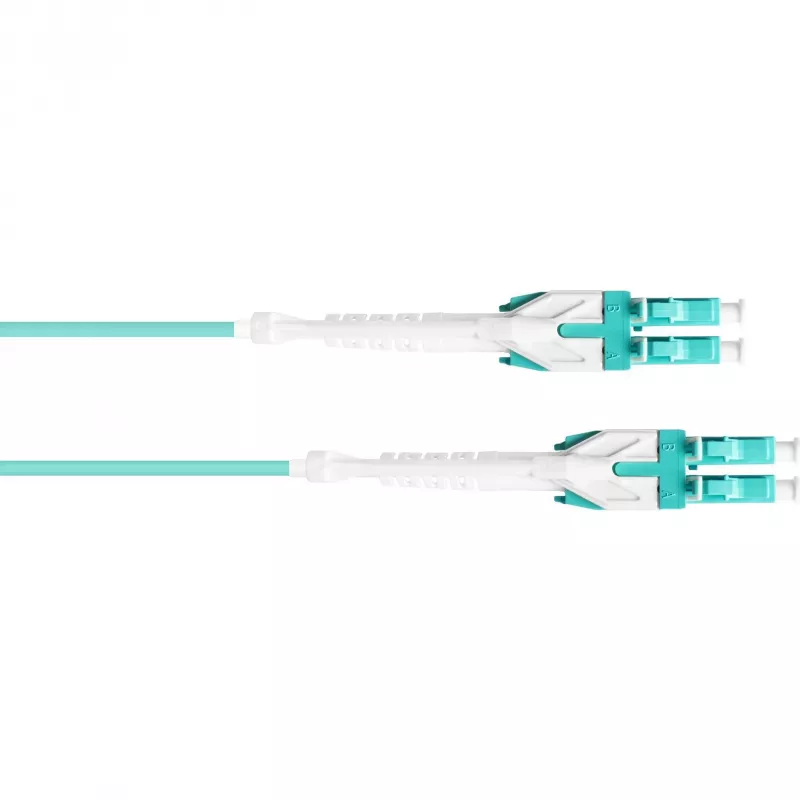

GoodConnections Alcasa LW-U820LC3 duplex multimode OM3 LC-LC kuitu-patchkaapeli, 20 m, aqua

Experience high-speed data transmission with the GoodConnections Alcasa LW-U820LC3 fiber optic patch cable. Engineered with OM3 multimode fiber, it delivers a bandwidth of 1500 MHz·km at 850 nm, making it ideal for 10 Gigabit Ethernet and beyond. The 20-meter length provides flexibility for data center and enterprise networking setups.

Overview

This cable features LC duplex connectors on both ends, ensuring a secure and reliable connection for high-density network environments. The aqua-colored LSZH jacket not only meets industry standards for safety but also allows for easy identification of OM3 fiber. With low insertion loss and high return loss, it maintains signal integrity over long distances.

What stands out

• OM3 multimode fiber supports 10GbE, 40GbE, and 100GbE up to specified distances.

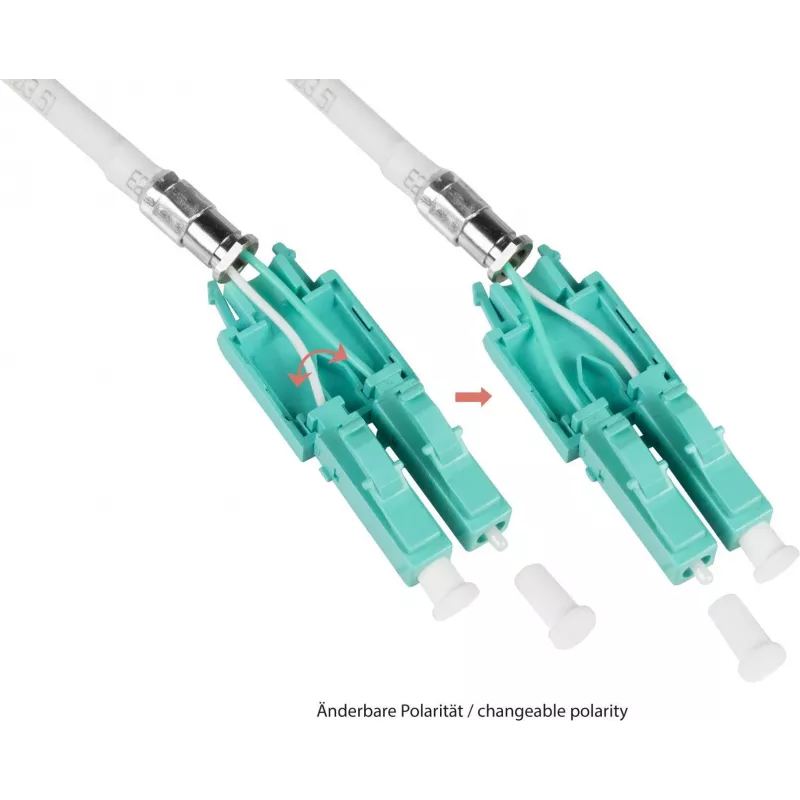

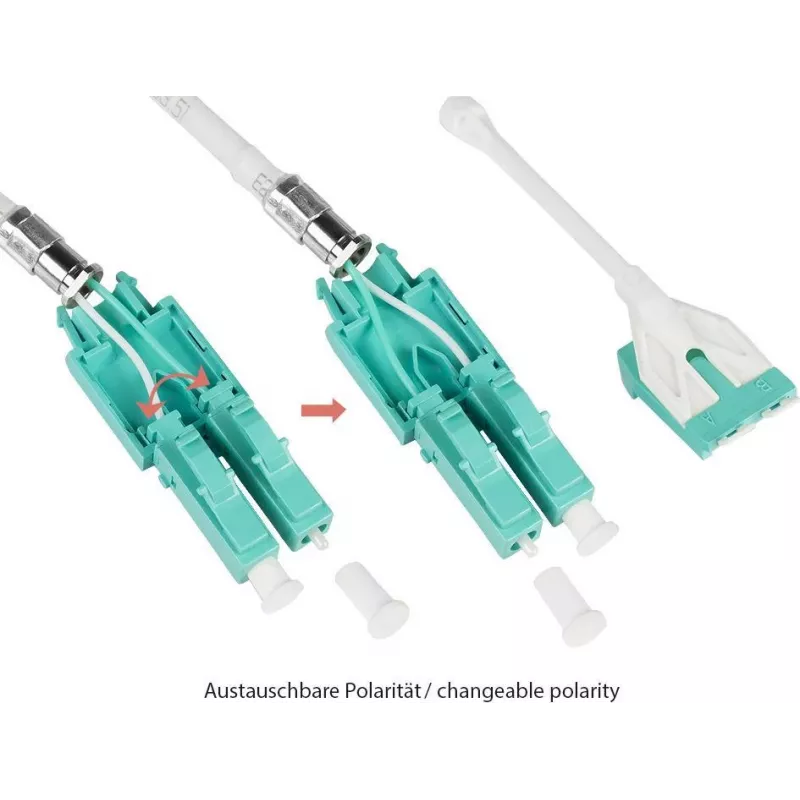

• LC duplex connectors provide a compact, high-performance connection.
• LSZH jacket reduces toxic smoke and corrosive gases in case of fire.
• Aqua color conforms to TIA/EIA standards for OM3 identification.
• Low insertion loss (<0.3 dB) ensures minimal signal degradation.

Technical details

• Fiber type: Multimode OM3, 50/125 µm core/cladding.
• Connectors: LC duplex to LC duplex.
• Length: 20 meters.
• Jacket material: LSZH (Low Smoke Zero Halogen).
• Operating temperature: -20°C to 70°C.
• Compliance: TIA/EIA, IEC, RoHS.

Our verdict

A reliable and high-performance OM3 patch cable that meets the demands of modern data centers and high-speed networks, offering excellent bandwidth and safety features.
