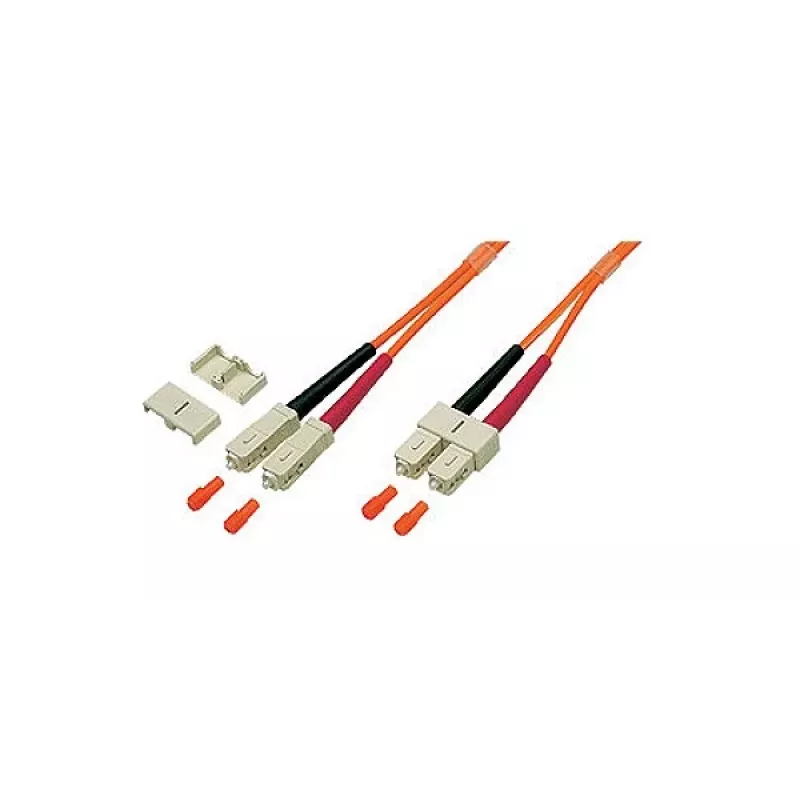

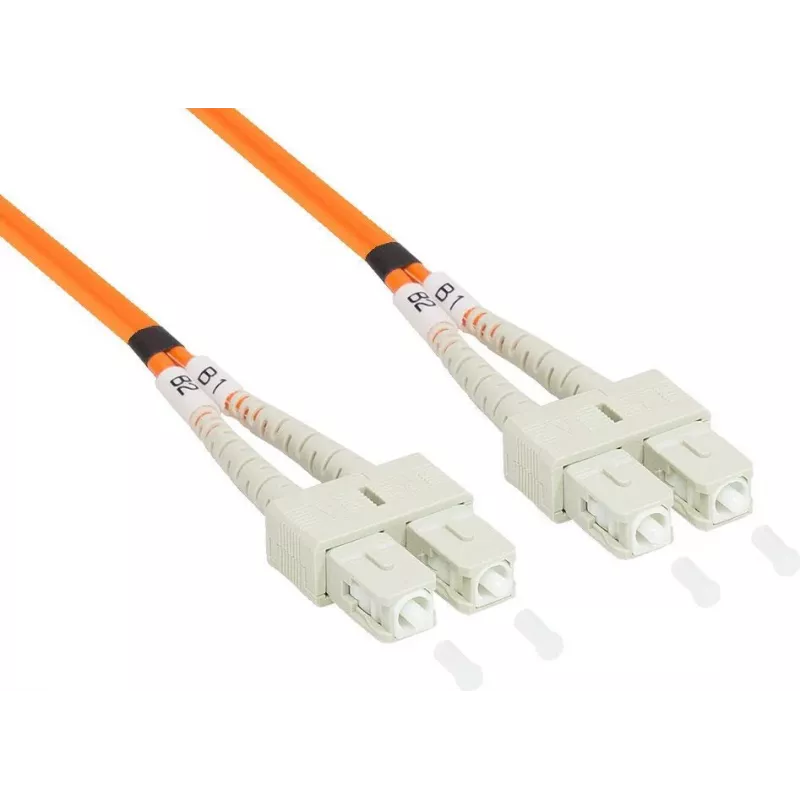

Good Connections OM2 duplex multimode kuituverkkokaapeli SC/SC 5 m LW-805SC

Engineered for high-speed multimode networking, this 5-meter OM2 duplex fiber patch cable delivers a 500 MHz·km bandwidth at both 850 nm and 1300 nm, ensuring reliable Gigabit Ethernet performance. With SC connectors on both ends and a 50/125 µm core, it provides a low-loss, high-return connection for data centers, enterprise backbones, and FTTx applications.

Overview

The Good Connections LW-805SC is a duplex multimode fiber optic patch cable with OM2 classification, featuring SC to SC connectors with PC polishing. The cable uses a 50/125 µm core/cladding diameter and is built with a zipcord construction for easy separation of the two fibers. The LSZH jacket in orange provides safety in enclosed spaces and meets halogen-free requirements. With a length of 5 meters, it is suitable for patching between fiber panels, switches, and media converters.

What stands out

• OM2 multimode fiber supports 1 Gbps Ethernet up to 550 meters at 850 nm.
• Low insertion loss (< 0.3 dB per connector pair) and high return loss (> 30 dB) ensure signal integrity.
• SC connectors with PC polish offer a reliable, snap-in connection.
• LSZH jacket is flame-retardant and low smoke, ideal for indoor use.
• Duplex zipcord design allows easy separation and routing.

Technical details

• Cable type: Fiber optic patch cable, duplex multimode
• Fiber class: OM2
• Core/cladding diameter: 50/125 µm
• Connectors: SC/PC to SC/PC
• Cable length: 5 m
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Jacket color: Orange
• Attenuation: ≤ 3.0 dB/km @ 850 nm, ≤ 1.0 dB/km @ 1300 nm
• Bandwidth (OFL): 500 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Insertion loss: < 0.3 dB per connector pair
• Return loss: > 30 dB
• Operating temperature: -20°C to +70°C

Our verdict

A dependable OM2 patch cable for short to medium distance multimode links. The LSZH jacket and low loss make it a solid choice for structured cabling in offices and data centers.
