GPS-vastaanotinmoduuli USB Navilock NL-852EUSB

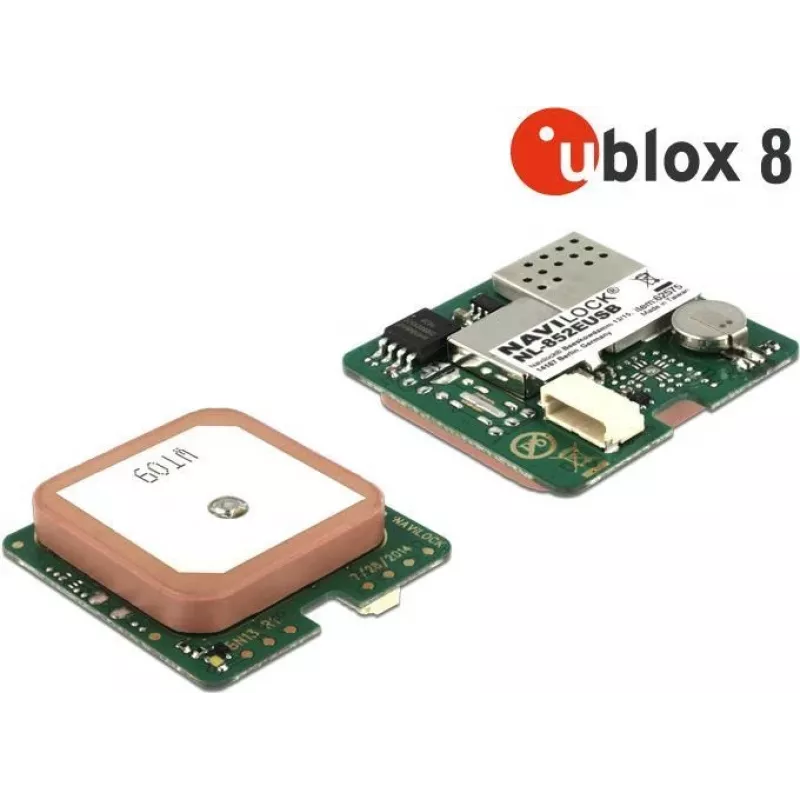

The Navilock NL-852EUSB is a compact USB GNSS receiver module with an integrated patch antenna and backup battery. Built around the u-blox 8 UBX-M8030-KT chipset, this USB 2.0 device receives signals from multiple satellite systems, accepts up to 72 satellites simultaneously and is suitable for navigation and location-aware applications requiring portable, easy-to-install positioning hardware.

Advantages

The module supports multi-GNSS reception (GPS, GLONASS, BeiDou/COMPASS, Galileo, QZSS) and SBAS corrections (WAAS, EGNOS, QZSS, MSAS) for improved accuracy. It offers high sensitivity (–167 dBm), fast update rates (up to 18 Hz for single GNSS and 10 Hz for multi-GNSS), low power consumption (max 45 mA) and standard USB 2.0 connectivity with auto baud rates up to 115200 bps. A status LED indicates GPS state, and AssistNow online/offline is supported for faster position fixes.

Suitable for

• Portable navigation and mapping devices
• Location-based services and telematics
• Embedded systems and IoT applications requiring USB GNSS input
• Field data collection and handheld positioning tools

Key specifications

• Connector: WTB USB 2.0
• Chipset: u-blox 8 UBX-M8030-KT
• Frequencies: GPS L1 1575.4200 MHz; GLONASS L1 1602 (k × 0.5625) MHz; BeiDou B1 1561.0980 MHz; Galileo E1 1575.4200 MHz; QZSS L1 1575.4200 MHz
• Max satellites tracked: 72
• Protocols: NMEA 0183 (GGA, GSA, GSV, RMC, VTG)
• Update rate: single GNSS 18 Hz; multi GNSS 10 Hz
• Sensitivity: –167 dBm
• Positioning accuracy: 2.5 m CEP; 2.0 m CEP with SBAS
• Power: 5 V USB supply; max current 45 mA
• Operating temperature: −40 °C to 85 °C (without battery); −20 °C to 60 °C (with battery)
• LED indicator for GPS status
• Dimensions (L×W×H): approx. 30 × 30 × 7.9 mm

How to use

Connect the Navilock NL-852EUSB to a USB 2.0 port on a computer or embedded host. Install any required drivers or allow the operating system to load the appropriate USB serial driver. Configure the receiving software to read NMEA 0183 sentences (GGA, GSA, GSV, RMC, VTG) at the desired baud rate (auto baud up to 115200 bps). For best performance, place the module where the patch antenna has a clear view of the sky and enable AssistNow or SBAS if supported by the application.

Recommendations

For reliable fixes and optimal accuracy, mount the module with an unobstructed sky view, avoid shielding by metal enclosures, and enable SBAS or AssistNow services when available. Allow the receiver to complete a cold start (approx. 26 seconds) after initial power-up for first-time position acquisition.
