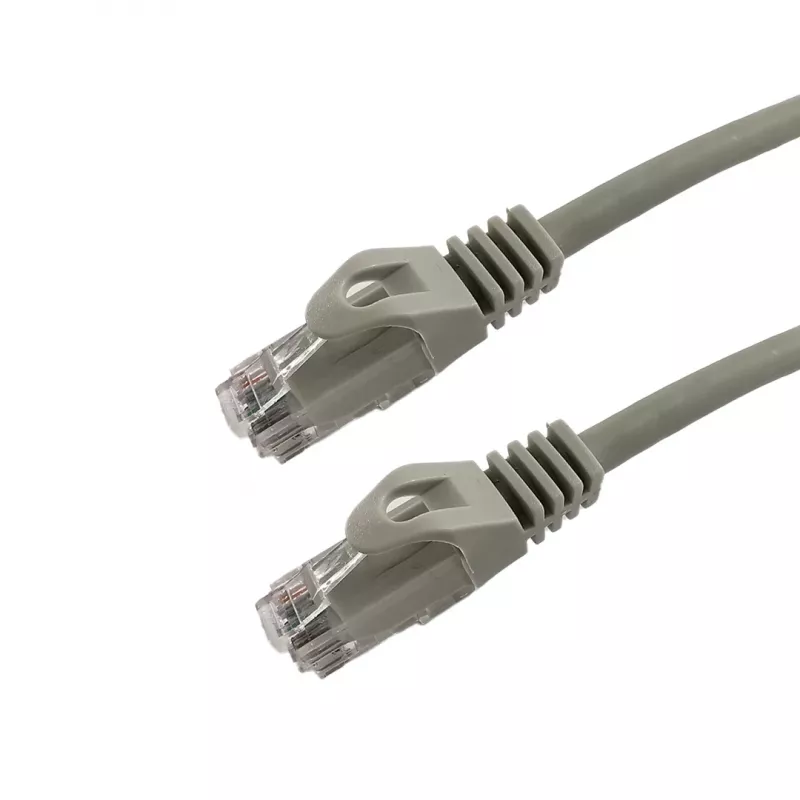

Grafenthal CAT6A S/FTP CU LSZH -verkkokaapeli 0,25 m harmaa

The Grafenthal Patch Cable CAT6A S/FTP CU LSZH 0.25m Grey is a high-performance Ethernet cable designed for reliable network connectivity in demanding environments. With Category 6A certification, it supports data transfer rates up to 10 Gigabit Ethernet (10GBASE-T) and bandwidth up to 500 MHz, making it ideal for data centers, server rooms, and professional network installations. The S/FTP (Screened Foiled Twisted Pair) shielding provides excellent protection against electromagnetic interference (EMI), ensuring stable and error-free data transmission. The cable features solid copper conductors (CU) and a Low Smoke Zero Halogen (LSZH) jacket, which reduces toxic smoke and corrosive gases in case of fire, enhancing safety in enclosed spaces.

Advantages

This patch cable offers superior performance and reliability. Its S/FTP shielding minimizes crosstalk and external interference, while the LSZH jacket ensures compliance with strict fire safety standards. The 0.25-meter length is perfect for short connections between patch panels and switches, reducing cable clutter and improving airflow. Backward compatible with Cat6, Cat5e, and Cat5 networks, it provides flexibility for mixed environments.

Suitable for

• Data centers and server rooms
• Enterprise network infrastructure
• Telecommunications and IT equipment
• High-speed Ethernet applications requiring 10GBASE-T
• Environments with strict fire safety requirements (LSZH)

Key specifications

• Cable Type: Patch Cable
• Category: CAT6A (Category 6A)
• Shielding: S/FTP (Screened Foiled Twisted Pair)
• Conductor Material: Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 0.25 m
• Color: Grey
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Compliance: TIA/EIA-568-C.2, ISO/IEC 11801
• Wiring Standard: T568B
• Conductor Gauge: 26 AWG
• Outer Diameter: Approx. 7.0 mm
• Operating Temperature: -20°C to 60°C
• Insulation Material: HDPE

Recommendations

For optimal performance, use this cable with CAT6A compatible network equipment. Ensure proper cable management to maintain signal integrity. This cable is not recommended for outdoor use or direct burial.
