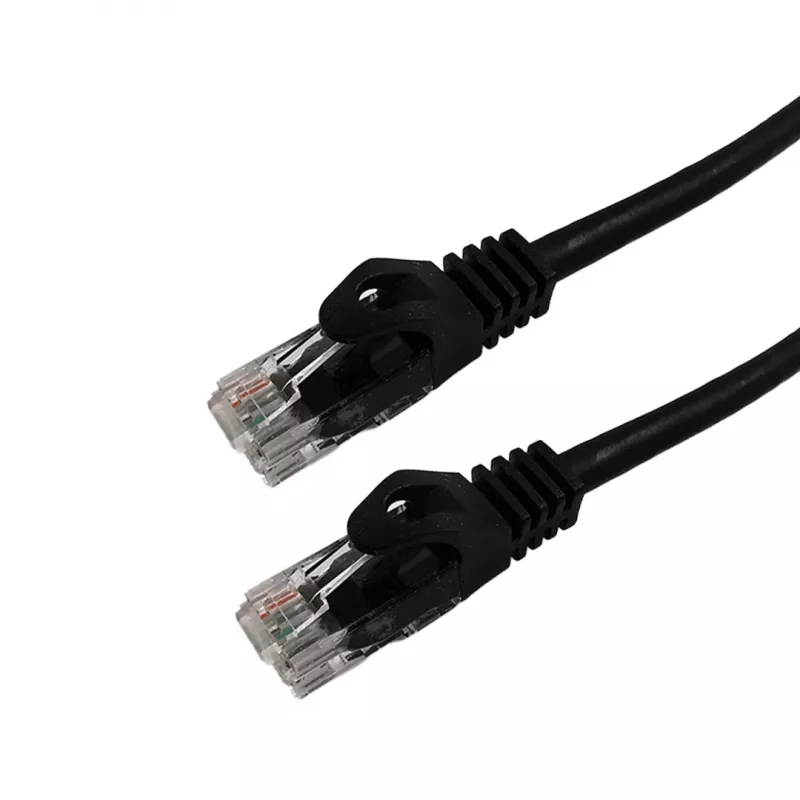

GRAFENTHAL patch-kaapeli Cat.6A S/FTP CU 0,5 m musta

The GRAFENTHAL Patch Cable Cat.6A S/FTP CU is a high-performance network cable designed for reliable 10 Gigabit Ethernet connections. With a length of 0.5 meters and a sleek black color, this cable is ideal for short-range patching in data centers, server rooms, and home networks. It features S/FTP shielding (screened and foiled twisted pairs) to minimize electromagnetic interference, ensuring stable data transmission.

Advantages

This patch cable offers exceptional signal integrity and speed, supporting bandwidths up to 500 MHz. The 100% copper conductors (AWG 26/7 stranded) provide excellent conductivity, while the LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic fumes in case of fire. Gold-plated connectors (50µ) ensure corrosion resistance and optimal contact. The molded snagless boot protects the RJ45 latch from breakage during installation.

Suitable for

• 10GBASE-T networks (10 Gigabit Ethernet)
• LAN connections in offices, data centers, and home networks
• High-speed data transfer applications requiring low latency
• Structured cabling systems compliant with Cat.6A standards

Key specifications

• Cable Type: Patch Cable
• Category: Cat.6A (Category 6a)
• Shielding: S/FTP (PIMF)
• Conductor: 100% Copper, AWG 26/7 stranded
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 0.5 m
• Color: Black
• Connectors: RJ45 Male to RJ45 Male, Gold-plated (50µ)
• Wiring Standard: TIA/EIA 568B
• Bandwidth: Up to 500 MHz
• Data Transfer Rate: Up to 10 Gbps
• Boot Type: Molded, Snagless
• Outer Diameter: Approx. 6.2 mm
• Flame Retardancy: IEC 60332-1-2
• Compliance: RoHS, CE, ISO/IEC 11801, EN 50173

Recommendations

For optimal performance, pair this cable with Cat.6A compatible switches and patch panels. Ensure proper cable management to avoid kinking or sharp bends. This cable is not recommended for outdoor use.
