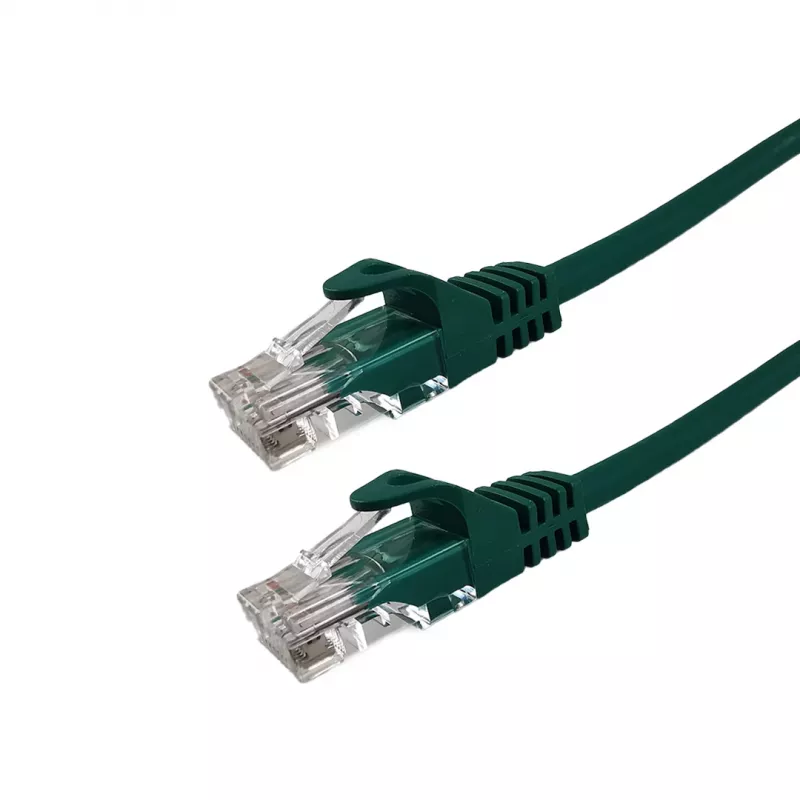

Grafenthal patch-kaapeli CAT6A S/FTP CU LSZH 10,00 m vihreä

The Grafenthal Patch Cable CAT6A S/FTP CU LSZH 10.00m Green is a high-performance network cable designed for reliable 10 Gigabit Ethernet connections. With S/FTP shielding and pure copper conductors, it ensures minimal interference and optimal signal integrity. The LSZH jacket makes it safe for use in enclosed spaces, reducing toxic smoke in case of fire.

Advantages

This cable offers superior data transfer rates up to 10 Gbps and a bandwidth of 500 MHz, making it ideal for demanding network environments. The gold-plated connectors provide excellent conductivity and corrosion resistance, while the stranded conductor design (AWG 26/7) ensures flexibility and durability.

Suitable for

• Data centers and server rooms requiring high-speed, reliable connections
• Enterprise LAN networks
• Home network upgrades for streaming and gaming
• Any application where low smoke and halogen-free materials are required

Key specifications

• Cable Type: Patch Cable
• Category: CAT6A
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Conductor Material: Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 10.00 m
• Colour: Green
• Connector Type: RJ45 Male to RJ45 Male
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Wiring Standard: TIA/EIA 568B
• Conductor Gauge: AWG 26/7 (Stranded)
• Connector Plating: Gold-plated (50µm)
• Cable Construction: PIMF (Pairs in Metal Foil)
• Outer Diameter: Approx. 6.2 mm
• Halogen-Free: Yes
• Flame Retardant: Yes (IEC 60332-1)
• Operating Temperature: -20°C to 60°C

Recommendations

For optimal performance, use this cable with CAT6A compatible network devices. Ensure proper cable management to avoid kinking or sharp bends. This cable is backward compatible with CAT6, CAT5e, and CAT5 networks.
