Grafenthal verkkokaapeli Cat.6A U/UTP CU LSZH 0,50 m sininen

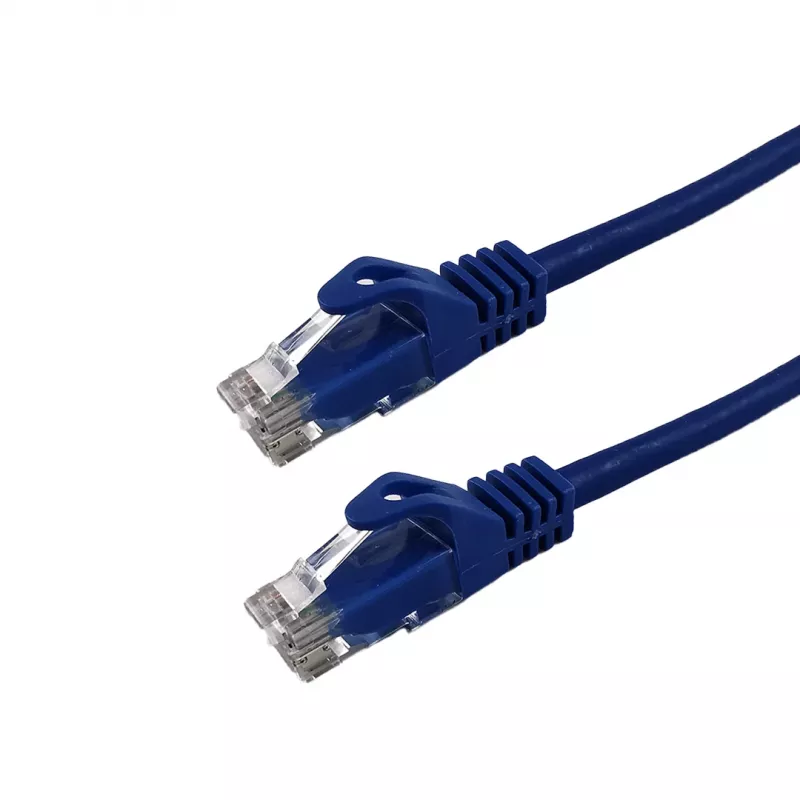

The Grafenthal Patch Cable Cat.6A U/UTP CU LSZH 0.50m Blue is a high-performance network cable designed for reliable 10 Gigabit Ethernet connections. Manufactured with pure copper conductors and a low smoke zero halogen (LSZH) jacket, this cable ensures excellent signal integrity and safety in sensitive environments.

Advantages

This patch cable offers superior data transmission up to 500 MHz, supporting 10GBASE-T networks. The U/UTP shielding minimizes electromagnetic interference, while the gold-plated RJ45 connectors provide corrosion-resistant, stable connections. The LSZH jacket reduces toxic fumes in case of fire, making it ideal for public and commercial spaces.

Suitable for

• Data center and server room cabling
• Enterprise network infrastructure
• Home and office Ethernet connections
• PoE (Power over Ethernet) applications

Key specifications

• Cable Type: Patch Cable
• Category: Cat.6A (Category 6a)
• Shielding Type: U/UTP (Unshielded Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 0.5 meters
• Color: Blue
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µm)
• Wiring Standard: TIA/EIA 568B
• Bandwidth: Up to 500 MHz
• Data Transfer Rate: Up to 10 Gbps
• Conductor Gauge: AWG 26/7 (Stranded)
• Cable Construction: Stranded Twisted Pair
• Outer Diameter: Approx. 6.0 mm
• Flame Retardancy: IEC 60332-1
• Halogen Free: Yes
• Operating Temperature: -20°C to 60°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, use this cable with Cat.6A compatible switches and network devices. Ensure proper cable management to avoid kinking or sharp bends.
