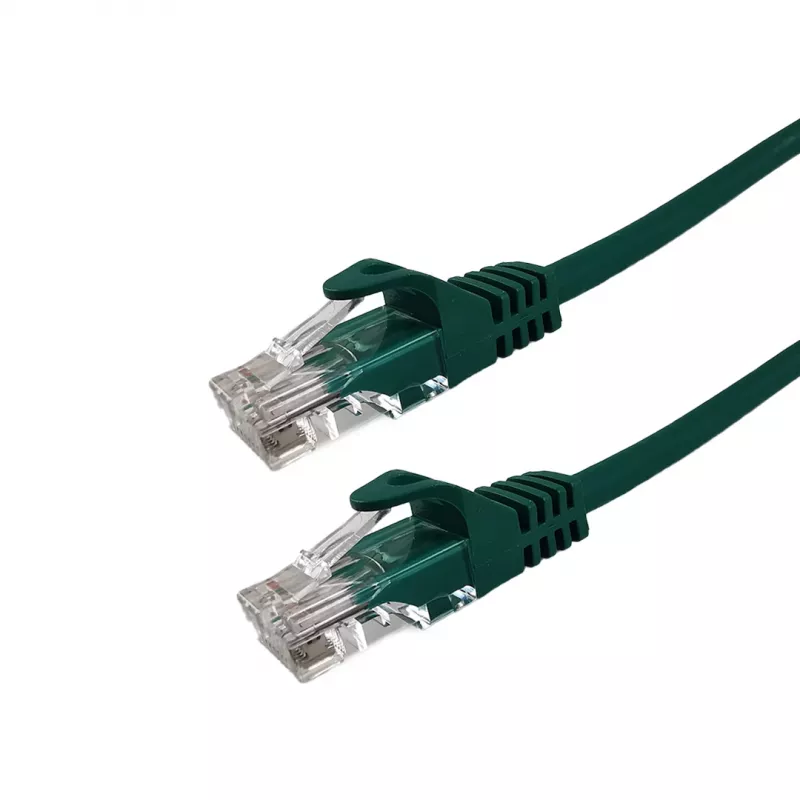

Grafenthal verkkokaapeli CAT6 U/UTP CU LSZH 0,20 m vihreä

The Grafenthal Patch Cable CAT6 U/UTP CU LSZH 0.20m Green is a high-quality Ethernet patch cable designed for reliable network connections. With a length of 0.20 meters, it is ideal for short-distance connections in server racks, patch panels, or between adjacent devices. The cable features unshielded twisted pair (U/UTP) construction with solid copper conductors, ensuring excellent signal integrity and compliance with CAT6 standards for data transfer rates up to 1 Gbps and bandwidth up to 250 MHz.

Advantages

This patch cable offers several benefits: it is made with LSZH (Low Smoke Zero Halogen) jacket material, which reduces toxic smoke and fumes in case of fire, making it suitable for use in public areas and enclosed spaces. The gold-plated RJ45 connectors provide corrosion resistance and reliable connectivity. The stranded conductor construction offers flexibility for easy routing in tight spaces.

Suitable for

• Connecting computers, switches, routers, and other network devices in LAN environments
• Use in data centers, server rooms, and office networks
• Applications requiring short, high-performance patch cables
• Installations where safety and low smoke emission are priorities

Key specifications

• Cable Type: Patch Cable
• Cable Category: CAT6
• Shielding: U/UTP (Unshielded)
• Conductor Material: Copper (CU)
• Jacket Material: LSZH
• Length: 0.20 m
• Colour: Green
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µm)
• Wiring Standard: TIA/EIA-568B
• Data Transfer Rate: Up to 1 Gbps
• Bandwidth: Up to 250 MHz
• Conductor Gauge: 26 AWG
• Cable Construction: Stranded
• Outer Diameter: Approx. 5.5 mm
• Fire Rating: LSZH
• Compliance: RoHS, CE

Recommendations

For optimal performance, use this cable with CAT6 compatible devices. Ensure proper cable management to avoid kinking or sharp bends. This cable is not suitable for outdoor or direct burial applications.
