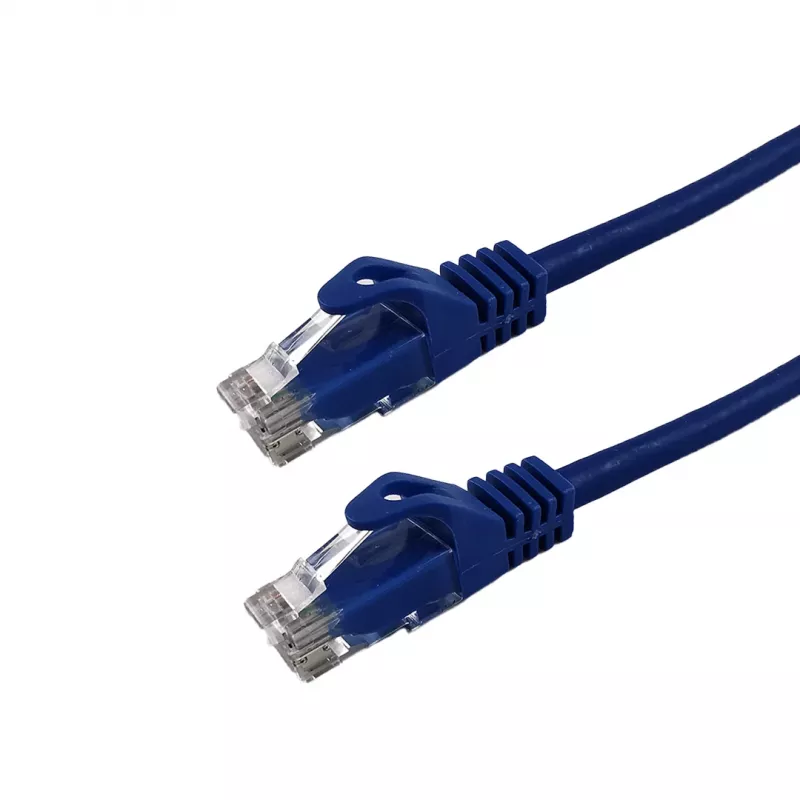

Grafenthal verkkokaapeli CAT6 U/UTP CU LSZH 1,00 m sininen

The Grafenthal Patch Cable CAT6 U/UTP CU LSZH 1.00m Blue is a high-performance Ethernet patch cable designed for reliable network connectivity. Manufactured with pure copper conductors and LSZH (Low Smoke Zero Halogen) jacket, it ensures safety and durability in various environments. This 1-meter cable supports data transfer rates up to 10 Gigabit Ethernet (10GBASE-T) with a bandwidth of 250 MHz, making it ideal for demanding network applications.

Advantages

This patch cable offers several key benefits: pure copper conductors for optimal signal integrity, LSZH jacket for reduced smoke and toxic fumes in case of fire, and gold-plated RJ45 connectors for corrosion resistance and reliable connections. The stranded conductor design provides flexibility and durability for frequent plugging and unplugging.

Suitable for

• Connecting computers, switches, routers, and other network devices in data centers, offices, and home networks
• 10GBASE-T applications requiring high-speed data transfer
• Environments where safety and low smoke emission are critical, such as schools, hospitals, and public buildings

Key specifications

• Category: CAT6
• Shielding: U/UTP (Unshielded Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 1.0 meter
• Color: Blue
• Connector Type: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µm)
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 250 MHz
• Wire Gauge: AWG 26/7 (Stranded)
• Wiring Standard: TIA/EIA 568B
• Outer Diameter: Approx. 6.0 mm
• Operating Temperature: -20°C to 60°C
• Impedance: 100 Ohm
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure that your network devices support CAT6 standards. This cable is backward compatible with CAT5e and CAT5 networks. Store in a cool, dry place away from direct sunlight.
