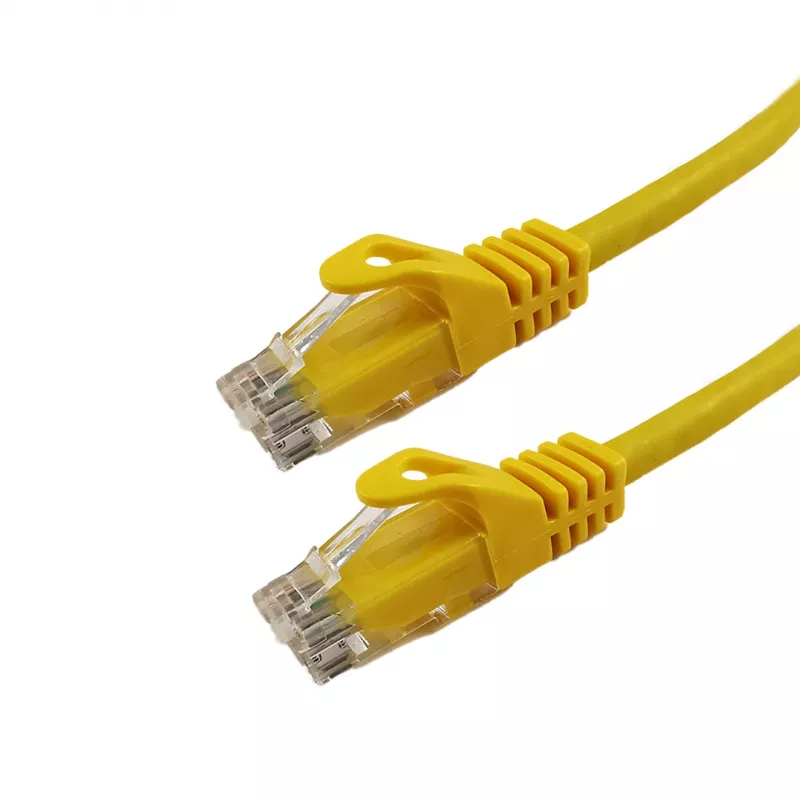

Grafenthal verkkokaapeli CAT6 U/UTP CU LSZH 3,00 m keltainen

The Grafenthal Patch Cable CAT6 U/UTP CU LSZH 3.00m Yellow is a high-performance Ethernet cable designed for reliable network connections. Manufactured with pure copper conductors and LSZH (Low Smoke Zero Halogen) jacket, it ensures safety and durability in any environment. This cable supports Gigabit Ethernet speeds up to 1 Gbps and is ideal for data centers, offices, and home networks.

Advantages

This patch cable offers excellent signal integrity and minimal crosstalk thanks to its U/UTP shielding and 24 AWG conductors. The gold-plated RJ45 connectors provide corrosion resistance and reliable contact. The LSZH jacket reduces toxic smoke in case of fire, making it suitable for public and enclosed spaces.

Suitable for

• Local Area Networks (LAN)
• Data centers and server rooms
• Office and home networking
• Connecting computers, switches, routers, and patch panels

Key specifications

• Cable Type: Patch Cable
• Category: CAT6
• Shielding: U/UTP (Unshielded Twisted Pair)
• Conductor Material: Pure Copper (CU)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 3.00 m
• Colour: Yellow
• Connectors: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µm)
• Conductor Gauge: 24 AWG
• Wiring Standard: TIA/EIA-568B
• Bandwidth: Up to 250 MHz
• Data Transfer Rate: Up to 1 Gigabit Ethernet (1000BASE-T)
• Number of Conductors: 8 (4 Twisted Pairs)
• Flame Retardancy: Yes (LSZH compliant)
• Halogen Free: Yes (LSZH compliant)
• Outer Diameter: Approx. 5.8 mm
• Operating Temperature: -20°C to 60°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, use this cable with CAT6 compatible devices. Ensure proper cable management to avoid kinks and sharp bends. This cable is not suitable for outdoor use.
