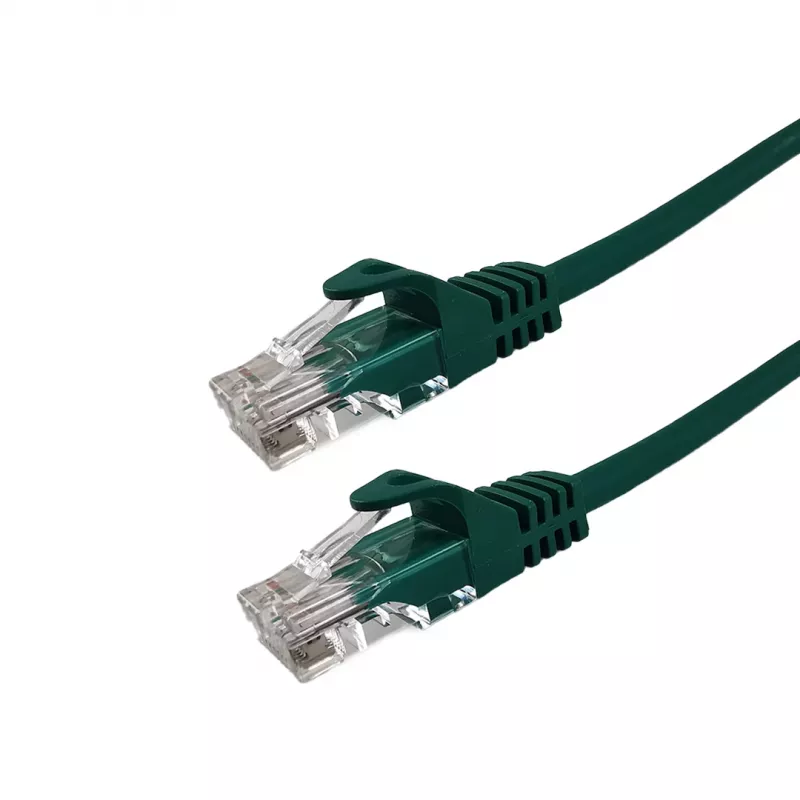

Grafenthal verkkokaapeli CAT6A S/FTP CU LSZH 0,50 m vihreä

The Grafenthal Patch Cable CAT6A S/FTP CU LSZH 0.50m Green is a high-performance network cable designed for reliable 10 Gigabit Ethernet connections. Manufactured with pure copper conductors and S/FTP shielding, this cable ensures minimal crosstalk and interference, making it ideal for demanding data center and enterprise environments. The LSZH (Low Smoke Zero Halogen) jacket provides enhanced fire safety, reducing toxic fumes in case of fire.

Advantages

This patch cable offers superior signal integrity and data transfer rates up to 10 Gbps over a bandwidth of 500 MHz. The gold-plated RJ45 connectors ensure corrosion-resistant, stable connections. Its 0.5-meter length is perfect for short-distance patching in server racks or network cabinets, reducing cable clutter.

Suitable for

• Data centers and server rooms
• Enterprise local area networks (LAN)
• 10GBASE-T Ethernet applications
• High-speed network infrastructure requiring low latency

Key specifications

• Cable Type: Patch Cable
• Category: CAT6A (Category 6A)
• Shielding: S/FTP (Screened/Foiled Twisted Pair)
• Conductor: Pure Copper (Cu), 26 AWG stranded
• Jacket: LSZH (Low Smoke Zero Halogen)
• Length: 0.5 meters
• Color: Green
• Connectors: RJ45 Male to RJ45 Male, gold-plated (50µm)
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Wiring Standard: TIA/EIA-568-B.2-10 (T568B)
• Impedance: 100 Ohm
• Operating Temperature: -20°C to +60°C
• Outer Diameter: Approx. 6.0 mm
• Compliance: RoHS, REACH

Recommendations

For optimal performance, use this cable with CAT6A compatible network equipment. Ensure proper cable management to avoid bending beyond the recommended bend radius. This cable is not suitable for outdoor or direct burial applications.
