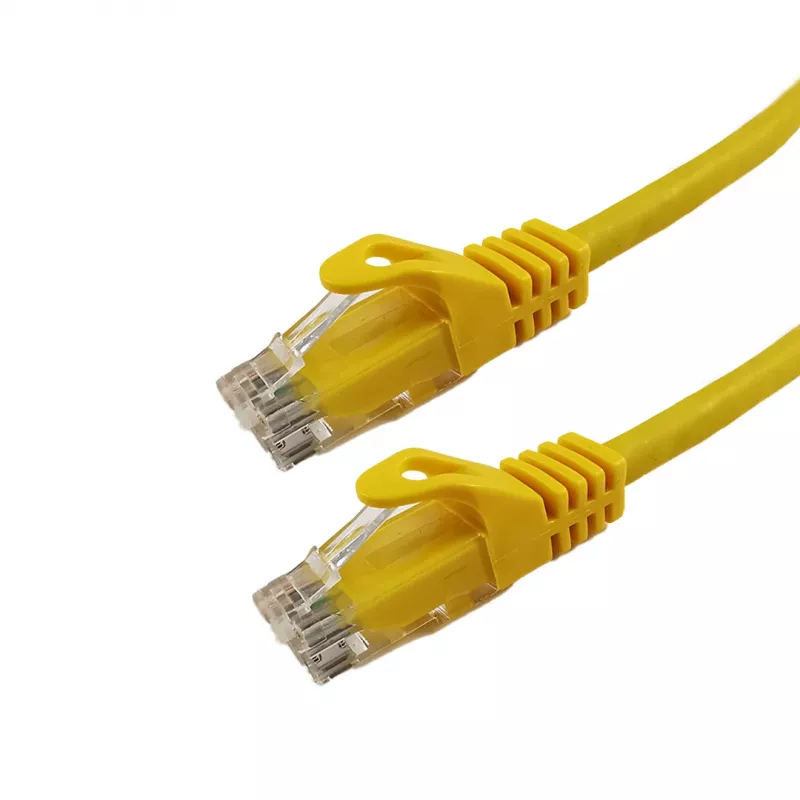

Grafenthal verkkokaapeli CAT6A S/FTP CU LSZH 1,00 m keltainen

The Grafenthal Patch Cable CAT6A S/FTP CU LSZH 1.00m Yellow is a high-performance Ethernet patch cable designed for reliable 10 Gigabit network connections. Constructed with 100% copper conductors and S/FTP shielding, it ensures minimal crosstalk and interference, making it ideal for data centers and professional networking environments. The LSZH jacket provides enhanced safety in case of fire, reducing toxic smoke and fumes.

Advantages

This cable offers superior signal integrity and data transfer rates up to 10 Gbps, supporting bandwidth-intensive applications. The S/FTP shielding protects against electromagnetic interference, while the gold-plated connectors ensure corrosion-resistant, stable connections. Its 1.0-meter length is perfect for short patch connections in server racks or workstations.

Suitable for

• Data centers and server rooms
• Telecommunications and IT infrastructure
• High-speed networking (10GBASE-T)
• PoE applications (PoE, PoE+, UPoE)

Key specifications

• Cable Type: Ethernet Patch Cable
• Category: CAT6A
• Shielding: S/FTP
• Conductor Material: 100% Copper
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Length: 1.0 meter
• Colour: Yellow
• Connectors: RJ45 Male to RJ45 Male
• Connector Plating: Gold-plated (50µm)
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: 500 MHz
• AWG: 26 AWG
• Wiring Standard: TIA/EIA-568B
• Cable Construction: Stranded
• Number of Pairs: 4
• PoE Support: Yes (PoE, PoE+, UPoE)
• Environmental Compliance: RoHS, REACH
• Fire Safety Standard: IEC 60332-1

Recommendations

For optimal performance in high-density networking environments, use this CAT6A patch cable to ensure reliable 10 Gigabit Ethernet connections. The LSZH jacket is recommended for areas where fire safety is a priority.
