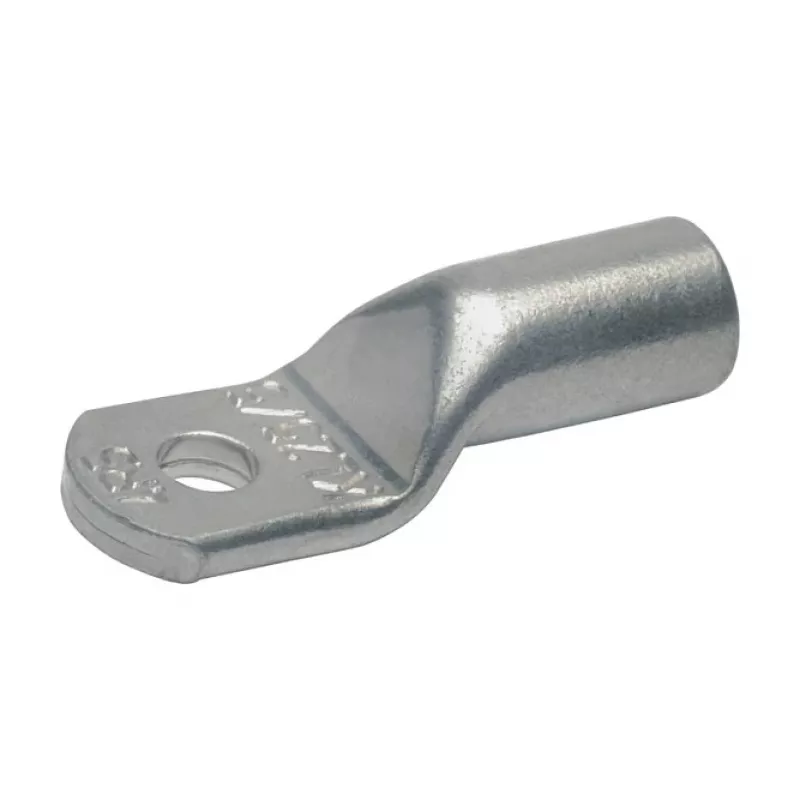

Gustav Klauke 8R12 kuparikaapelikenkä 95 mm² M12

Electrical installers and control cabinet builders require reliable, low-resistance terminations for high-current copper conductors. The Gustav Klauke 8R12 copper crimp cable lug is engineered to securely connect 95 mm² stranded copper cables to M12 studs, ensuring dependable performance in power distribution and industrial applications.

Key specifications

• Product type: Copper crimp cable lug
• Series: Klauke 8R
• Material: Electrolytic copper (E-Cu), untreated
• Cable cross-section: 95 mm²
• Bolt hole diameter: M12 (13 mm)
• Conductor compatibility: Stranded copper conductors (Class 2, 5, 6)
• Standard: DIN 46235
• Crimping type: Hexagonal crimp
• Total length: 65 mm
• Palm width: 28 mm
• Palm thickness: 3.5 mm
• Tube inner diameter: 13.5 mm
• Tube outer diameter: 17.5 mm
• Max. operating temperature: 150 °C
• Voltage application: Up to 1000 V

Why choose it

This lug features a flared cable entry for easy conductor insertion and an inspection hole for quick crimp quality verification. The untreated copper surface ensures excellent conductivity when properly crimped. Its dimensions and mechanical properties comply with DIN 46235, making it a professional choice for demanding electrical connections.

Ideal use cases

• Power distribution panels and switchgear
• Control cabinets and industrial machinery
• Earthing and bonding systems
• Motor and transformer connections

Good to know

For optimal performance, use a hexagonal crimping tool and die set matched to 95 mm² conductors. The lug is sold individually and is suitable for copper conductors only. Ensure the cable is stripped to the appropriate length and the crimp is placed over the tube section for a secure connection.
