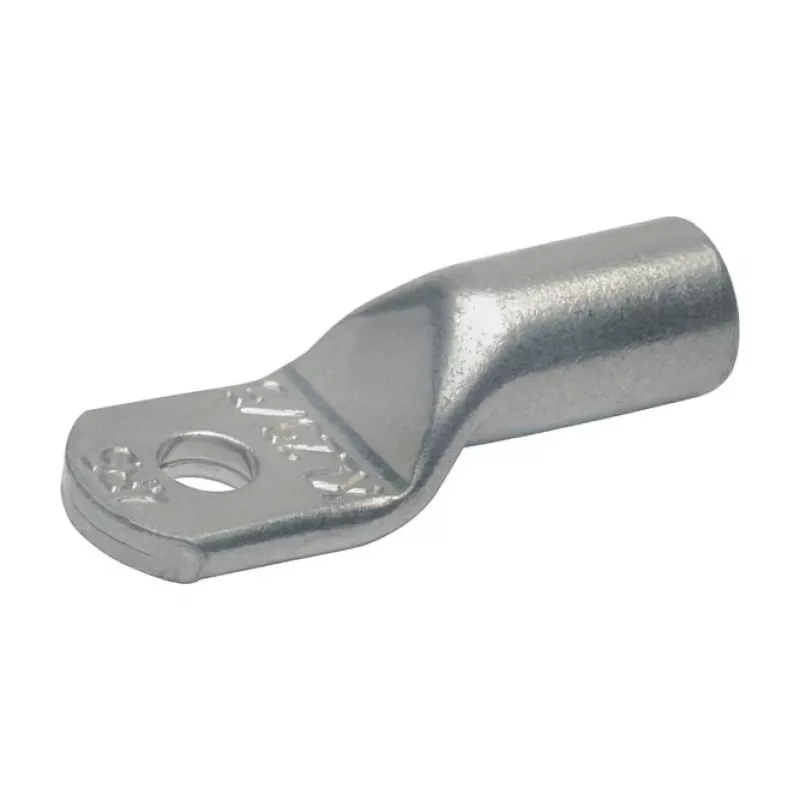

KLAU kuparikaapelikenkä 5R12 35 mm² M12

When connecting a 35 mm² copper conductor to an M12 stud, a reliable and durable termination is essential for safe electrical installations. The KLAU 5R12 copper crimp cable lug provides a robust solution, ensuring low-resistance and mechanically stable connections in demanding environments.

Who is it for

This cable lug is intended for electricians, panel builders, and maintenance professionals who need to terminate copper conductors with a cross-section of 35 mm² to M12 studs. It is suitable for fine-stranded, multi-stranded, and solid copper conductors, making it versatile for various industrial and commercial applications.

Main features

• Made from high-conductivity electrolytic copper (E-Cu) for excellent electrical performance.
• Designed for crimping onto 35 mm² copper conductors, ensuring a secure and gas-tight connection.
• Features a 12 mm stud hole (M12) for easy mounting onto bolts or terminals.
• Complies with DIN 46235 standard, guaranteeing dimensional accuracy and reliability.
• Untreated (blank) surface, allowing for optional tinning or plating if required.
• Single mounting hole for straightforward installation.
• Robust construction with a material thickness of 2.5 mm for durability.
• Total length of 45 mm, providing ample barrel length for a proper crimp.

Specifications

• Brand: GUSTAV KLAUKE GMBH
• Model: 5R12
• MPN: 5R12
• EAN: 4012078048682
• Cable cross-section: 35 mm²
• Stud hole diameter: 12 mm (M12)
• Connection type: Crimp
• Material: Electrolytic copper (E-Cu)
• Standard: DIN 46235
• Surface treatment: Untreated (blank)
• Lug type: Tubular cable lug / ring terminal
• Number of mounting holes: 1
• Inner diameter (tube): 8.5 mm
• Outer diameter (tube): 12 mm
• Ring width: 20 mm
• Material thickness: 2.5 mm
• Total length: 45 mm
• Application: For copper conductors (fine-stranded, multi-stranded, solid)
• Temperature range: Up to +105°C (depending on application)
• Colour: Copper (natural)

Tips

Use a suitable crimping tool with the correct die size for 35 mm² conductors to achieve a reliable, gas-tight connection. Ensure the conductor is fully inserted into the barrel before crimping. If tinning or plating is required, apply after crimping to avoid compromising the crimp joint.
