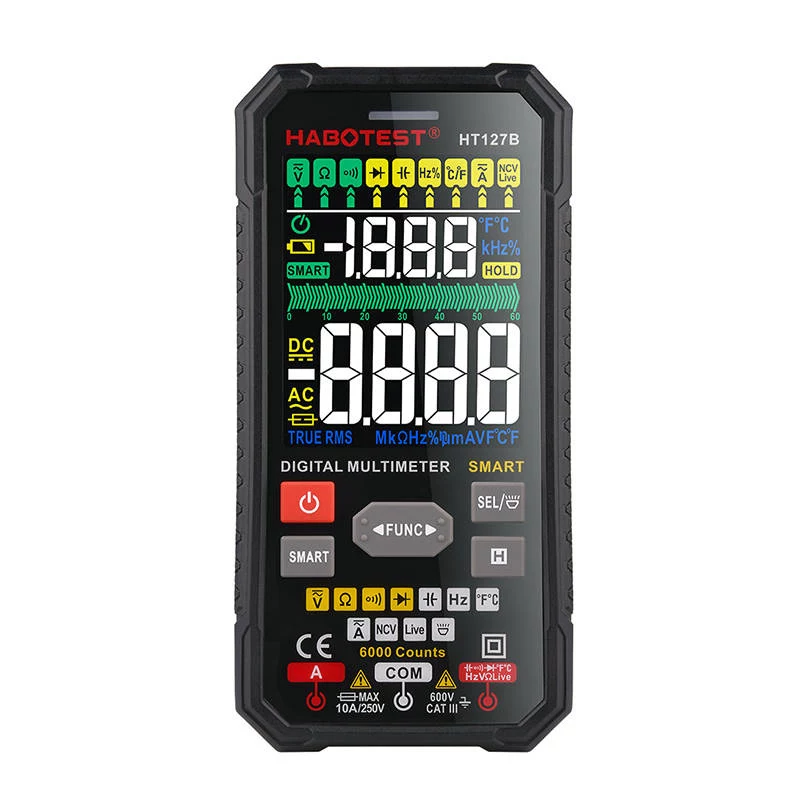

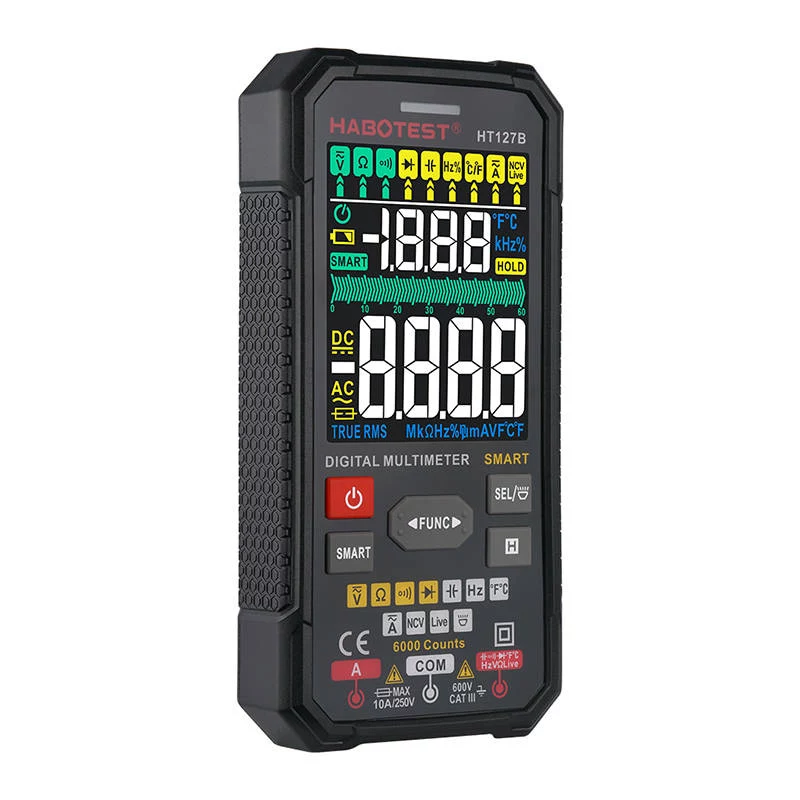

Habotest HT127B digitaalinen yleismittari True RMS 6000 counts auto-ranging NCV ja lämpötila

Electrical troubleshooting demands precision and reliability, and the Habotest HT127B Digital Universal Multimeter delivers exactly that. This professional-grade instrument combines True RMS accuracy with a 6000-count EBTN LCD display, ensuring clear readings even in challenging environments. Whether you're diagnosing automotive circuits, testing household wiring, or verifying industrial components, the HT127B provides the comprehensive measurement capabilities you need in a compact, durable design.

Who is it for

The HT127B is built for electricians, electronics technicians, HVAC professionals, and serious DIY enthusiasts who require a dependable multimeter for daily use. Its CAT III 600V safety rating and robust feature set make it suitable for both residential and commercial applications, from outlet testing to motor troubleshooting.

Main features

• True RMS measurement for accurate AC voltage and current readings on non-sinusoidal waveforms
• 6000-count EBTN LCD with clear digits and backlight for low-light conditions
• Auto-ranging with manual override for fast, convenient operation
• Non-contact voltage (NCV) detection and live wire identification for quick safety checks
• Temperature measurement from -40°C to 1000°C (-40°F to 1832°F) with thermocouple (probe sold separately)
• Diode and continuity tests with audible buzzer for quick circuit verification
• Data hold and auto power-off to conserve battery life
• Ergonomic design with protective rubber holster for durability and grip

Specifications

• Display: 6000 counts, EBTN LCD with backlight
• True RMS: Yes
• DC Voltage Range: 600mV / 6V / 60V / 600V
• AC Voltage Range: 6V / 60V / 600V
• DC Current Range: 600mA / 6A / 10A
• AC Current Range: 600mA / 6A / 10A
• Resistance Range: 600Ω / 6kΩ / 60kΩ / 600kΩ / 6MΩ / 60MΩ
• Capacitance Range: 6nF / 60nF / 600nF / 6uF / 60uF / 600uF / 6mF / 60mF
• Frequency Range: 60Hz / 600Hz / 6kHz / 60kHz / 600kHz / 6MHz / 10MHz
• Temperature Measurement: -40℃ to 1000℃ (-40℉ to 1832℉)
• Diode Test: Yes
• Continuity Test: Yes (with Buzzer)
• NCV (Non-Contact Voltage): Yes
• Live Wire Detection: Yes
• Auto Ranging: Yes
• Safety Rating: CAT III 600V
• Power Supply: 2x 1.5V AAA batteries (not included)

Tips

For accurate temperature readings, use a compatible K-type thermocouple probe (sold separately). Always verify the meter's operation on a known voltage source before and after testing to ensure safety. When using NCV, be aware that it detects presence of voltage but not exact value; use test leads for precise measurements.
