Hager ADA560D RCBO 1P+N 10A C-käyrä 30mA tyyppi A 10kA 230V

With a 10 kA short-circuit breaking capacity and a 30 mA residual current rating, the Hager ADA560D RCBO delivers robust protection for circuits up to 10 A, combining overload, short-circuit, and earth-leakage safety in a single modular unit.

Overview

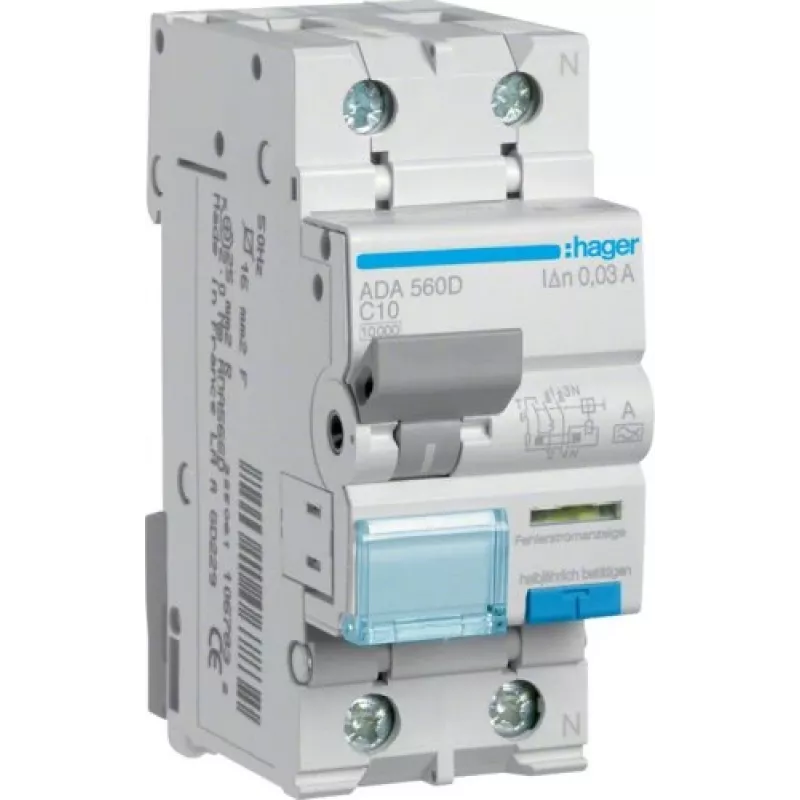

The Hager ADA560D is a residual current circuit breaker with overcurrent protection (RCBO) engineered for DIN rail mounting in residential and commercial distribution boards. It safeguards single-phase circuits with a rated current of 10 A and a C-curve tripping characteristic, making it suitable for loads with moderate inrush currents such as lighting, socket outlets, and small motors. The device detects Type A residual currents (AC and pulsating DC) at a sensitivity of 30 mA, providing personal protection against electric shock and fire hazards caused by earth faults.

What stands out

• Combined protection: integrates MCB and RCD functions in a 2-module width, saving space and simplifying installation.
• High breaking capacity: 10 kA Icn ensures reliable interruption of severe short-circuit currents, enhancing system safety.
• Type A residual current detection: handles both AC and pulsating DC fault currents, suitable for modern electronic loads.
• Wide terminal range: accepts rigid conductors from 1 to 25 mm² and flexible conductors from 1 to 16 mm² for versatile wiring.
• Energy limitation class 3: provides excellent current-limiting performance, reducing let-through energy and protecting downstream equipment.

Technical details

• Number of poles: 1P+N (1 protected pole + neutral)
• Rated current (In): 10 A
• Rated residual operating current (IΔn): 30 mA
• Tripping characteristic: C-curve (magnetic trip 5-10 In)
• Short-circuit breaking capacity (Icn): 10 kA
• Rated voltage (Ue): 230 V AC
• Frequency: 50/60 Hz
• Mounting type: DIN rail (35 mm)
• Module width: 2 modules (approx. 35 mm)
• Degree of protection: IP20 (front)
• Connection type: screw terminals
• Terminal capacity: rigid 1-25 mm², flexible 1-16 mm²
• Energy limitation class: 3
• Standard: EN 61009-1
• Operating temperature: -25 to 40 °C

Our verdict

The Hager ADA560D is a dependable RCBO that meets stringent safety standards while offering practical installation benefits. Its compact 2-module design and high breaking capacity make it an excellent choice for electricians and panel builders seeking reliable combined protection for 10 A circuits.
