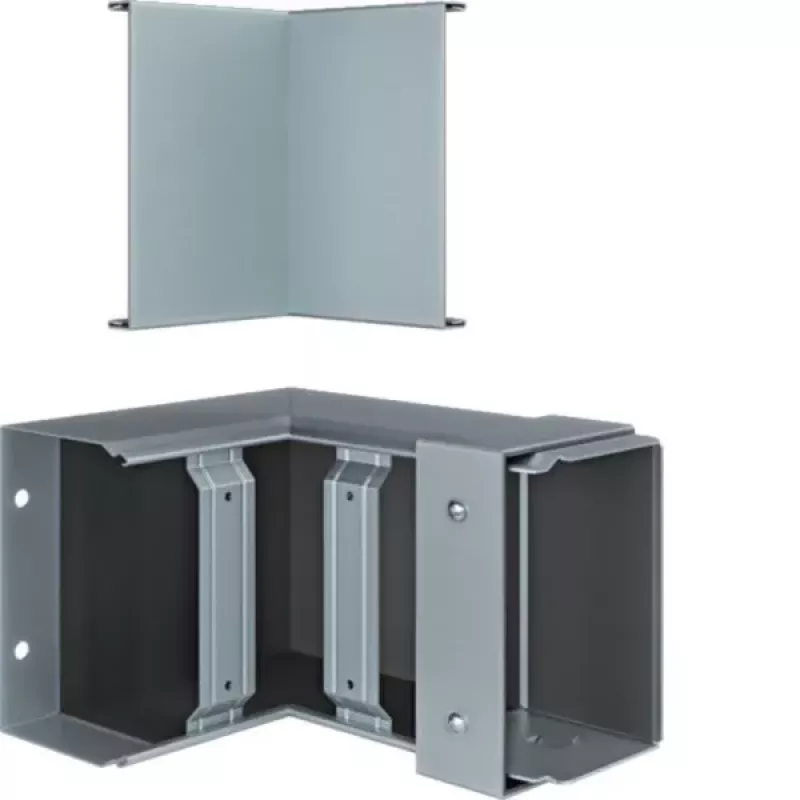

Hager FWK-Plus sisäkulma 100x150 mm sinkitty FWKP1001504VERZ

Inner corner for FWK-Plus fire protection cable duct system, enabling 90-degree direction changes in horizontal and vertical cable routing. Compatible with duct width 100 mm and height 150 mm, made of galvanized steel for durability.

Advantages

Galvanized steel construction offers corrosion resistance and long service life. The component integrates seamlessly with FWK-Plus ducts, maintaining fire resistance class I30 to I120 according to DIN 4102-11. Suitable for indoor fire protection cable routing applications.

Suitable for

• Fire protection cable routing systems
• Indoor installations requiring MLAR compliance
• Direction changes in cable ducts

Key specifications

• Product type: Inner corner
• System series: FWK-Plus
• Compatible duct width: 100 mm
• Compatible duct height: 150 mm
• Material: Steel
• Surface finish: Galvanized
• Fire resistance class (system): I30 to I120 per DIN 4102-11
• Application: Fire protection cable routing
• Installation position: Horizontal and vertical
• Angle: 90 degrees
• Mounting type: Screw connection
• Compliance standard: DIN 4102-11
• Compliance guideline: MLAR
• Function: Direction change for fire protection cable ducts
• Accessory type: System component
• Environmental suitability: Indoor use

Recommendations

For professional fire protection cable routing, pair with Hager FWK-Plus ducts and accessories to ensure system integrity and compliance.
