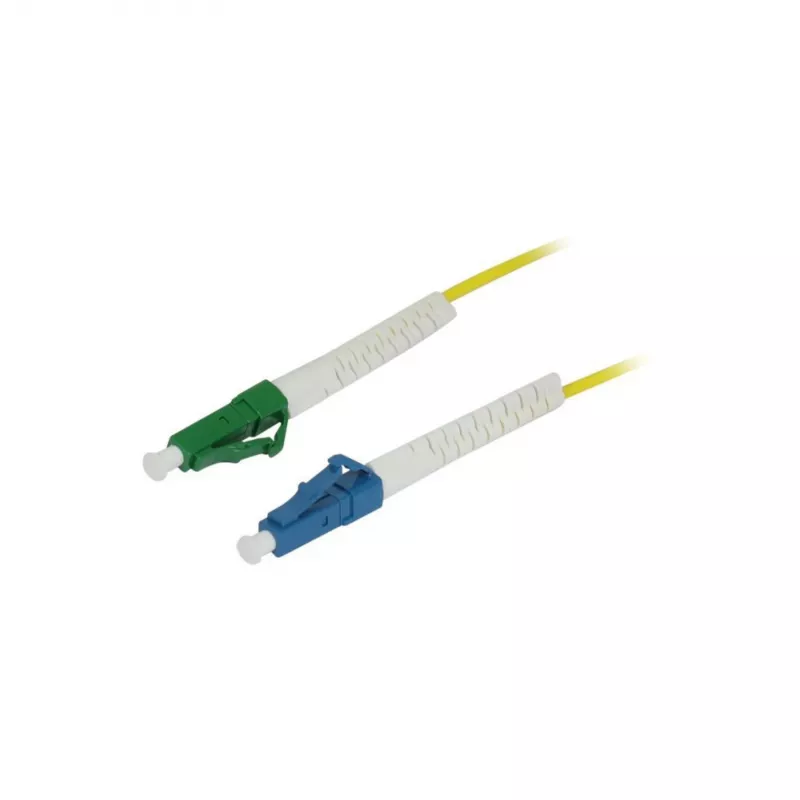

SYNERGY21 kuitu-patchkaapeli 20 m LC-LC APC 9/125 OS2 G657A2 simplex yksimuoto LSZH 2 mm

The SYNERGY21 S215729 is a high-quality fiber optic patch cable designed for reliable single-mode transmission. With a length of 20 meters and LC/APC connectors on both ends, this simplex cable is ideal for data centers, LAN networks, FTTx, and telecommunications applications. The 9/125 µm core/cladding and OS2 category ensure excellent performance over long distances, while the G.657.A2 bend-insensitive fiber allows for tight bends without signal loss. The 2 mm diameter LSZH (Low Smoke Zero Halogen) jacket provides safety and durability in indoor installations.

Advantages

This patch cable offers low insertion loss (≤0.2 dB) and high return loss (≥60 dB), ensuring minimal signal degradation. The APC (Angled Physical Contact) polishing reduces back reflection, making it suitable for high-precision applications. The bend-insensitive design (G.657.A2) allows for flexible routing in confined spaces. LSZH jacket reduces toxic fumes in case of fire, enhancing safety.

Suitable for

• Data centers requiring high-density cabling
• Local Area Networks (LAN) with single-mode fiber
• FTTx (Fiber to the x) deployments
• Telecommunications infrastructure
• Any application needing reliable, low-loss single-mode connections

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode
• Fiber Category: OS2
• Fiber Standard: ITU-T G.657.A2 (Bend-Insensitive)
• Core/Cladding Diameter: 9/125 µm
• Configuration: Simplex (1-Fiber)
• Connector Type: LC/APC to LC/APC
• Cable Length: 20 m
• Cable Diameter: 2 mm
• Connector Polishing: APC
• Insertion Loss (Typical): ≤ 0.2 dB
• Return Loss (Typical): ≥ 60 dB
• Attenuation @ 1310nm: ≤ 0.35 dB/km
• Attenuation @ 1550nm: ≤ 0.25 dB/km
• Minimum Bend Radius: 7.5 mm
• Jacket Material: LSZH
• Operating Temperature: -20°C to +70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before mating. This cable is compatible with standard LC/APC ports. Store in a clean, dry environment.
