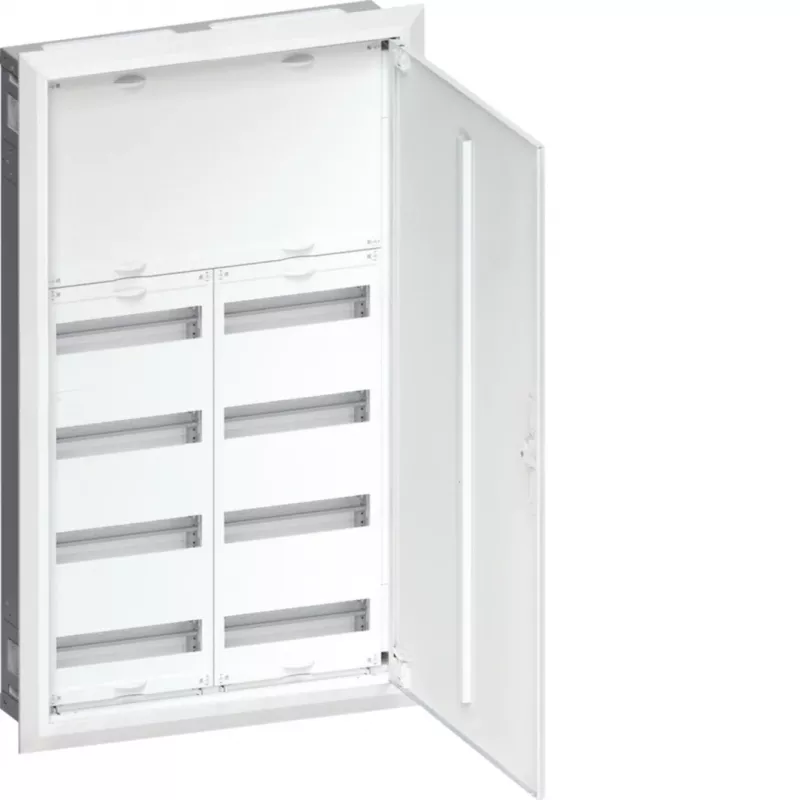

Hager FWU62N uppoasennusjakokeskus 96 PLE IP30 valkoinen

The Hager FWU62N is a high-quality flush-mounted distribution board designed for professional electrical installations. With 96 module units (PLE) across 8 rows, it provides ample space for circuit breakers, RCDs, and other DIN rail components. The steel sheet housing and door offer robust protection, while the IP30 rating and IK07 impact resistance ensure durability in indoor environments. The reversible door hinge allows flexible installation, and the white RAL 9010 finish blends seamlessly with modern interiors.

Advantages

This distribution board offers exceptional flexibility and reliability. The 12 modules per row layout simplifies wiring and organization. The flush-mount design saves space and provides a clean, professional appearance. Compliance with DIN VDE 0603-1 and DIN 43870-1 standards guarantees safety and performance.

Suitable for

• Residential and commercial electrical distribution systems
• Flush-mounted installations in walls or cavities
• Applications requiring up to 125 A rated current and 400 V AC voltage

Key specifications

• Product Type: Distribution Board / Field Distributor
• Mounting Type: Flush-mounted
• Number of Module Units (PLE): 96
• Number of Rows: 8
• Modules per Row: 12
• Protection Class (IP): IP30
• Impact Resistance (IK): IK07
• Rated Operational Voltage (Ue): 400 V AC
• Rated Current (In): 125 A
• Housing Material: Steel sheet
• Door Material: Steel sheet
• Colour: White (RAL 9010)
• Glow Wire Test: 650 °C
• Standard Compliance: DIN VDE 0603-1, DIN 43870-1
• Door Hinge Side: Reversible (left or right)
• Installation Depth: 110 mm
• Opening Width: 520 mm
• Opening Height: 1070 mm

Recommendations

For a complete installation, pair this distribution board with Hager modular devices and accessories. Ensure proper mounting and earthing according to local regulations. The board is designed for indoor use only.
