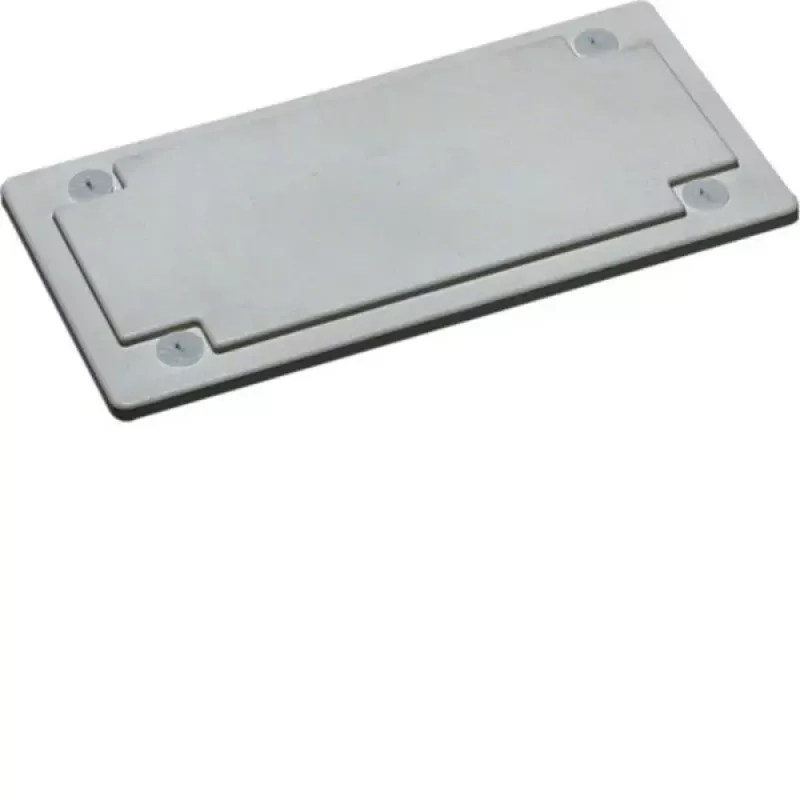

HAGER FZ404 kaapelinläpivientilevy muovi vaaleanharmaa (RAL 7035) jakokeskukselle

The HAGER FZ404 Cable Entry Plate is a high-quality plastic accessory designed for professional cable routing and sealing in electrical enclosures. Manufactured by Hager, a trusted brand in electrical distribution, this entry plate ensures reliable protection and easy installation.

Advantages

Flexible membrane design accommodates various cable diameters, providing a secure seal. Snap-in mounting allows quick and tool-free installation. Halogen-free and self-extinguishing material enhances safety. Contributes to enclosure IP44/IP55 protection ratings.

Suitable for

• Hager Volta and Univers N distribution boards and enclosures
• Top or bottom cable entry points
• Industrial and commercial electrical installations requiring cable management

Key specifications

• Product Type: Cable Entry Plate
• Material: Plastic (Polypropylene)
• Colour: Light Grey (RAL 7035)
• Mounting Type: Snap-in / Clip-on
• Cable Entry Method: Flexible Membrane
• Number of Cable Entries: Multiple flexible entries
• Halogen-free: Yes
• Flammability Rating: Self-extinguishing (UL94 V-2 equivalent)
• Operating Temperature Range: -25°C to +60°C
• Standards: EN 60670-24, RoHS, CE
• Dimensions (L x W x H): 120 x 40 x 12 mm
• Weight: 0.025 kg

Recommendations

For optimal performance, ensure the entry plate is correctly snapped into the enclosure cutout. Verify cable diameters are within the flexible membrane range. Suitable for indoor and outdoor use when combined with appropriate enclosure.
