HAGER GS20109016 2-osainen 45° C-profiili pistorasia liikennevalkoinen

Dual Schuko sockets angled at 45° for easy access in C-profile mounting, rated 16 A / 250 V AC.

Overview

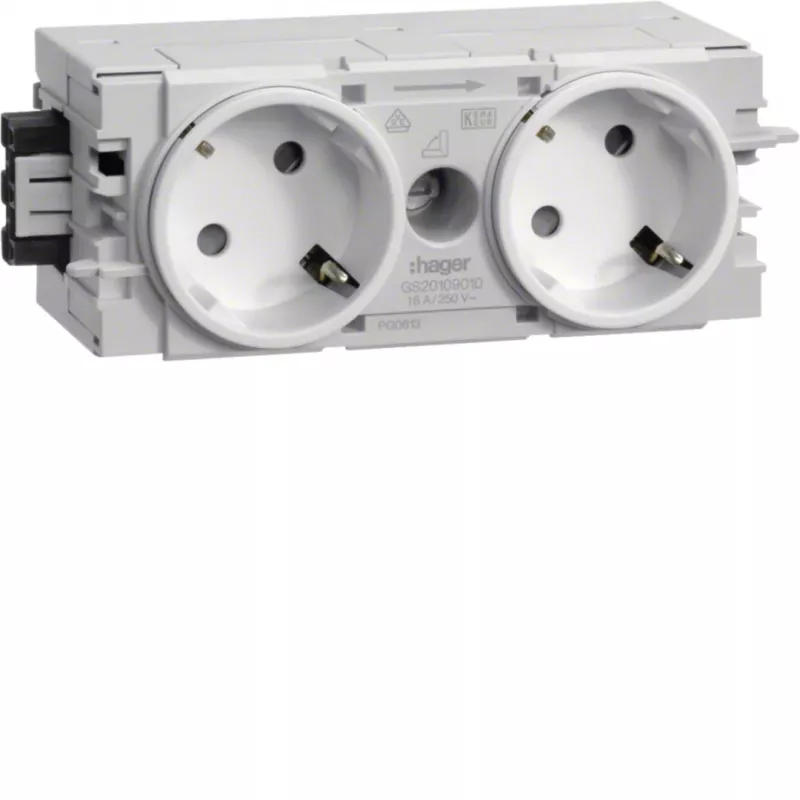

The HAGER GS20109016 is a 2-way socket outlet designed for C-profile rail mounting, featuring two Schuko (Type F) sockets angled at 45° for convenient plug insertion. Its traffic white (RAL 9016) finish blends into modern installations.

What stands out

• 2 Schuko sockets in a compact C-profile unit
• 45° angled outlets for ergonomic access
• Halogen-free thermoplastic construction
• Snap-in mounting for quick installation

Technical details

• Socket type: Schuko (Type F)
• Sockets quantity: 2
• Mounting type: C-profile rail
• Angle of sockets: 45°
• Rated voltage: 250 V AC
• Rated current: 16 A
• Frequency: 50/60 Hz
• Connection type: Screw terminals
• Max. conductor cross-section: 2.5 mm²
• Material: Thermoplastic
• Halogen-free: Yes
• Surface finish: Matt
• Colour: Traffic white (RAL 9016)
• Operating temperature: -5 to +45 °C

Our verdict

A reliable 2-way socket outlet for C-profile installations, offering angled Schuko sockets and halogen-free materials.
