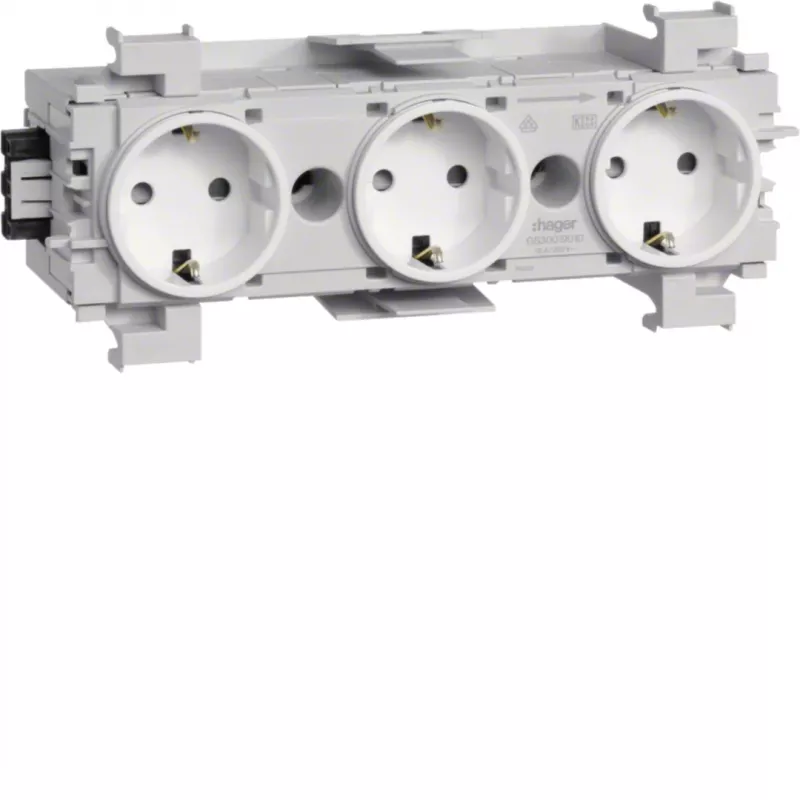

HAGER GS30019016 3-osainen pistorasia, napavalkoinen, pikaliittimet

The HAGER GS30019016 is a high-quality 3-gang socket outlet designed for flush-mounted installations. Featuring Wago quick-connect terminals (screwless), it ensures fast and secure wiring. The socket is made of halogen-free thermoplastic and comes in polar white (RAL 9010). It includes child protection (increased touch protection) and is suitable for solid conductors of 1.5-2.5 mm². Rated at 250 V AC, 16 A, 50/60 Hz, with Schuko (Type F) sockets.

Advantages

Quick-connect terminals save installation time. Child protection ensures safety. Halogen-free material is environmentally friendly.

Suitable for

• Residential and commercial flush-mounted installations
• Applications requiring multiple socket outlets in one unit

Key specifications

• Number of Sockets: 3
• Socket Type: Schuko (Type F)
• Connection Technology: Quick-Connect Terminals (Screwless)
• Rated Voltage: 250 V AC
• Rated Current: 16 A
• Frequency: 50/60 Hz
• Material: Thermoplastic, Halogen-free
• Color: Polar White (RAL 9010)
• Mounting Type: Flush-mounted
• Degree of Protection: IP20
• Child Protection: Yes
• Suitable Cable Cross-Section: 1.5 - 2.5 mm² (solid conductors)
• Number of Poles: 2P+E
• Installation Depth: 32 mm
• Orientation: Horizontal

Recommendations

For best results, use with Hager flush-mounted boxes and frames. Ensure proper cable stripping and insertion into quick-connect terminals.
