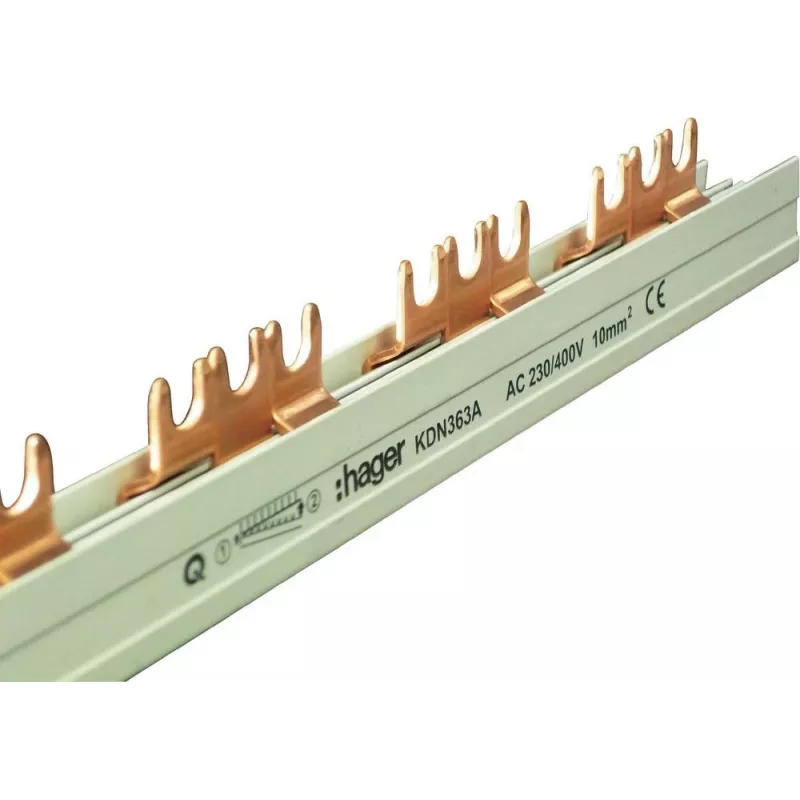

Hager KDN363A 3-napainen vaihekisko, haaraliitäntä, 10 mm², 63 A, 12 moduulia

Phase busbar for power distribution in modular electrical installations, delivering 63 A across 12 modules with a 3-pole configuration. The fork connection design ensures quick and secure attachment to circuit breakers and residual current devices.

Advantages

Electrolytic copper conductors provide excellent conductivity, while the self-extinguishing insulation enhances safety. The compact 18 mm pitch aligns with standard DIN rail devices for efficient space utilization.

Suitable for

• Distribution boards with modular devices
• Circuit breaker and RCD supply
• Three-phase power distribution

Key specifications

• Rated current: 63 A
• Conductor cross-section: 10 mm²
• Connection type: Fork
• Number of modules: 12
• Rated voltage: 230/400 V AC
• Insulation voltage: 500 V
• Short-circuit current rating: 25 kA
• Conductor material: Electrolytic copper
• Insulation material: Self-extinguishing plastic
• Colour: Grey
• Operating temperature: -25 to +70 °C
• Storage temperature: -40 to +80 °C

Recommendations

Install within an enclosure to achieve IP20 protection. Ensure proper torque on fork connections to maintain reliable contact.
