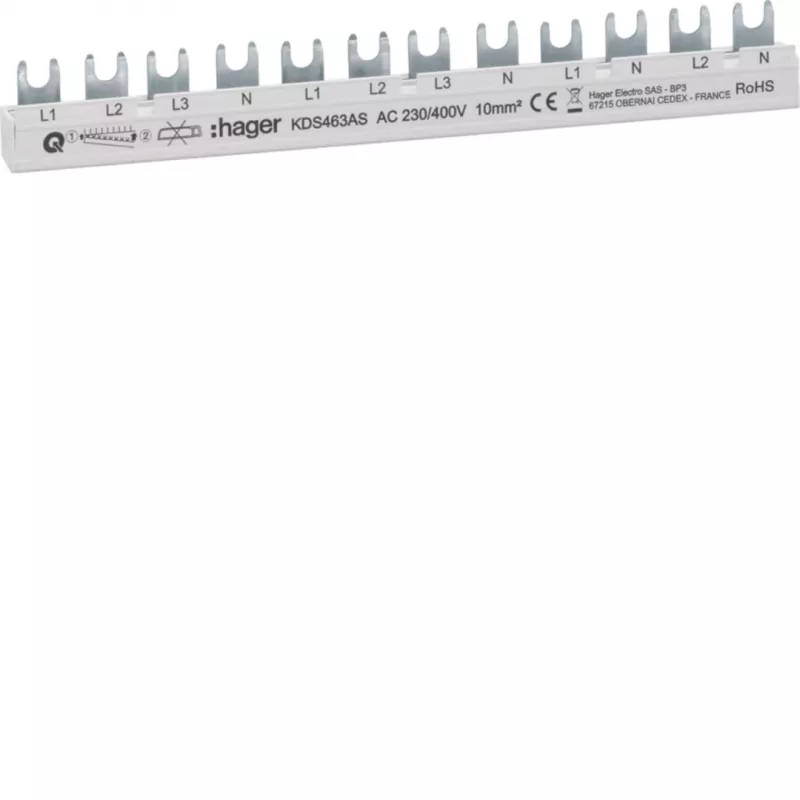

HAGER KDS463AS 3-vaiheinen 63A 12-moduulin QuickBusbar-virtakisko

This 3-phase busbar from Hager provides a fast and reliable connection for modular devices in distribution boards. With a 63 A rated current and 12 modules, it is suitable for powering MCBs, RCDs, and RCBOs. The QuickBusbar design enables tool-free installation, saving time on site.

Advantages

The fork-type connection ensures a secure fit on standard DIN rail devices. The copper conductors with 10 mm² cross-section deliver low resistance and high conductivity. The self-extinguishing plastic insulation enhances safety in the event of a fault.

Suitable for

• Distribution boards with 12 modules
• Three-phase circuits up to 63 A
• Modular devices such as MCBs, RCDs, and RCBOs

Key specifications

• Number of phases: 3
• Number of modules: 12
• Rated current: 63 A
• Connection type: Fork
• Number of poles: 3
• Module pitch: 18 mm
• Conductor material: Copper
• Conductor cross-section: 10 mm²
• Insulation material: Self-extinguishing plastic
• Rated insulation voltage (Ui): 500 V
• Rated impulse withstand voltage (Uimp): 4 kV
• Rated short-circuit current (Icw): 10 kA (1s)
• Mounting type: DIN rail compatible
• Compatibility: Modular devices (MCBs, RCDs, RCBOs)
• Design feature: QuickBusbar for fast connection
• Standards: IEC/EN 60947-7-1
• Colour: Grey

Recommendations

For a clean and efficient installation, pair this busbar with Hager distribution boards and modular devices. Always verify the total load does not exceed 63 A.
