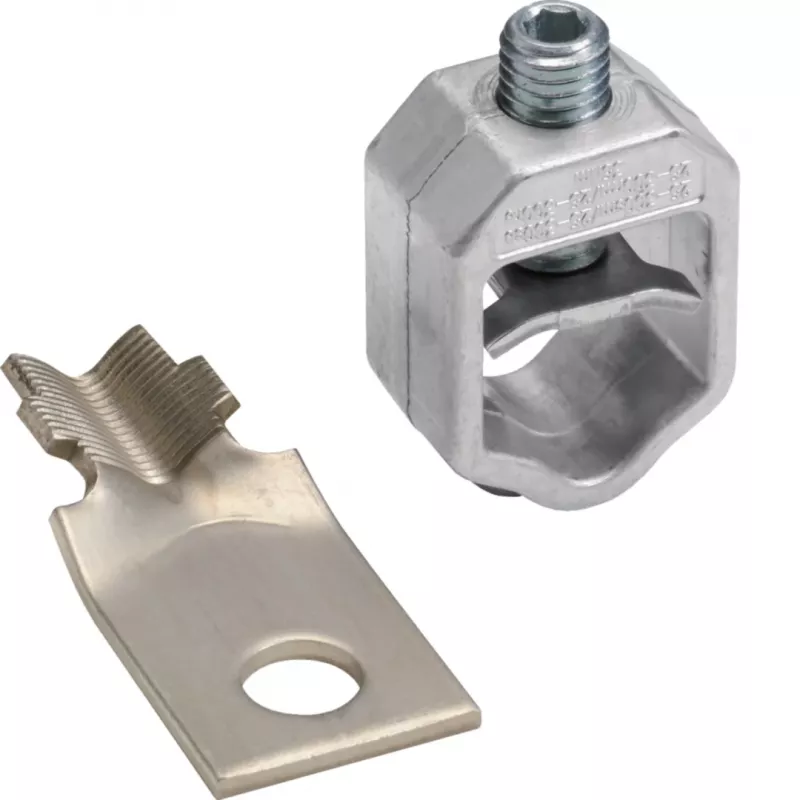

HAGER LVZAVK PEN-johdinklemmenlohko 300mm² V2N

The HAGER LVZAVK PEN conductor terminal block offers a robust connection point for combined protective earth and neutral conductors in main and sub-distribution boards. Its V2N version supports a main conductor cross-section up to 300 mm², making it suitable for high-current applications.

Highlights

• Main conductor cross-section: 300 mm²
• Branch connections: 6 (2x 16 mm², 4x 10 mm²)
• Rated voltage: 690 V AC
• Rated current: 630 A
• Mounting: DIN rail TS35 or screw mounting

In daily use

The terminal block features screw clamp technology for secure and reliable connections. Its grey polyamide housing provides insulation and mechanical protection. With an IP20 degree of protection, it is intended for installation in enclosed distribution boards.

Full specifications

• Product type: PEN conductor terminal block
• Main conductor cross-section (max): 300 mm²
• Branch conductor cross-section (max): 16 mm²
• Branch conductor cross-section (min): 10 mm²
• Number of main connections: 1
• Number of branch connections: 6 (2x 16 mm², 4x 10 mm²)
• Rated voltage (AC): 690 V
• Rated current: 630 A
• Mounting type: DIN rail (TS35) / screw mounting
• Degree of protection (IP): IP20
• Terminal type: screw terminal
• Housing material: polyamide (PA)
• Conductor material: brass (tinned)
• Operating temperature range: -25 to +70 °C
• Colour: grey
• Standards: IEC 60947-7-1
• Application: main and sub-distribution boards
• Function: combined protective earth and neutral (PEN) conductor connection
• Version: V2N
• Connection technology: screw clamp

Final note

A reliable PEN connection solution for demanding electrical installations.
