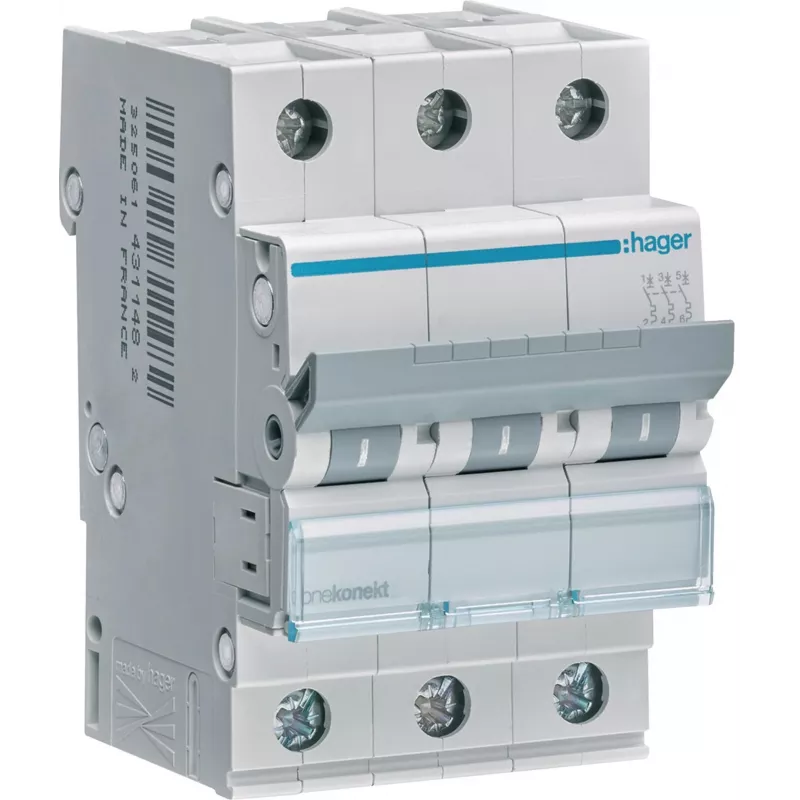

Hager MCN310E johdonsuojakatkaisija 6kA, C, 10A, 3P

The Hager MCN310E is a high-quality miniature circuit breaker (MCB) designed for reliable overcurrent protection in electrical installations. With a rated current of 10A and a C tripping curve, it is ideal for protecting circuits with moderate inrush currents, such as lighting and general power circuits. This 3-pole MCB offers a short-circuit breaking capacity of 6kA, ensuring safety and durability in residential and commercial applications.

Advantages

• Reliable protection against overloads and short circuits
• Compact design for easy installation on DIN rail
• High breaking capacity of 6kA for enhanced safety
• Suitable for a wide range of applications

Suitable for

• Residential and commercial electrical panels
• Lighting circuits
• General power distribution
• Protection of cables and equipment

Key specifications

• Product Type: Miniature Circuit Breaker (MCB)
• Number of Poles: 3P
• Rated Current (In): 10 A
• Tripping Curve: C
• Short-Circuit Breaking Capacity (Icn): 6 kA
• Rated Voltage (Ue): 230/400 V AC
• Rated Frequency: 50/60 Hz
• Mounting Type: DIN Rail
• Terminal Type: Screw terminals
• Terminal Capacity (Rigid): 1-25 mm²
• Terminal Capacity (Flexible): 1-16 mm²
• Electrical Endurance: 10000 cycles
• Mechanical Endurance: 20000 cycles
• Degree of Protection (Terminals): IP20
• Degree of Protection (Front Face): IP40
• Standard: EN 60898-1

Recommendations

For optimal performance, ensure proper installation by a qualified electrician. Always comply with local electrical regulations.
