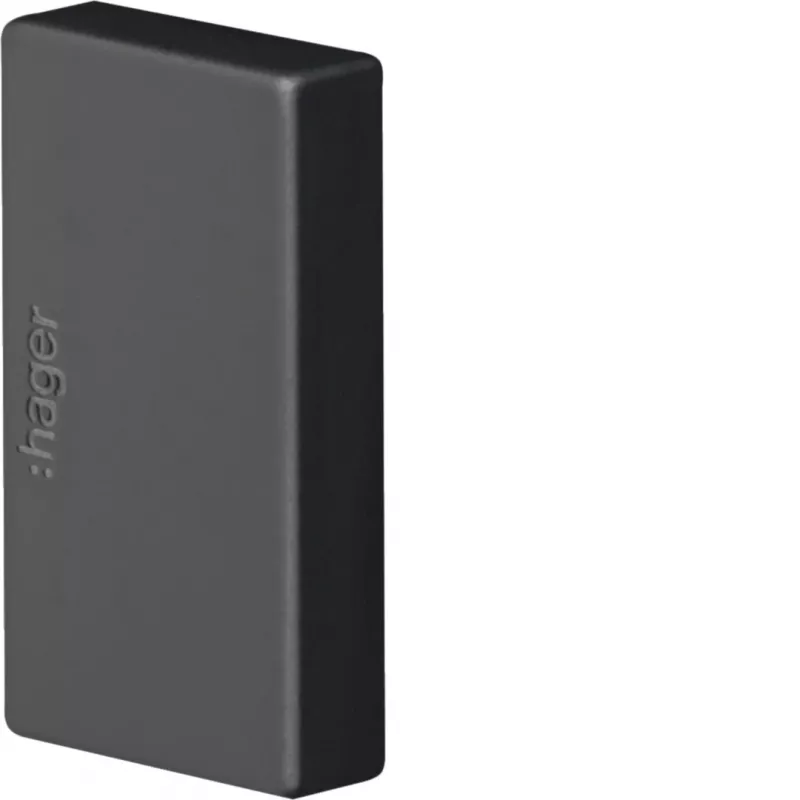

Hager päätykappale LFF2003569011 LF 20x33 mm kaapelikanavalle, grafiitinharmaa

Open cable duct ends can collect dust, damage insulation, and make installations look unfinished. The Hager End Piece LFF2003569011 closes the open end of an LF 20x33 mm cable duct cleanly and safely.

Who is it for

Electricians and installers who use Hager LF cable ducts and need a professional, neat termination at duct ends.

Main features

• Compatible with Hager LF cable duct system, size 20x33 mm (W x H).
• Graphite black colour matches the duct for a uniform look.
• Made of halogen-free plastic.
• Clip-on mounting for quick installation without tools.
• Matt surface finish.

Specifications

• Product type: End piece / end cap
• Compatible duct dimensions (W x H): 33 x 20 mm
• Colour: Graphite black
• Material: Plastic
• Halogen-free: Yes
• Mounting type: Clip-on / snap-on
• Application area: Indoor
• Surface finish: Matt
• Flammability rating: UL94 V-0
• Impact resistance: IK07
• Temperature range (operation): -5°C to +60°C
• Quantity per pack: 1 piece

Tips

Order one end piece for each open duct end. For a clean look, use the same colour end pieces as the duct.
