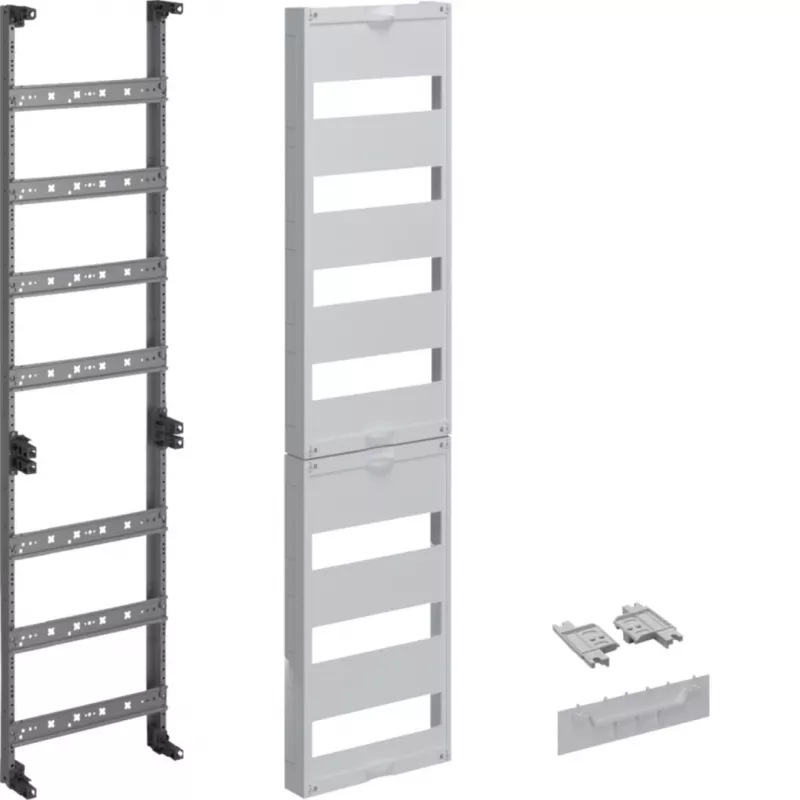

Hager universZ 1050mm 1-kenttä 7-rivinen mittarikaappi UT22B liitinrimalla (ZU37RK)

The Hager universZ ZU37RK is a high-quality meter cabinet designed for professional electrical installations. This 1-field, 7-row distribution board offers 84 TE module capacity and includes a pre-installed UT22B terminal block (5-pole, 25mm²). Ideal for flush or surface mounting, it provides reliable protection and easy organization for residential and commercial power distribution.

Advantages

Robust steel sheet construction with IP31 protection ensures durability and safety. The opaque steel door offers a clean, secure enclosure. With 12 TE per row and 1 eHZ meter place, it accommodates standard metering and modular devices efficiently.

Suitable for

• Residential and commercial electrical distribution
• Metering and sub-distribution applications
• Flush or surface mounting with appropriate accessories

Key specifications

• Brand: Hager
• Series: universZ
• Model: ZU37RK
• EAN: 3250617626873
• Number of Fields: 1
• Number of Rows: 7
• Height: 1050 mm
• Width: 250 mm
• Depth: 205 mm
• Module Units per Row: 12 TE
• Total Module Units: 84 TE
• Meter Places: 1 (eHZ / 3-point)
• Terminal Type: Without QuickConnect Terminals
• Included Terminal Block: UT22B (5-pole, 25mm²)
• Material: Steel Sheet
• Protection Class: IP31
• Door Type: Opaque Steel Door
• Color: White (RAL 9010)
• Mounting Type: Flush-mounted / Surface-mounted (with accessories)
• Rated Voltage: 400 V AC
• Rated Current: 63 A
• Standards Compliance: DIN VDE 0603-1, DIN 43870-1

Recommendations

For complete installation, order mounting brackets and covers separately. Ensure compatibility with your metering equipment.
