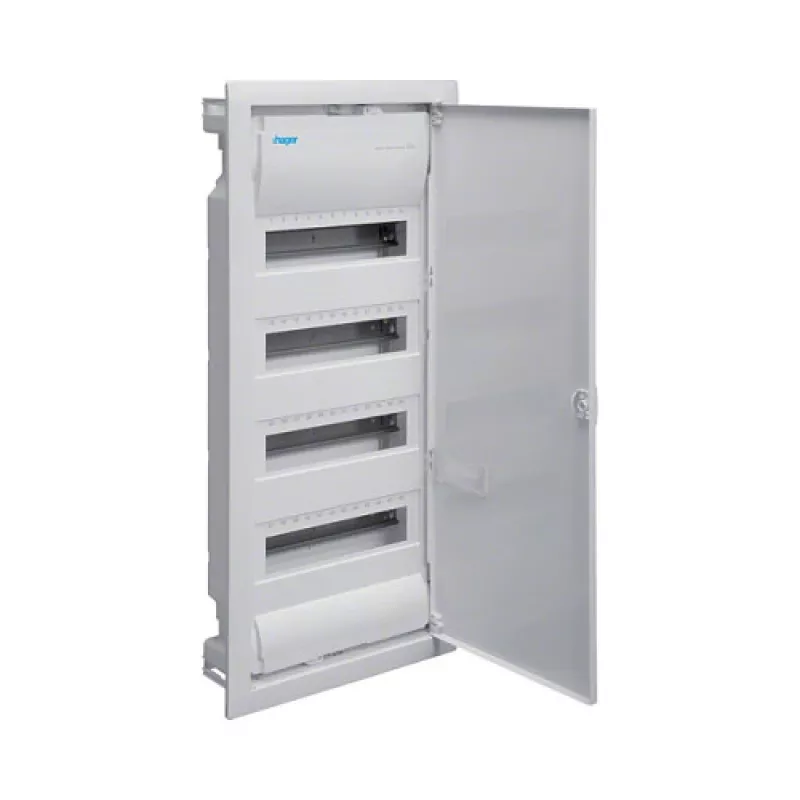

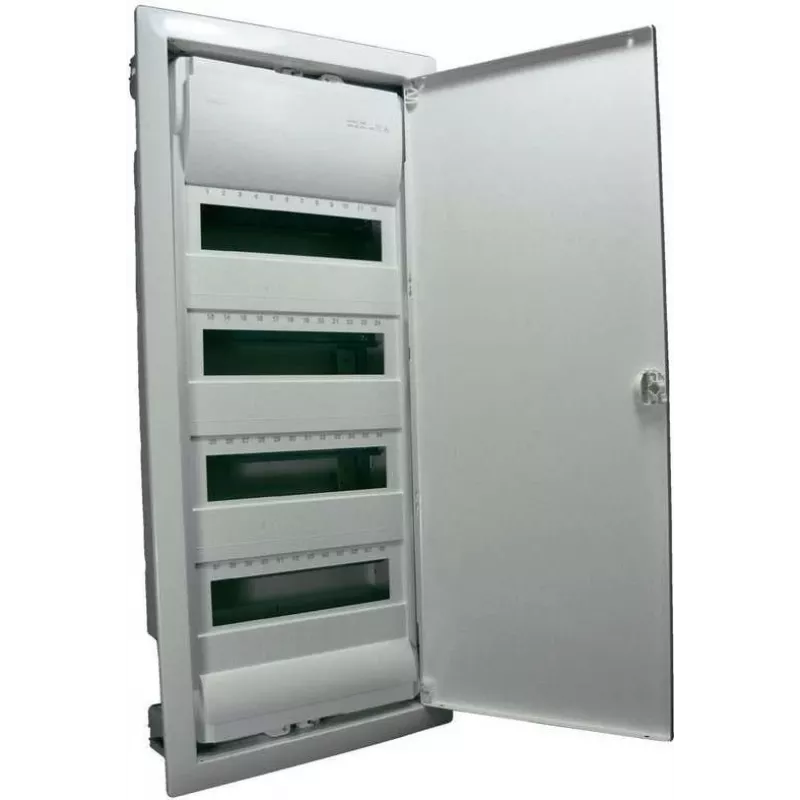

Hager VU48NC uppoasennettava pienjakokeskus, 4 riviä, 48 moduulia, valkoinen teräsovi

With 48 module units across four rows, this flush-mounted distribution board offers ample space for circuit breakers and residual current devices. The steel door in white (RAL 9010) provides a clean, durable finish, while QuickConnect PE/N terminals simplify wiring.

Overview

The Hager VU48NC is a flush-mounted small distribution board designed for residential and commercial electrical installations. It features four rows, each accommodating 12 modules, for a total of 48 module units (TE). The enclosure is made of polystyrene and includes a steel door with a white finish. It is rated for up to 63 A and 400 V AC, with an IP30 protection rating and Class II electrical insulation. The board is halogen-free and complies with DIN VDE 0603-1 and EN 61439-3 standards.

What stands out

• Four rows with 12 modules each (48 total units)
• Flush-mounted design for a neat, space-saving installation
• Steel door in white (RAL 9010) for durability and aesthetics
• QuickConnect PE/N terminals for faster, more reliable wiring
• Halogen-free construction for enhanced safety in fire conditions
• Pre-punched cable entries on top, bottom, and rear for flexible installation

Technical details

• Mounting type: Flush-mounted (Unterputz)
• Number of rows: 4
• Modules per row: 12
• Total module units: 48
• Door type: Steel door
• Door colour: White (RAL 9010)
• Protection class: IP30
• Electrical protection class: Class II (fully insulated)
• Rated current: Up to 63 A
• Rated voltage: 400 V AC
• Housing material: Plastic (Polystyrene)
• Door material: Steel sheet
• PE/N terminals: Included (QuickConnect technology)
• Installation depth: 90 mm
• Standards: DIN VDE 0603-1, EN 61439-3
• Glow wire test: 850 °C
• Halogen-free: Yes
• Cable entry: Top, bottom, rear (pre-punched)

Our verdict

The Hager VU48NC combines a high module count with a compact flush-mounted design, making it an excellent choice for installations where space is at a premium. The steel door and halogen-free materials add durability and safety, while QuickConnect terminals speed up installation.
