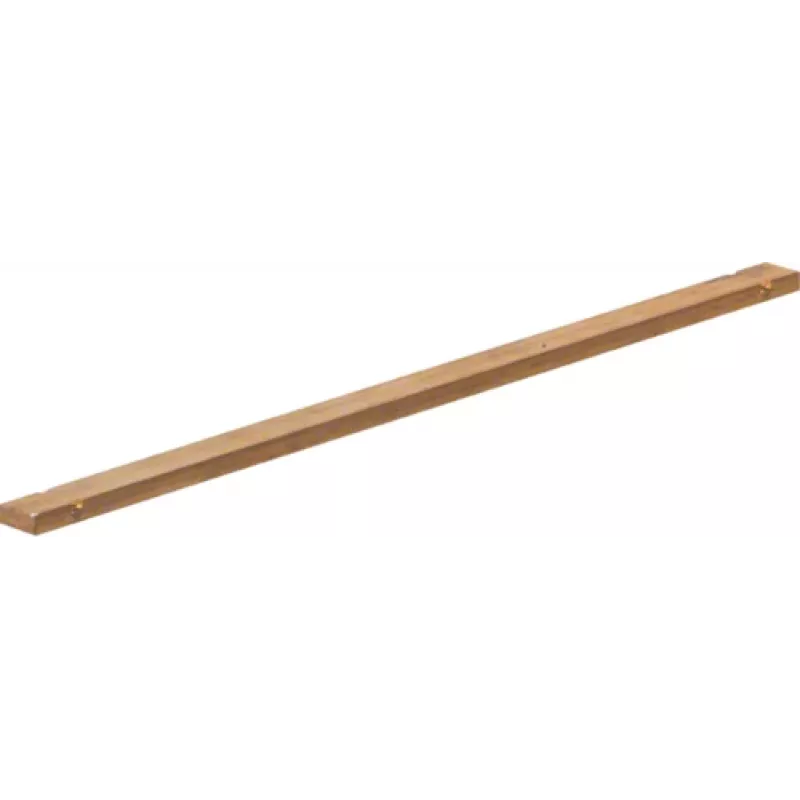

Hager ZM13C 3-vaihe tappikiskokisko 13 moduulia 63 A 750 mm

This Hager ZM13C pin busbar streamlines power distribution across 13 modules in a single run, eliminating the need for multiple short connectors. Its 3-phase design with a 63 A rating supports common residential and light commercial loads, while the 750 mm length and cuttable copper construction let you trim it to the exact width of your installation.

Highlights

• 3-phase pin busbar for modular devices like MCBs and RCDs
• Rated current 63 A at 230/400 V AC
• Fully insulated copper, 10 mm² cross-section
• Cuttable to length with 18 mm terminal spacing
• Supplies up to 13 modules in one piece

In daily use

Install the busbar behind a row of modular devices to distribute power cleanly and reduce wiring clutter. The pin-type connection fits standard Hager distribution boards, and the grey insulation keeps live parts protected. For smaller installations, the bar can be cut to the required number of modules without losing performance.

Full specifications

• Product type: Pin busbar
• Number of phases: 3
• Number of modules: 13
• Length: 750 mm
• Rated current: 63 A
• Rated voltage: 230/400 V AC
• Cross-section: 10 mm²
• Connection type: Pin
• Insulation: Fully insulated
• Cuttable: Yes
• Terminal spacing: 18 mm
• Material: Copper
• Colour: Grey
• Degree of protection: IP20 (when installed)
• Operating temperature: -25 to +70 °C
• Application: For modular devices (e.g., MCBs, RCDs)
• Number of poles: 3
• Packaging quantity: 1 piece

Final note

This busbar is a direct replacement for Hager part ZM13C and fits standard Hager distribution boards with 18 mm module spacing.
