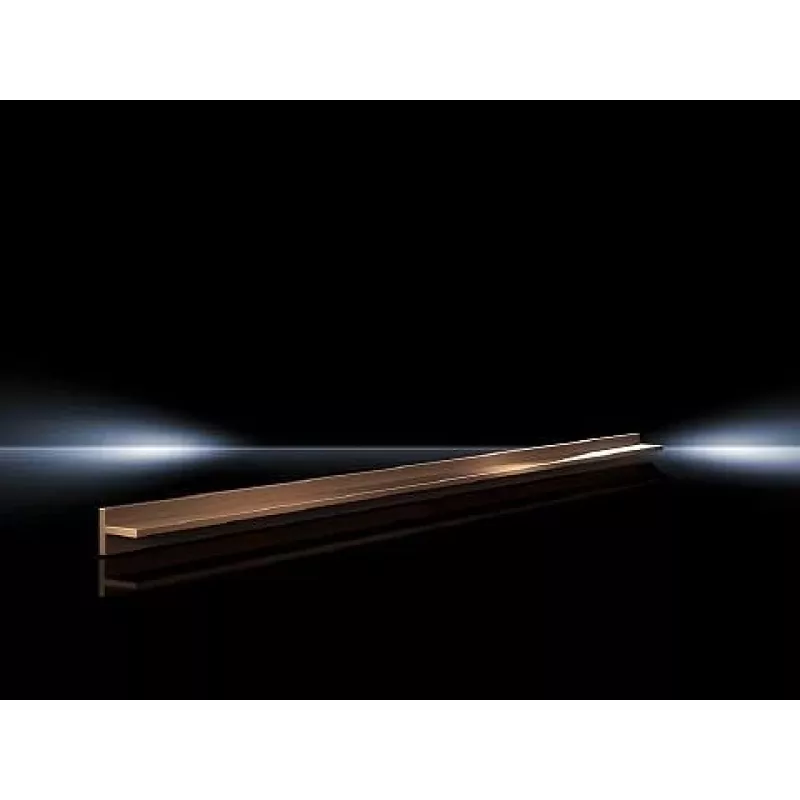

Rittal SV 9602.000 kuparikisko 700mm 30x5mm 400A 3 kpl:n pakkaus

Rated for 400 A continuous current, this 700 mm copper busbar delivers robust power distribution in compact switchgear. The Rittal SV 9602.000 is a three-piece set of electrolytic copper (E-Cu) busbars, each measuring 30 x 5 mm in cross-section. Designed for the RiLine60 system, it provides a reliable backbone for power distribution in control cabinets and switchgear assemblies.

Overview

The Rittal SV 9602.000 busbar is manufactured from high-conductivity E-Cu copper, ensuring minimal resistive losses and excellent thermal performance. Its 700 mm length and 30 x 5 mm cross-section are optimized for RiLine60 busbar holders, enabling quick and secure installation. The bare copper surface offers direct contact for connections, and the pack of three allows for three-phase distribution or extended single-phase runs.

What stands out

• High current capacity: 400 A rated current for demanding applications.
• Precision dimensions: 30 x 5 mm cross-section fits RiLine60 holders perfectly.
• Bulk pack: Three 700 mm bars for flexible configuration.
• Durable material: Electrolytic copper (E-Cu) with excellent conductivity.
• System compatibility: Designed for Rittal RiLine60 busbar system.

Technical details

• Product type: Copper busbar
• Material: E-Cu (electrolytic copper)
• Length: 700 mm
• Cross-section: 30 x 5 mm
• Rated current: 400 A
• Number of poles: 1
• Quantity per pack: 3 pieces
• Surface treatment: Untreated (bare copper)
• Compliance: IEC 61439 (system level)
• Operating temperature: up to 70 °C

Our verdict

A dependable choice for building or expanding RiLine60 power distribution. The three-pack offers practical value for three-phase setups, and the bare copper construction ensures long-term performance.
