Hallitsematon kytkin Axis 02101-002

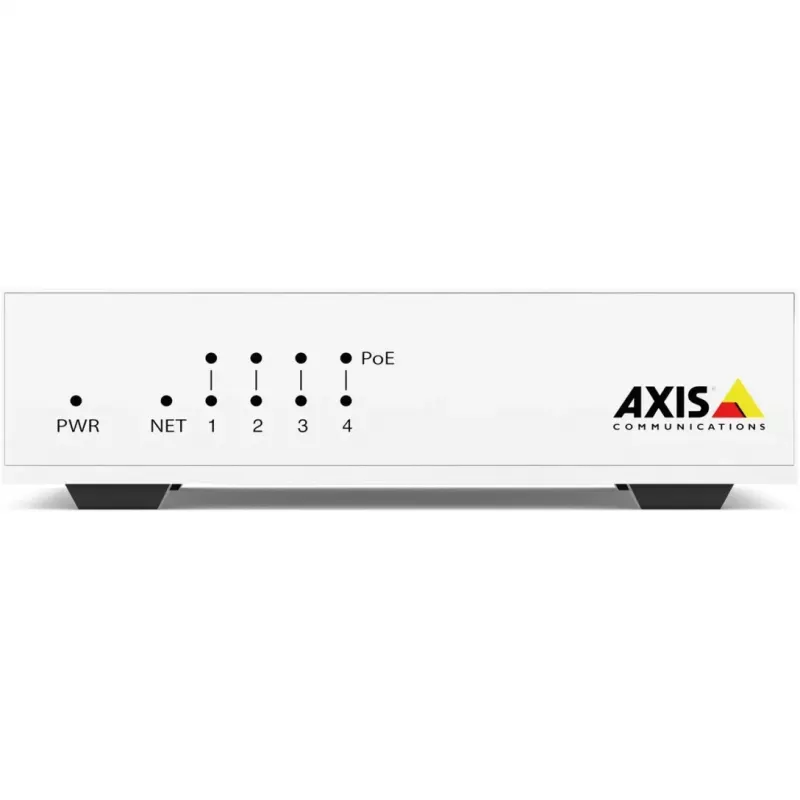

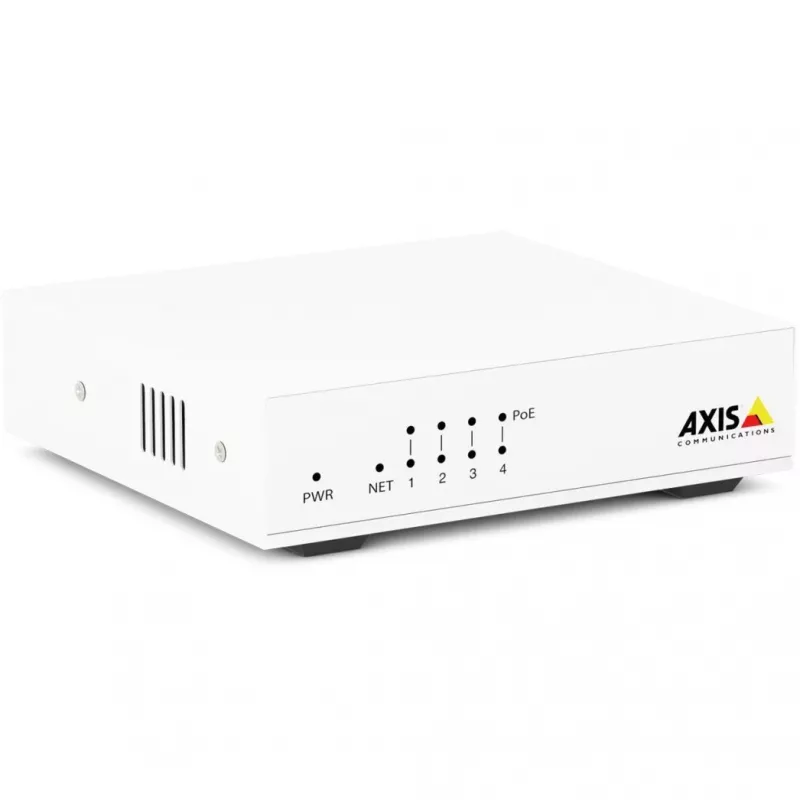

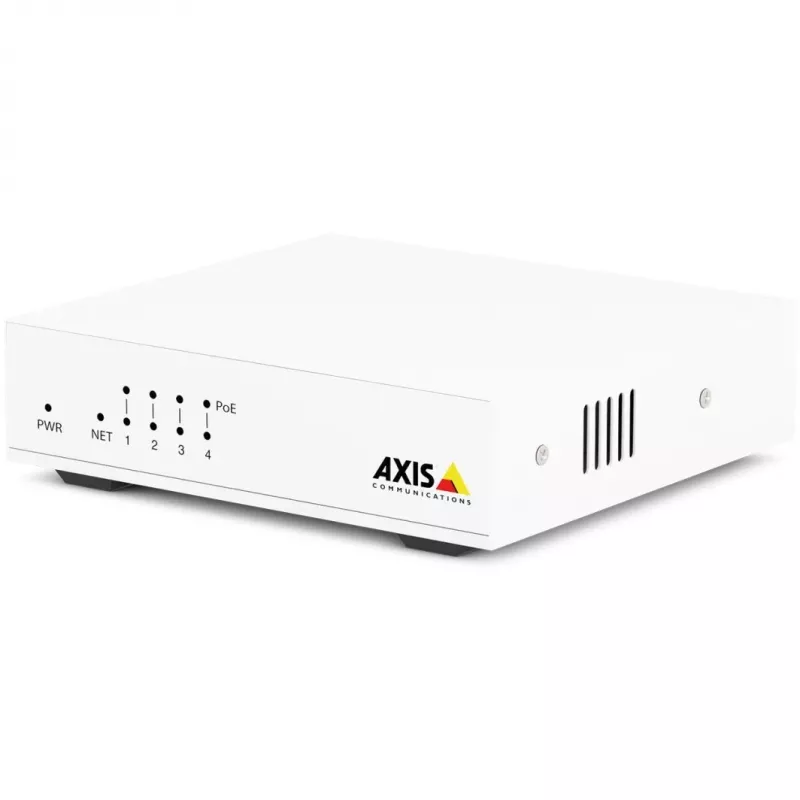

The palm-sized AXIS D8004 Unmanaged PoE Switch (AXIS 02101-002) supplies network connectivity and Power over Ethernet for up to four devices with plug-and-play installation. Compliant with IEEE 802.3af and IEEE 802.3at, this unmanaged Fast Ethernet switch is suitable as a central power source for small surveillance installations or any setup where running multiple power cables is impractical. It uses a single DC-in power connection and four RJ-45 10/100 ports to deliver both data and power to connected devices.

Advantages

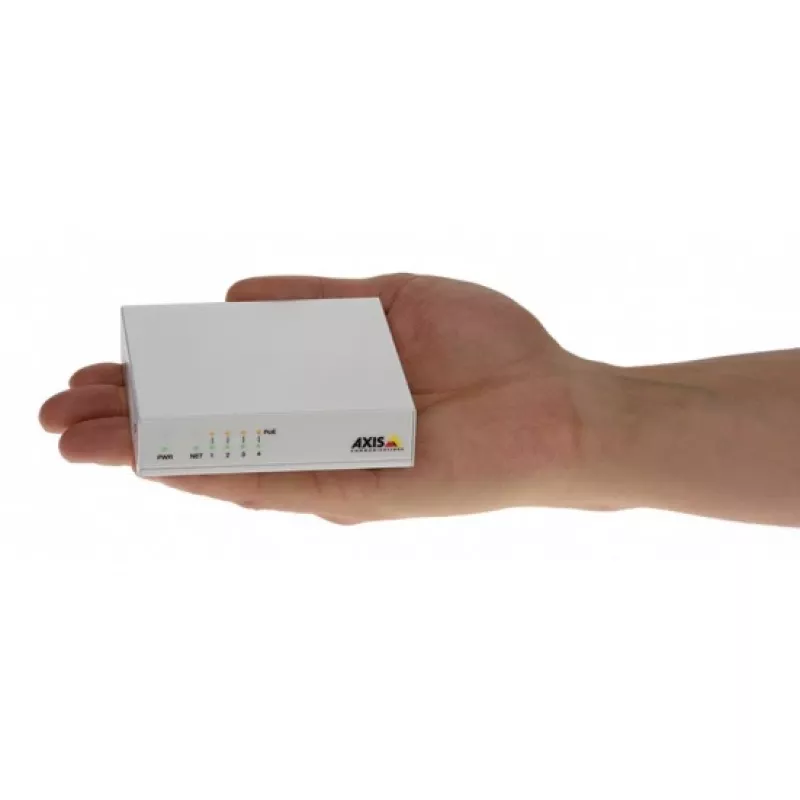

Compact and lightweight, the AXIS D8004 simplifies installation and maintenance by combining data and PoE power delivery in one unit. Its unmanaged design requires no configuration, offering straightforward plug-and-play operation. Compliance with IEEE 802.3af and 802.3at ensures compatibility with a wide range of PoE devices such as IP cameras and wireless access points.

Suitable for

• Small surveillance systems with up to four cameras
• Deployments where a single data cable from a core switch/router is preferred
• Powering PoE devices like IP cameras and wireless access points
• Simple network extensions without managed switching features

Key specifications

• Model: AXIS D8004 / AXIS 02101-002
• Ports: 4 × RJ-45 Fast Ethernet (10/100)
• PoE standards: IEEE 802.3af and IEEE 802.3at
• Switch type: Unmanaged

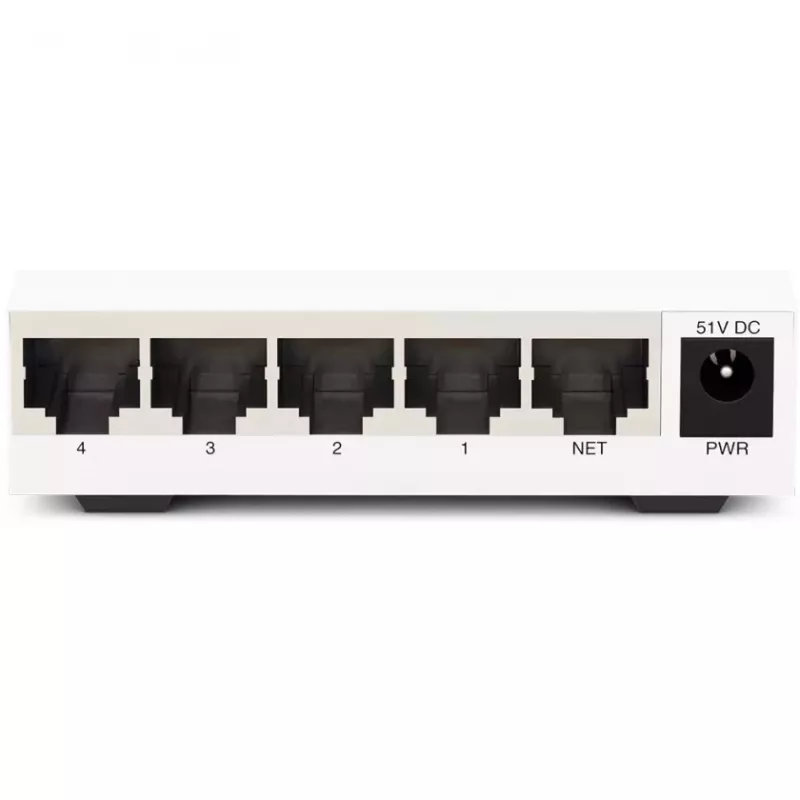

• Power input: DC-in jack
• Colour: White
• Weight: 0.172 kg

How to use

Connect a single Ethernet cable from your core switch or router to the AXIS D8004 to provide data to the unit. Plug the local DC power supply into the DC-in jack of the AXIS D8004. Connect up to four PoE-capable devices to the RJ-45 ports; the switch will automatically deliver power and network connectivity to each compatible device without further configuration.

Recommendations

Place the switch near the devices it will power to minimize cable lengths. Verify device PoE class and power requirements to ensure total available PoE budget on the AXIS D8004 meets demand. Use a suitable DC power adapter as specified by the manufacturer and ensure adequate ventilation around the unit.
