Hallitsematon kytkin DeLOCK 88014 Gigabit Ethernet 10/100/1000 musta

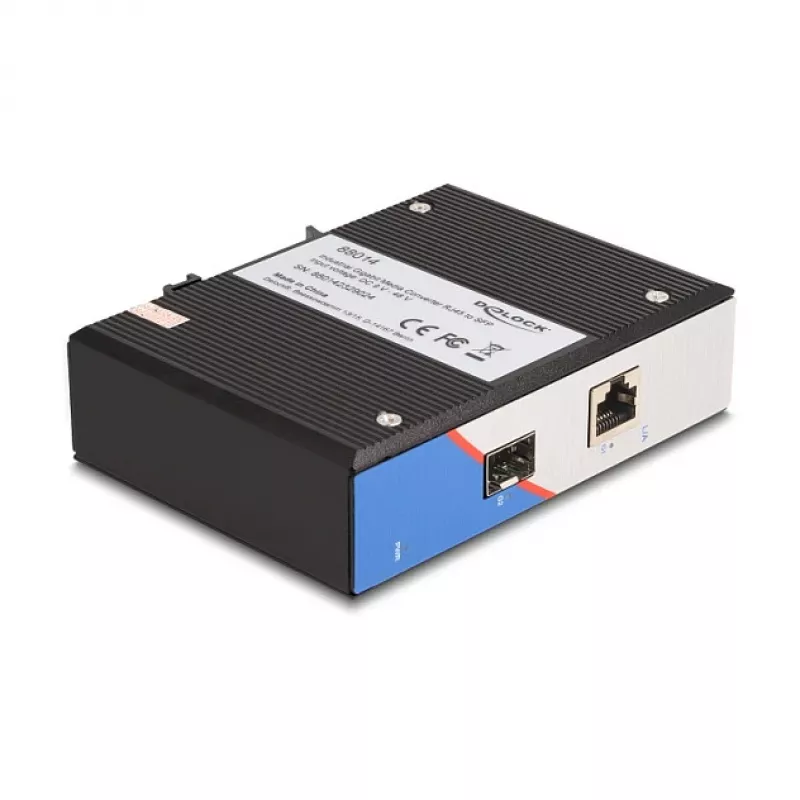

The DeLOCK 88014 is an unmanaged Gigabit Ethernet media converter and switch designed to expand networks with an optical fiber interface. It provides one 10/100/1000 Mbps Ethernet port and an SFP slot for an optional 1 Gbps SFP module, supporting standards IEEE 802.3, IEEE 802.3u, IEEE 802.3ab and IEEE 802.3z. Housed in a black enclosure, the device is suitable for integration into existing home and small office networks where a compact unmanaged solution is required.

Advantages

The device supports gigabit speeds and an interchangeable SFP module for flexible fiber connections while retaining simple, unmanaged operation. It features a redundant DC terminal power input that accepts 9 V to 48 V, allowing permanent connection to two power sources for increased availability. The switch offers a switching capacity of 1 Gbit/s and complies with common Ethernet standards to ensure compatibility with existing network equipment.

Suitable for

Key specifications

How to use

Install an appropriate 1 Gbps SFP module into the SFP slot if a fiber connection is required, then connect the Ethernet cable to the 10/100/1000 Mbps port. Provide power by wiring one or both DC terminal inputs with a compatible 9–48 V power source. After connections are made the unmanaged switch operates without configuration; LEDs indicate link and activity status.

Recommendations

For reliable operation in critical applications, use a stable DC power supply within the specified 9–48 V range and consider connecting both power inputs for redundancy. Select SFP modules that match the desired fiber type and transceiver specifications to ensure compatibility.
