Hallitsematon kytkin LevelOne FGP-2602W380 26-porttinen Fast Ethernet PoE

The LevelOne FGP-2602 series are unmanaged PoE switches with 24 RJ45 PoE ports, compliant with IEEE 802.3af/at. These switches deliver both power and data over a single Ethernet cable, supporting a maximum of 30W per port and offering total power budgets of 150W, 250W, 380W, 500W, or 630W. Designed for flexible deployment, the devices can be used on a desktop or mounted in a 19-inch rack.

Advantages

The FGP-2602 series provides a simple, cost-effective way to deploy PoE infrastructure for small and medium businesses. With IEEE 802.3af/at compatibility and up to 30W per port, the switches support a wide range of PoE devices while centralizing power delivery and data transmission over standard Ethernet cabling. Rack-mountable design and desktop placement options increase installation flexibility.

Key specifications

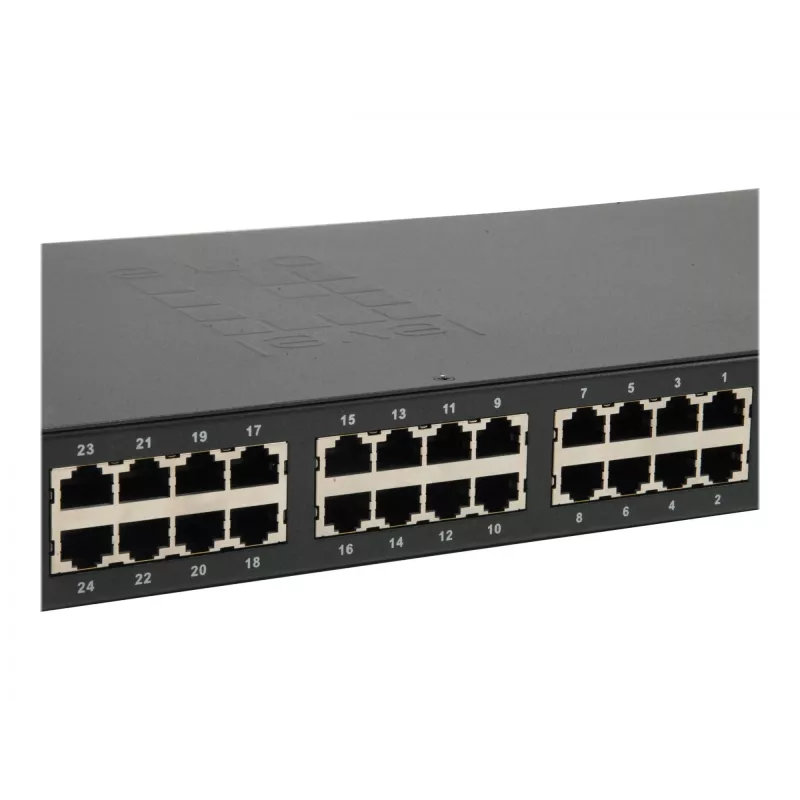

• Ports: 24 x RJ45 PoE ports
• PoE standard: IEEE 802.3af/at compliant
• Power per port: up to 30W
• Total power budget: 150W / 250W / 380W / 500W / 630W (depending on model)
• Management: unmanaged

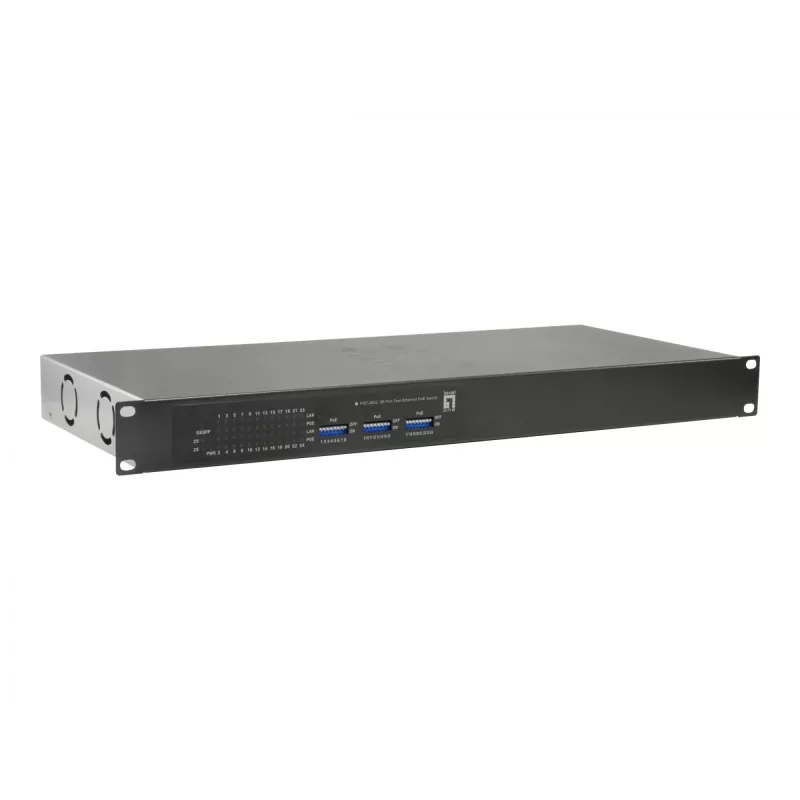

• Mounting: desktop or 19-inch rack-mountable

How to use

Install the FGP-2602 switch on a desktop or mount it in a 19-inch rack according to available space. Connect Ethernet cables from PoE-enabled ports to compatible devices; the switch will supply both data and power over the same cable. Ensure the connected devices’ power requirements do not exceed per-port or total budget limits and select the appropriate model based on required total PoE budget.

Recommendations

Choose the FGP-2602 model with a total power budget that covers the combined power draw of all connected PoE devices, and verify device compatibility with IEEE 802.3af/at standards to ensure reliable operation.
