Hallitsematon kytkin PLANET IGS-800T 8-porttinen Gigabit Ethernet 10/100/1000

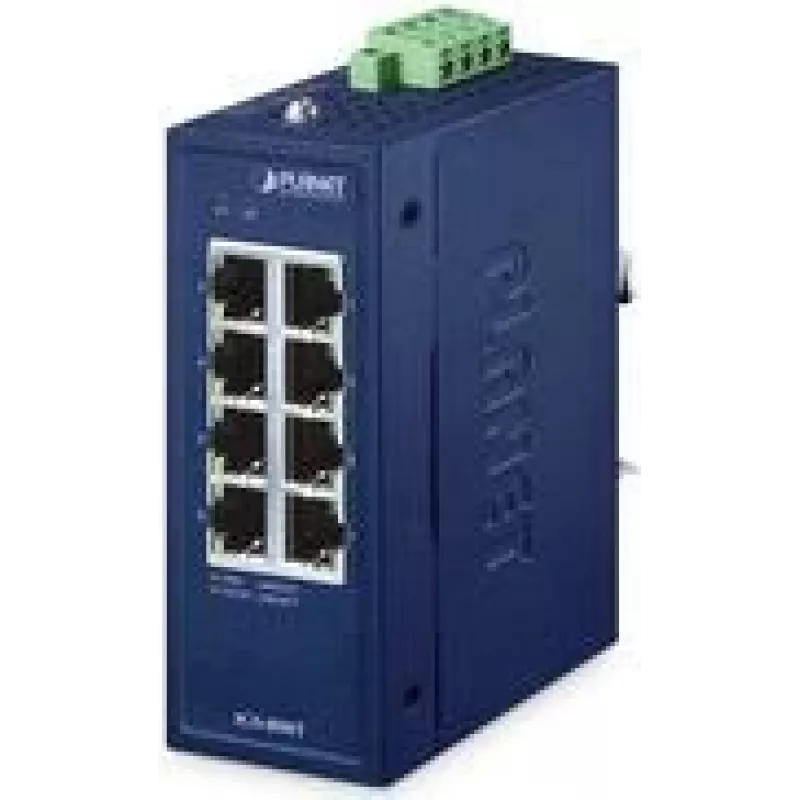

PLANET IGS-800T is an unmanaged compact industrial 8-port Gigabit Ethernet switch providing 10/100/1000 Mbps auto-negotiation on all RJ45 ports. Housed in an IP30-rated rugged metal case, the switch supports wide-range dual power input (9–48 V DC or 24 V AC) and an operating temperature range of -40 to 75 °C, making it suitable for harsh industrial environments and space-limited installations such as wall enclosures or DIN-rail setups.

Advantages

The IGS-800T delivers non-blocking, wire-speed throughput up to 16 Gbit/s with a 4K MAC address table and flow control for reliable packet transfer without loss. It implements energy-saving features including Auto Power Savings and IEEE 802.3az EEE to reduce power consumption by detecting link and traffic status. The rugged compact design, broad voltage range for redundant power input and plug-and-play operation simplify deployment in industrial and IIoT/AIoT networks.

Suitable for

• Small industrial networks and machine-level automation
• IIoT/AIoT edge deployments requiring reliable wired connectivity
• Space-constrained installations such as wall enclosures or cabinets
• Systems needing redundant power input for high availability

Key specifications

• Switch type: Unmanaged
• Ports: 8 × 10/100/1000T RJ45, auto-negotiation, auto-MDI/MDI-X
• Switching capacity: 16 Gbit/s
• MAC address table: 4K entries
• Power input: 9–48 V DC or 24 V AC (dual power input)
• Power-saving: IEEE 802.3az (EEE), link-on/link-down power saving
• Operating temperature: -40 to 75 °C
• Protection: IP30 rugged metal case
• Mounting: Wall mount or DIN rail
• Weight: 0.305 kg

How to use

Install the IGS-800T in the chosen location using the provided wall-mount or DIN-rail brackets. Connect Ethernet devices to the RJ45 ports using Cat5/5e/6 cables; the switch will auto-negotiate speeds and MDI/MDI-X automatically. Provide power using either of the supported inputs (9–48 V DC or 24 V AC); when two power sources are connected the hardware failover maintains operation if one source fails. No configuration is required for basic operation—connect devices and the switch will forward traffic at wire speed.

Recommendations

For reliable operation, use shielded or unshielded Cat5e/Cat6 cables for Gigabit links, ensure proper grounding of the IP30 metal enclosure, and connect dual power sources when high availability is required. Place the switch in a ventilated location within the specified temperature range and avoid exposure to liquids or conductive dust.
