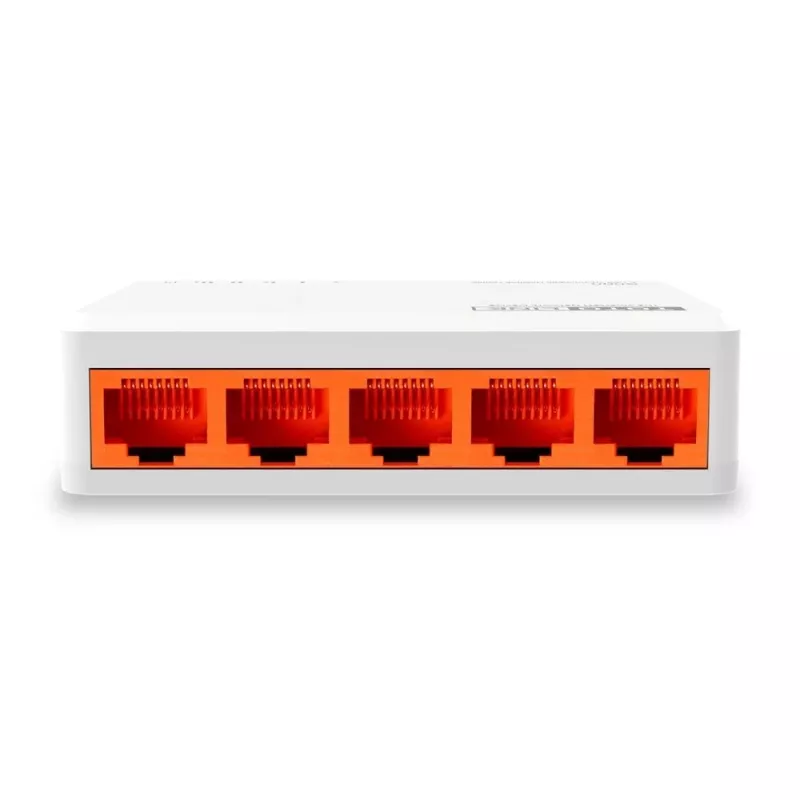

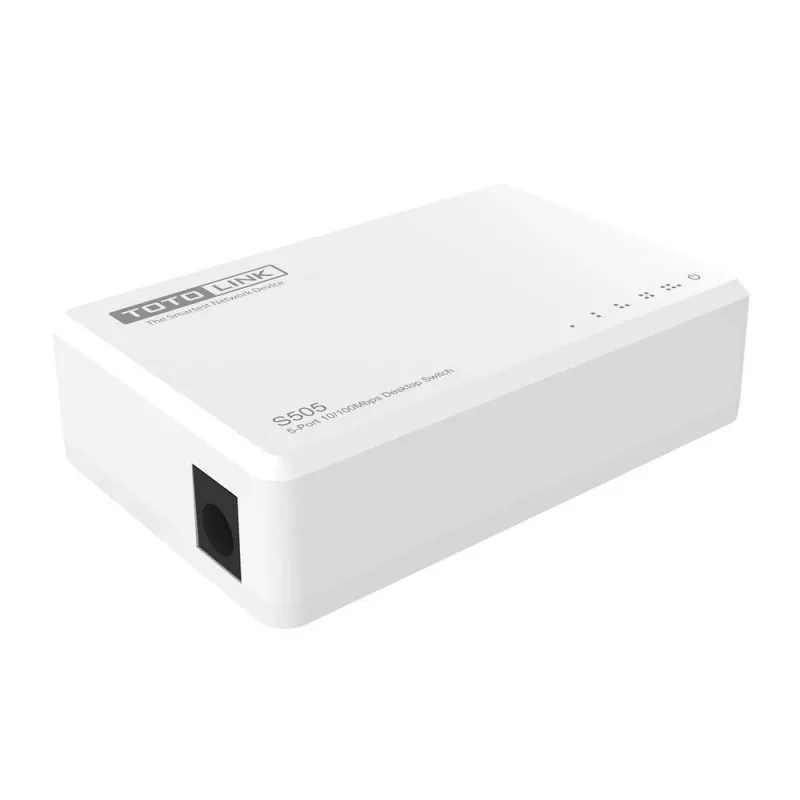

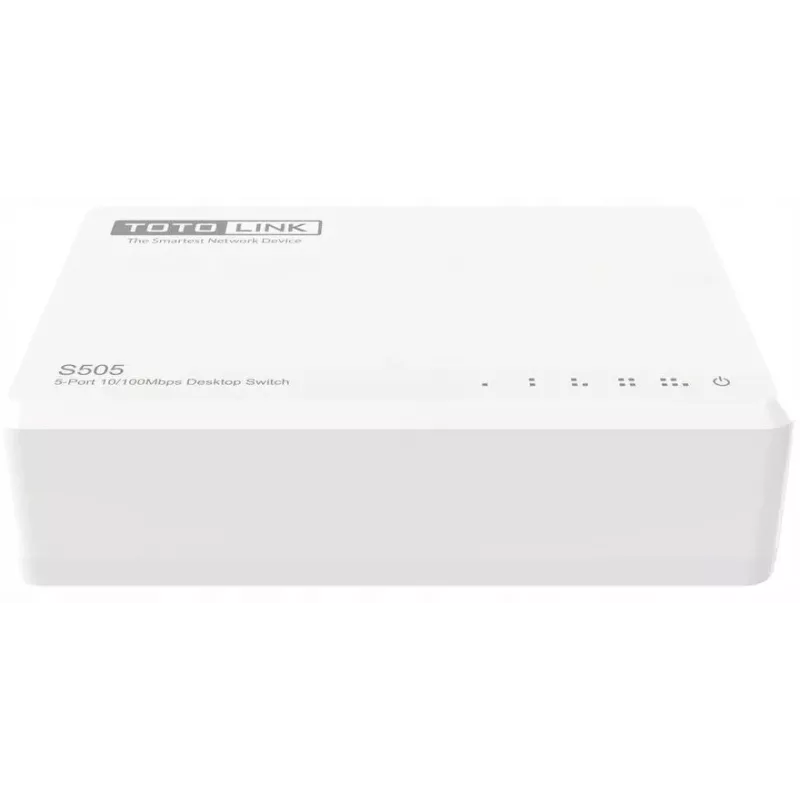

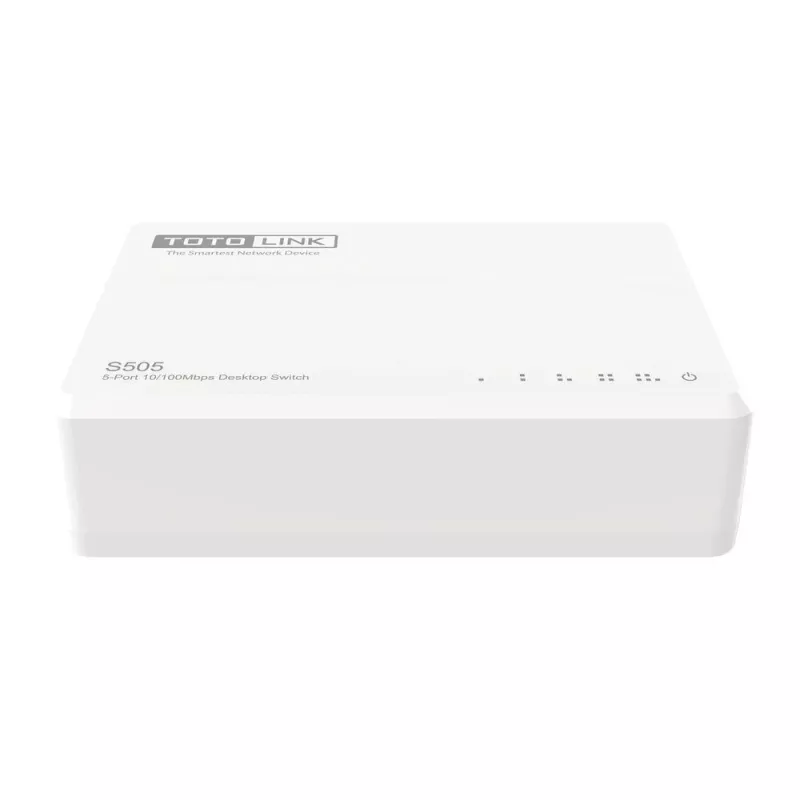

Hallitsematon kytkin TOTOLINK S505-V5 5 porttia Fast Ethernet 10/100 valkoinen

The TOTOLINK S505-V5 is an unmanaged 5-port Fast Ethernet switch offering five 10/100 Mbps RJ45 ports with Auto MDI/MDIX. Designed for small wired networks, it supports IEEE 802.3, 802.3u and 802.3x standards, full duplex operation and auto-negotiation between 10Base-T and 100Base-TX. The compact white housing is wall-mountable and suitable for expanding home or small office networks without configuration.

Advantages

The S505-V5 provides plug-and-play connectivity with Auto MDI/MDIX on every port, eliminating the need for crossover cables and simplifying cable deployment. It forwards and filters packets at full cable speed and includes LED indicators for link status and activity. Its small form factor makes it easy to place or mount in constrained spaces.

Suitable for

• Expanding a home wired network
• Small office or SOHO network extension
• Connecting computers, NAS, printers or IP devices
• Temporary setups where simple network expansion is needed

Key specifications

• Ports: 5 x 10/100 Mbps RJ45 (Fast Ethernet)
• Switch type: Unmanaged
• Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Auto MDI/MDIX: Yes (on all ports)
• Switching capacity: 1 Gbit/s
• MAC address table: 1000 entries
• Color: White

How to use

Connect the S505-V5 to your existing router, modem or switch using a standard Ethernet cable; ports will automatically detect speed and duplex settings. Plug network devices into the remaining RJ45 ports. Power the unit, check the LEDs for link/activity, and devices will communicate immediately—no configuration required.

Recommendations

Place the switch in a well-ventilated location and avoid exposure to moisture. For best performance, use quality CAT5e or CAT6 Ethernet cables and mount the device on a wall or flat surface to reduce interference and cable strain.
