Hallittava kytkin DIGITUS DN-651159 16+2-porttia Gigabit Ethernet PoE

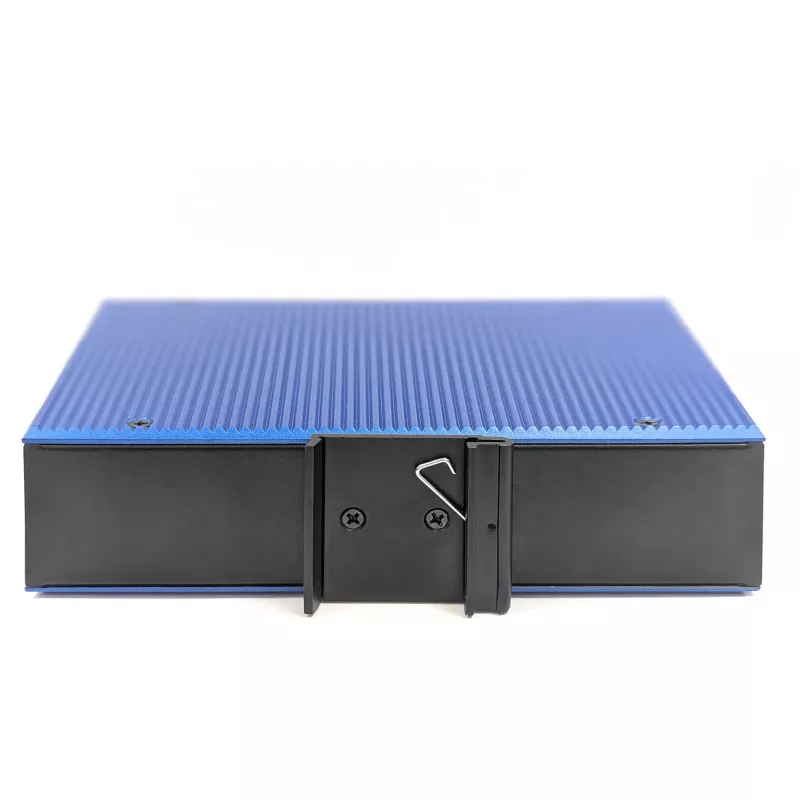

The DIGITUS DN-651159 Managed Switch is a Layer 2 industrial-grade Ethernet switch with 16 Gigabit RJ45 ports and 2 Gigabit SFP uplink ports. Ports 1–16 support IEEE 802.3af/at PoE with up to 30 W per port. The switch is housed in an IP40 metal enclosure with redundant 48–57 V DC power inputs, mounts easily on a top-hat rail and operates in extreme temperatures from -40 °C to 80 °C. It is designed for monitoring, control management and wireless services, and includes ESD/EFT protection up to 6 kV (DC).

Advantages

The switch provides full Layer 2 manageability including VLAN, spanning tree protocols and fast recovery, link aggregation and flow control for improved network performance. It supports IGMP and MLD snooping for multicast optimisation, ACL-based security and QoS for traffic prioritisation. Redundant power inputs and rugged metal IP40 housing ensure reliable operation in industrial environments. PoE on all 16 RJ45 ports simplifies deployment of cameras and wireless devices.

Suitable for

• Connection of IP camera systems and video surveillance
• Powering and connecting wireless access points and remote radios
• Industrial control and monitoring networks
• Small to medium managed edge networks requiring PoE and SFP uplinks

Key specifications

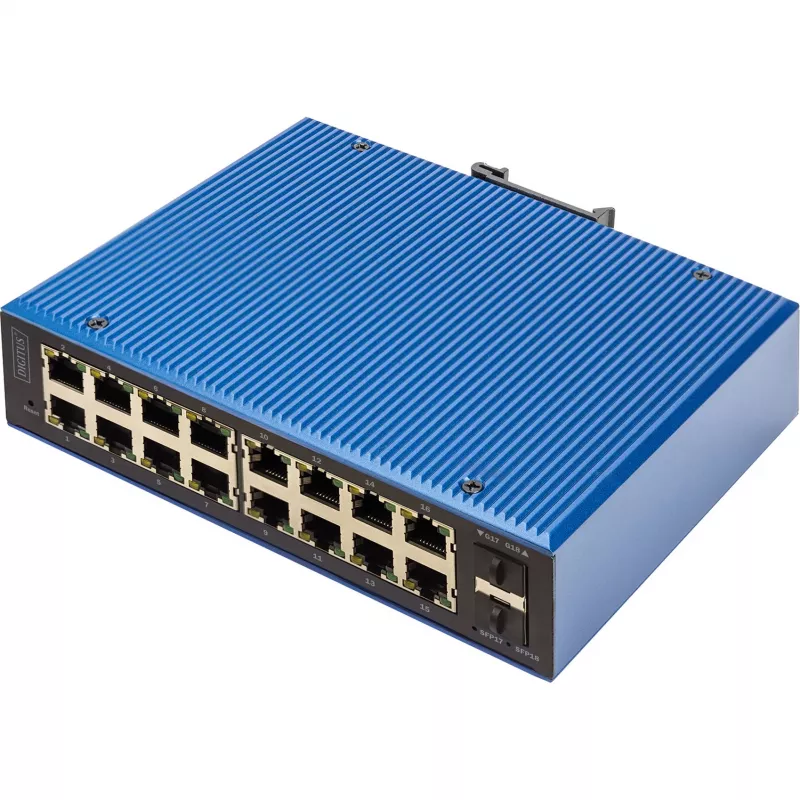

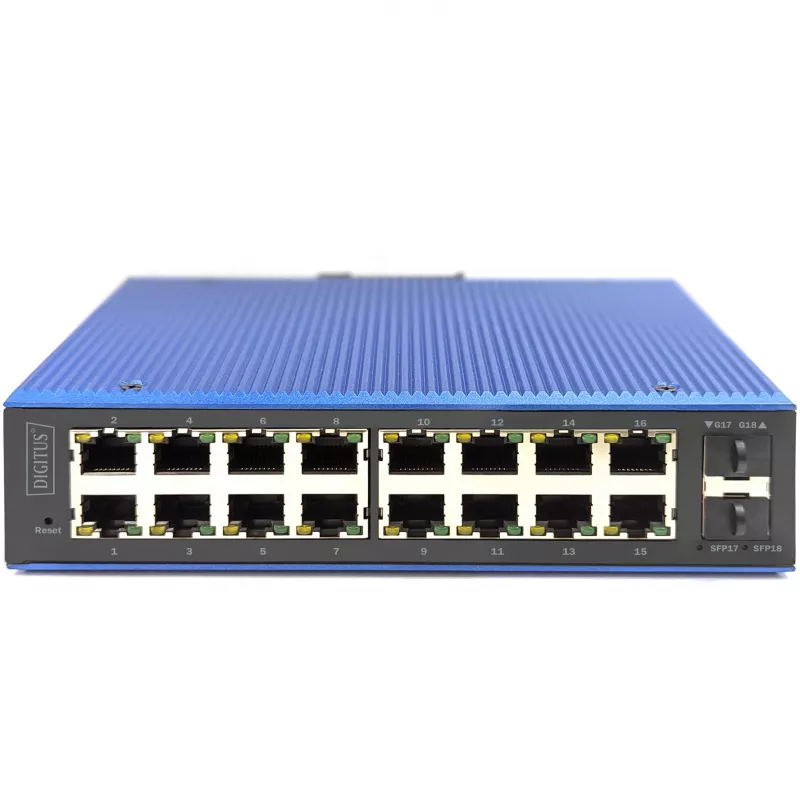

• Ports: 16 x 10/100/1000 BASE-TX RJ45 (PoE IEEE802.3af/at), 2 x 1000Base-FX (SFP)
• PoE power per port: up to 30 W
• Switch type: Managed Layer 2

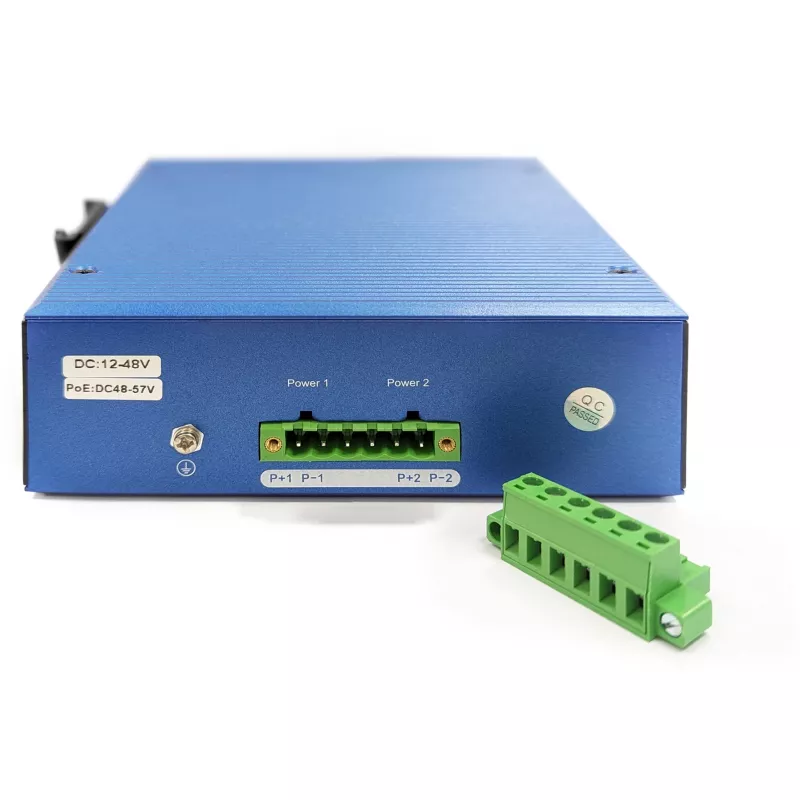

• Redundant power supply: 48–57 V DC
• Operating temperature: -40 °C to 80 °C
• Housing: Metal, IP40
• ESD & EFT protection: up to 6 kV (DC)
• MAC address table: 8000 entries (manufacturer data)
• Weight: 1.2 kg

How to use

Mount the switch on a standard top-hat rail and connect the redundant 48–57 V DC power feeds. Connect network devices to the RJ45 ports and SFP uplinks as required. Configure Layer 2 features such as VLANs, link aggregation, spanning tree, QoS and ACLs using the management interfaces (SNMP, CLI or web management where available). Enable PoE on required ports to power cameras or access points, observing the per-port 30 W limit and overall power budget of the power supply.

Recommendations

For reliable PoE operation, calculate total power consumption of connected devices to ensure the redundant DC supply can support the load. Use SFP uplinks for fiber connections to aggregation switches and enable IGMP/MLD snooping when using multicast video streams. Install the switch in a ventilated location to maintain operating temperature within the specified -40 °C to 80 °C range.
