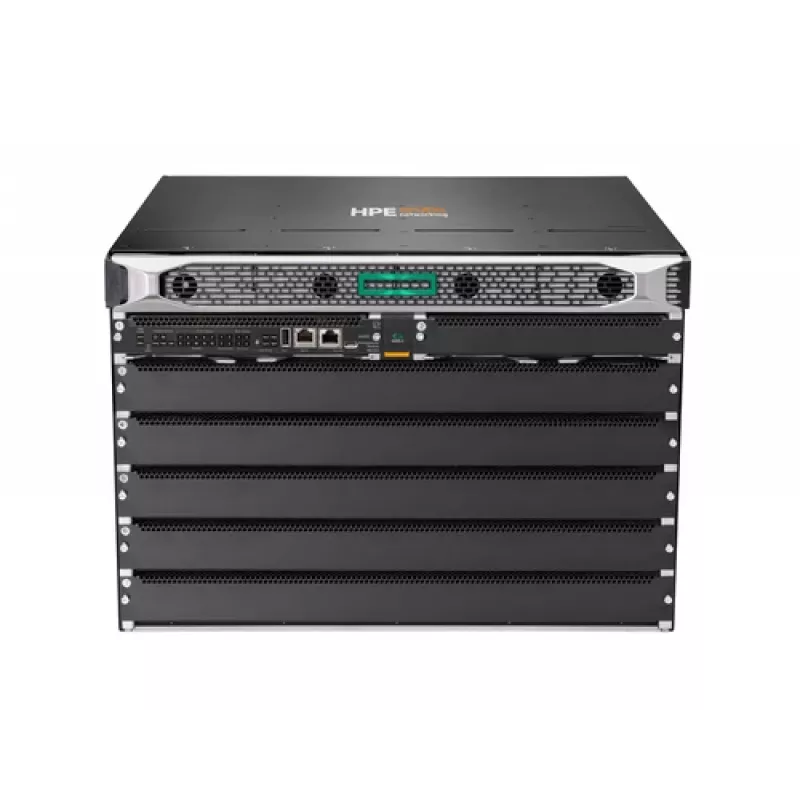

HPE Aruba CX 6405 v2 kytkinrunko

The HPE Aruba CX 6405 v2 is a managed modular switch chassis designed for enterprise and data center networks. It features a 7U rack-mountable form factor and supports stacking, with a routing/switching capacity of 14000 Gbit/s.

Key features

• Managed switch type
• Stackable
• Rack-mountable 7U form factor
• Power over Ethernet (PoE) support
• Built-in processor
• 10G support

Specifications

• Brand: HPE
• MPN: R0X26C
• Ethernet LAN: Yes
• Routing/switching capacity: 14000 Gbit/s
• Throughput: 20000 Mpps
• Network standards: IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
• Processor: ARM Cortex-A72 at 1800 MHz
• Memory type: DDR4-SDRAM
• Memory capacity: 8000 MB
• Flash memory: 32000 MB
• Power source: AC
• Power supply included
• AC input voltage: 200 - 240 V
• Latency: 1G: 5.32 μSec, 10G: 1.48 μSec, 25G: 2.78 μSec, 40G: 1.31 μSec, 100G: 1.42 μSec
• Other connections: High speed, non-blocking 1/10/25/40/50/100GbE ports
• 10 I/O module slots maximum depending on model
• Fans: Two field replaceable system fan trays
• Operating temperature: 0 - 45 °C
• Width: 528.8 mm
• Depth: 442.6 mm
• Height: 448.5 mm
• Weight: 53.5 kg
