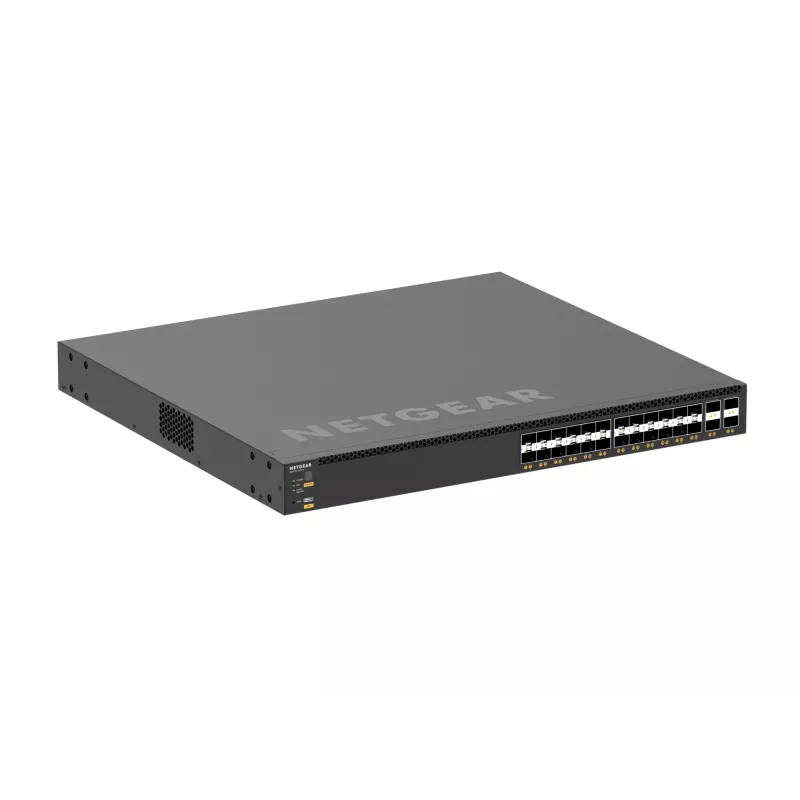

Hallittava kytkin NETGEAR M4350-24F4V L3 1U musta 680 Gbit/s

The NETGEAR M4350-24F4V is a managed Layer 3 switch designed for professional AV-over-IP and enterprise networking. This 1U rack-mountable unit offers 24 ports, high switching capacity (680 Gbit/s) and a compact 15.75 in (40 cm) depth suitable for edge-to-core deployments. The switch includes management ports such as two USB 2.0 and a console port and supports common networking standards for robust integration.

Advantages

The switch supports port speeds from 1 Gigabit to 100 Gigabit in a compact form factor and delivers automatic configuration features (auto-trunk and auto-LAG) for simplified interoperation with other M4350 and M4250 models. NETGEAR IGMP Plus™ provides multicast support out of the box for AV-over-IP applications, while an AV-focused graphical user interface enables quick assignment of AV profiles to individual ports. The device is available in a sleek, black 1U chassis with optional quiet mode to reduce fan noise during events.

Suitable for

• Professional AV-over-IP installations (video distribution, digital signage)
• Data center edge and core stacking in constrained-depth racks
• Enterprise networks requiring Layer 3 managed switching
• Event venues and auditoriums where reduced fan noise is desired

Key specifications

• Model: NETGEAR M4350-24F4V (XSM4328FV-100NES)
• Switching capacity: 680 Gbit/s
• Ports: 24 (supporting 1G–100G speeds)
• Form factor: 1U rack-mountable, depth 15.75 in (40 cm)
• Management interfaces: 2 × USB 2.0, console port
• Switch type: Managed Layer 3
• Networking standards: IEEE 802.1D/Q/Qav/1s/1w/1x, IEEE 802.3 family (including 802.3ab/ad/ak/bz/u)
• Weight: 6.25 kg
• Color: Black

How to use

Install the M4350-24F4V into a standard 19-inch rack using the included mounting ears. Connect uplink and access devices to the appropriate ports, then use the built-in AV GUI or command-line console to assign configuration profiles to individual ports. For AV deployments, enable the factory AV profile or create a custom profile and verify multicast settings. Use the USB or console ports for local management tasks or firmware updates.

Recommendations

For AV-over-IP use, enable NETGEAR IGMP Plus™ and choose the AV profile suited to your video streams; enable quiet mode during live events to reduce fan noise. When stacking with other M4350 or M4250 switches, keep auto-trunk and auto-LAG enabled for fastest integration.
