Hallittava L2+ verkkokytkin PLANET IGS-5225-4P2S

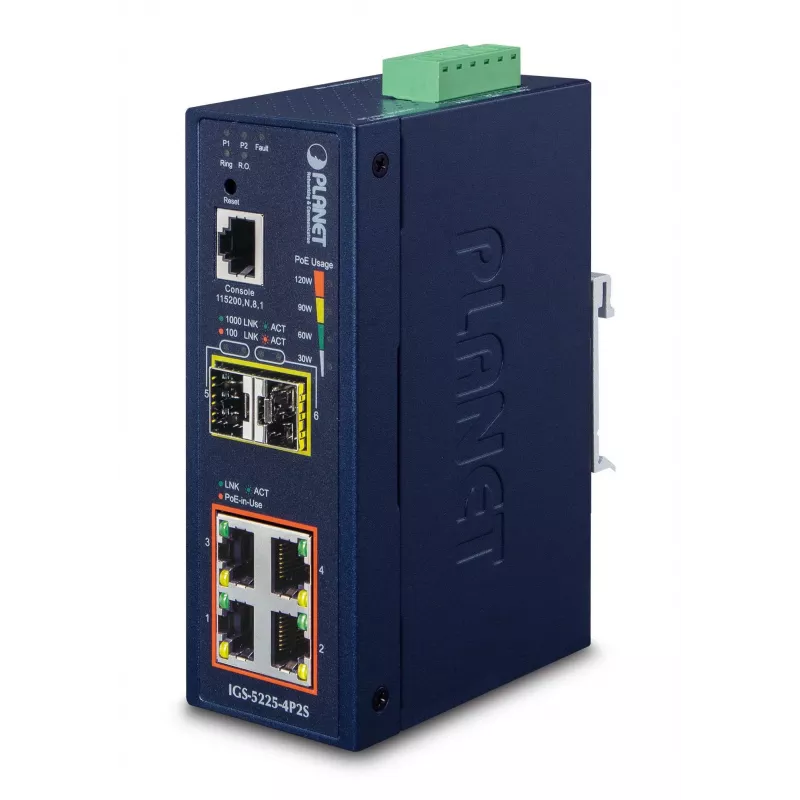

PLANET IGS-5225-4P2S is an industrial L2+ managed Gigabit Ethernet switch in a compact IP40 rugged case. It provides 4 10/100/1000BASE-T PoE+ ports (each up to 36 W) and 2 100/1000X fiber ports, a switching capacity of 12 Gbit/s and an 8K MAC address table. Designed for harsh environments, the switch supports IPv4/IPv6 management, Layer 3 static routing, Modbus TCP integration and IEEE 1588 timing, and operates reliably from -40 to 75 °C.

Advantages

The IGS-5225-4P2S offers rapid ring recovery with ITU-T G.8032 ERPS and MSTP, enhanced cybersecurity with SSH/SSL and SNMPv3 management, and smart ONVIF detection for convenient IP camera handling. Built-in PoE management features include PD alive check, scheduled power recycling, PoE scheduling and usage monitoring. Additional strengths are flexible SFP extension slots with DDM support and comprehensive Layer 2–4 QoS and ACL capabilities for secure, segmented networks.

Suitable for

• Outdoor/industrial IP surveillance systems
• Industrial wireless access point deployments
• Small factory automation networks with Modbus TCP/SCADA integration
• Edge switching in harsh temperature environments
• Secure VLAN-segmented corporate or campus networks

Key specifications

• Ports: 4 x Gigabit PoE+ (802.3at, up to 36 W per port), 2 x 100/1000X fiber
• Switching capacity: 12 Gbit/s; MAC table: 8,000 entries
• Power input: 48–56 V DC via terminal block; redundant power input supported
• Environmental: IP40 enclosure; operating temperature -40 to 75 °C
• Management: Web GUI, Telnet/console, SNMPv3, IPv4/IPv6
• Protocols/features: G.8032 ERPS, MSTP (802.1s), 802.1Q VLANs (up to 255), L3 static routing, QoS, ACL, 1588v2, Modbus TCP
• SFP: 4 mini-GBIC slots (100BASE-FX / 1000BASE-SX/LX), SFP-DDM support
• Weight & color: 0.61 kg, blue

How to use

Mount the IGS-5225-4P2S on wall or DIN rail according to the installation guide, connect DC power to the terminal block and link devices to the RJ-45 PoE ports or fiber ports. Access the switch through the Web GUI, console or SNMP for initial configuration: set up VLANs, static routes, PoE schedules and ring topology (G.8032) as required. Use the ONVIF discovery from the GUI to locate connected IP cameras and configure PoE reboot or scheduled recycling for powered devices.

Recommendations

For reliable operation in industrial settings, use appropriate SFP transceivers rated for your fiber distance and maintain redundant power sources. Configure ERPS or MSTP for ring topologies, enable SNMPv3/SSH for secure remote management, and use PoE schedule and PD alive check to reduce downtime and save power.
